PARTS > DECKS MANUALS > 2003-08-01, 5000-10 > Fastener Loctite Application and Torque Instructions:

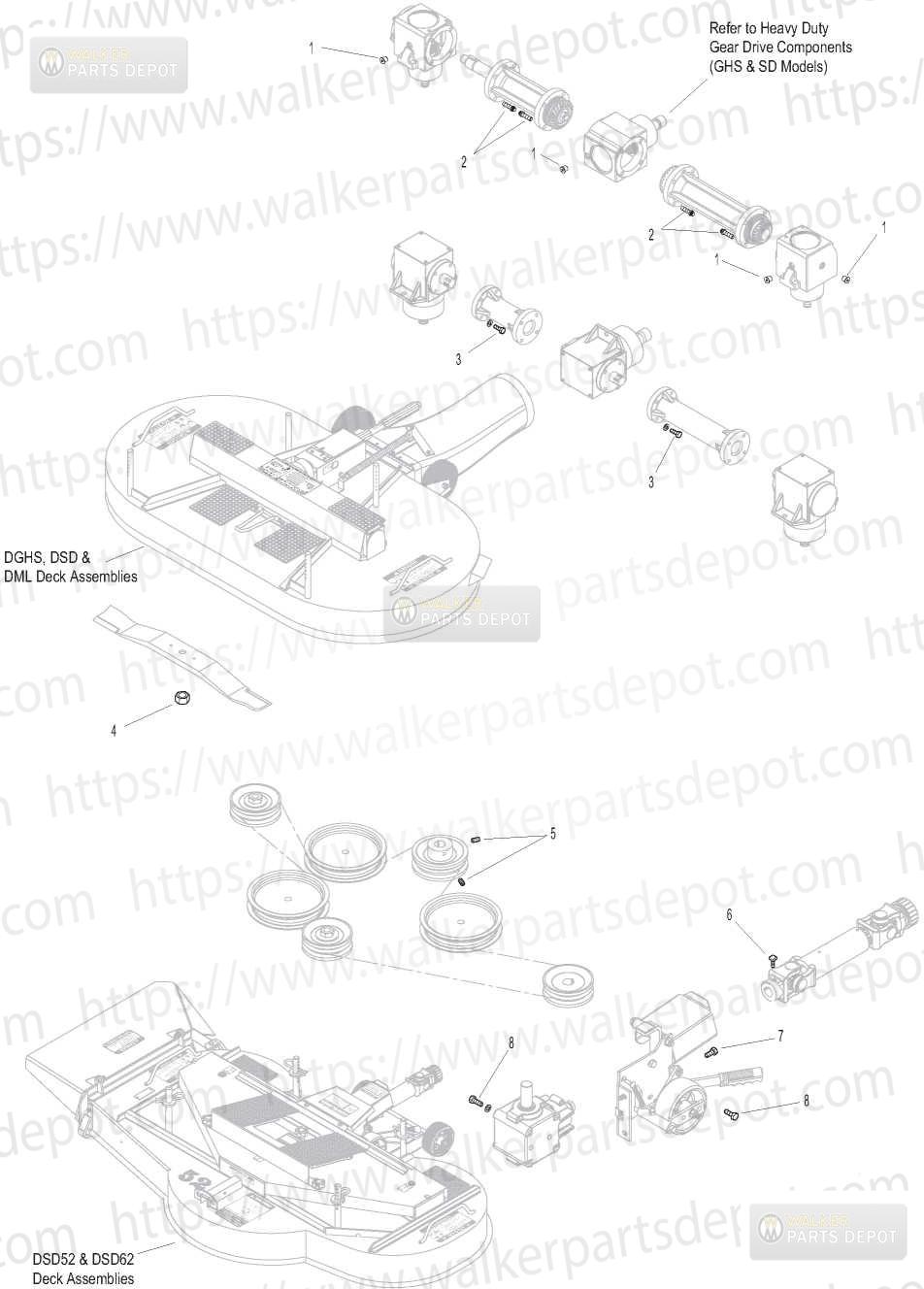

Diagram #	Part #	Description	Price	Add to Cart
1		Torque P/N VR009 (Plug, O-Ring used on Heavy Duty Gear Boxes to 125 in-lb (14.4 N-m). DO NOT apply Loctite?.
2		Apply Loctite? Threadlocker # 277 (Red) to P/N VR007, VR008 (Screw 3/4? Long, Screw 1? Long used on Heavy Duty Gearbox Connector Tubes). Torque to 300 in-lb (34.7 N-m).
3		Apply Loctite? Threadlocker # 242 (Blue) to P/N F211 (1 /4-20 x 7/8 Hex Bolt, used on Gearbox Connector Tubes) prior to assembly. Torque to 90 in-lb (10.2 N-m).
4		Torque P/N F018 (5/8-18 Hex Nut, used on underside of blades) to 60 ft-lb (81.4 N-m). DO NOT apply Loctite?.
5		Apply Loctite? Threadlocker # 242 (Blue) to P/N F114 (5/16-18 x 5/8 SQH Set Screw, used on Drive Pulley) prior to assembly. Torque to 190 in-lb (21.5 N-m).
6		Apply Loctite? Threadlocker # 242 (Blue) to P/N F076 (3/8-16 x 5/8 SQH Set Screw, used on U-Joint Shaft Assy, T-Scope) prior to assembly. Torque to 400 in-lb (45.2 N-m).
7		Torque P/N F339 (5/16-18 x 3/4 Self-Tapping Bolt, used on Mount Braket & PTO Guard) to 200 in-lb (22.6 N-m). DO NOT apply Loctite?.
8		Apply Loctite? Threadlocker # 242 (Blue) to P/N F226 (5/16-18 x 7/8 Hex Bolt, used on Right Angle Gearbox) prior to assembly. Torque to 18 ft-lb (24.4 N-m).
