PARTS > DECKS MANUALS > 2008-08-01, 5000-19 > Fastener Loctite Application and Torque Instructions:

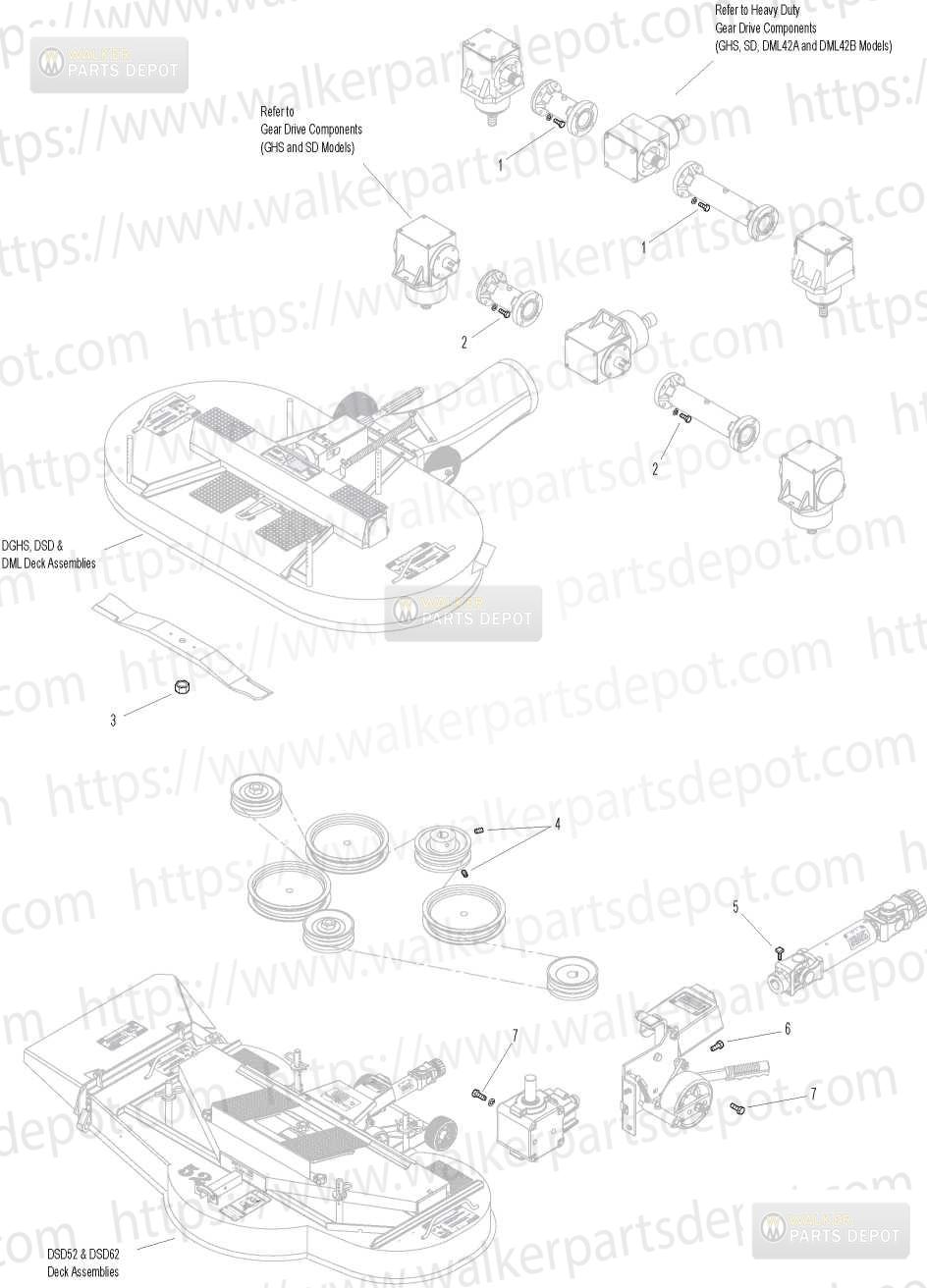

Diagram #	Part #	Description	Price	Add to Cart
1		Apply Loctite? Threadlocker # 277 (Red) to Item # 1 used on Heavy Duty Gearbox Connector Tubes. Torque to 115 in-lb (13.0 N-m).
2		Apply Loctite? Threadlocker # 242 (Blue) to P/N F211 (1/4-20 x 7/8 Hex Bolt, used on Gearbox Connector Tubes) prior to assembly. Torque to 90 in-lb (10.2 N-m).
3		Torque P/N F018 (5/8-18 Hex Nut, used on underside of blades) to 60 ft-lb (81.4 N-m). DO NOT apply Loctite?.
4		Apply Loctite? Threadlocker # 242 (Blue) to P/N F114 (5/16-18 x 5/8 SQH Set Screw, used on Drive Pulley) prior to assembly. Torque to 190 in-lb (21.5 Nm).
5		Apply Loctite? Threadlocker # 242 (Blue) to P/N F076 (3/8-16 x 5/8 SQH Set Screw, used on U-Joint Shaft Assy, T-Scope) prior to assembly. Torque to 400 in-lb (45.2 Nm).
6		Torque P/N F339 (5/16-18 x 3/4 Self-Tapping Bolt, used on Mount Braket & PTO Guard) to 200 in-lb (22.6 Nm). DO NOT apply Loctite?.
7		Apply Loctite? Threadlocker # 242 (Blue) to P/N F226 (5/16-18 x 7/8 Hex Bolt, used on Right Angle Gearbox) prior to assembly. Torque to 18 ft-lb (24.4 Nm).
