Part Lookup Tool

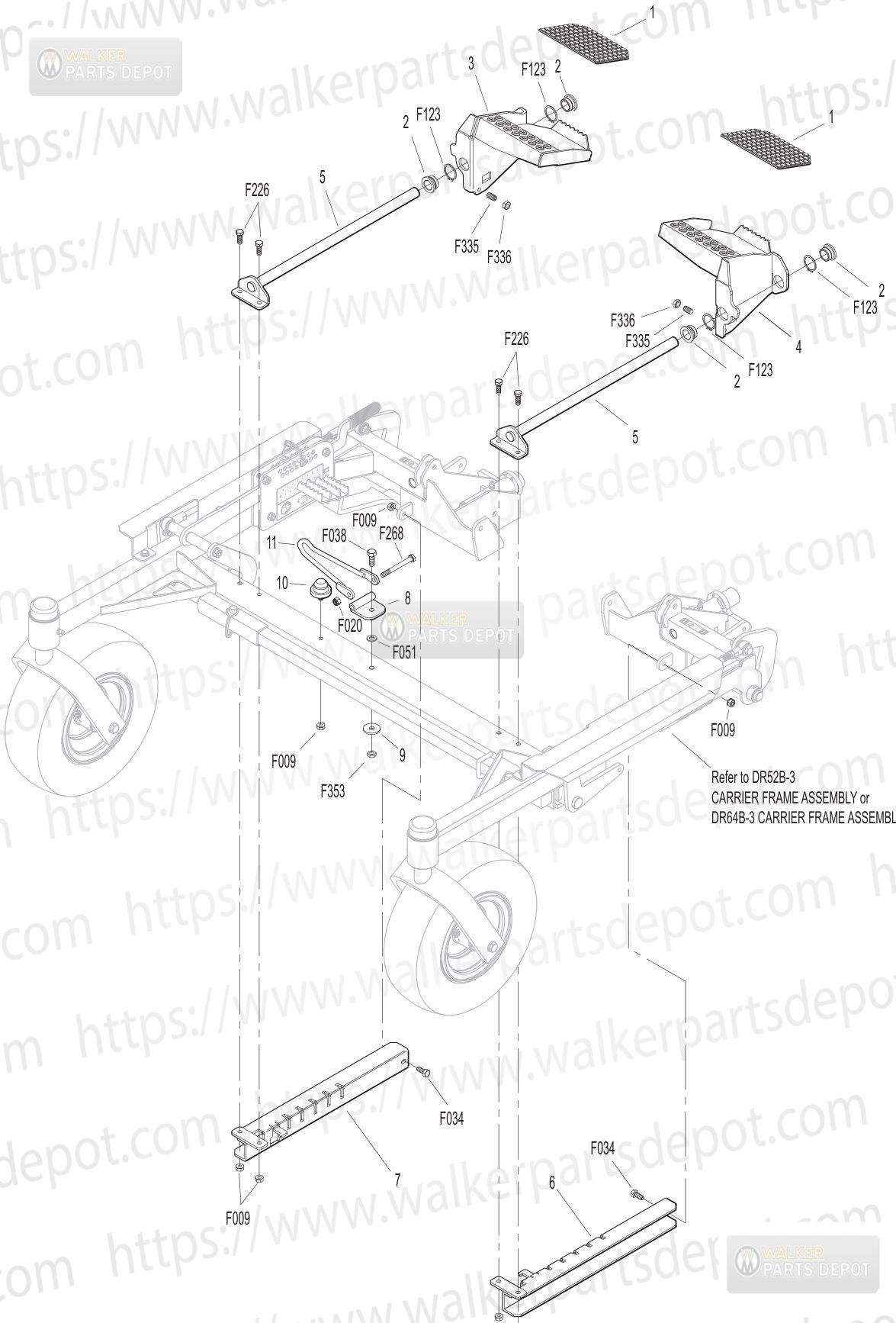

PARTS > DECKS MANUALS > 2023-11-02, 5000-77 > Footrest Components:

Diagram #	Part #	Description	Price	Add to Cart
1	8735-11	Rubber Mat (4 x 6)
2	2724-17	Guide Rod Bushing	$21.20	Add to Cart
3	2786-12	Footrest, RH (Includes
4	2786-11	Footrest, LH (Includes
5	2786-10	Adjustable Footrest Rod
6	2786-15	Footrest Lock Channel,
7	2786-14	Footrest Lock Channel,
8	8670-14	TiltUp Hook Base	$12.91	Add to Cart
9	5841	Retainer Washer 38x114	$1.42	Add to Cart
10	5845-1	Rubber Latch
11	8670-13	TiltUp HookDR64	$19.87	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F020	51618 ESNA Nut	$0.34	Add to Cart
	F034	51618x34 Hex Bolt	$0.79	Add to Cart
	F038	3816x1 Hex Bolt	$1.06	Add to Cart
	F051	38 SAE Washer	$0.65	Add to Cart
	F123	1 External Snap Ring	$1.27	Add to Cart
	F226	51618x78 Hex Bolt	$0.78	Add to Cart
	F268	51618x3 Hex Bolt	$1.97	Add to Cart
	F335	3816x78 Set ScrewSS	$2.71	Add to Cart
	F336	3816 Jam Nut	$0.34	Add to Cart
	F353	3816 ESNA LP Nut	$0.50	Add to Cart
