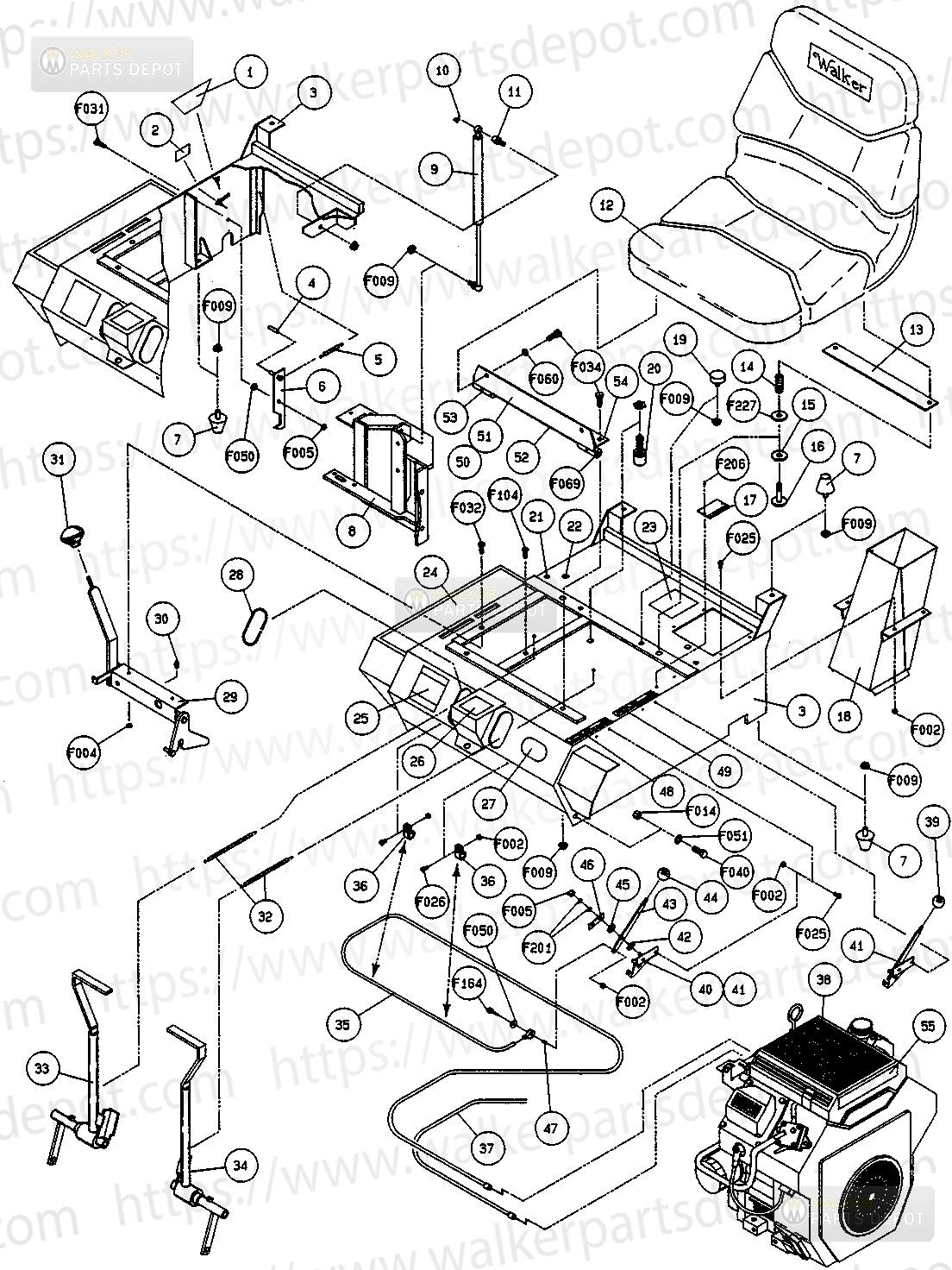

PARTS > MT MANUALS > 1993-03-01, 8895-1, Serial 12717-21328 > Front Body Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	5806	(NR) Decal Blade Clutch	$2.62	Add to Cart
2	7820	(NR) Decal Body Release/Lexan	$0.94	Add to Cart
3	8100	Front Body/T	$589.09	Add to Cart
4	7854	Plastic Tip/Red	$0.50	Add to Cart
5	7222	Extension Spring (1/4x3)	$6.96	Add to Cart
6	7383-1	Body Latch Hook	$7.18	Add to Cart
7	5845	Rubber Bumper (1.50x1.25)	$7.12	Add to Cart
8	7209	Bridge Assembly (MD/MT)
9	7145	Gas Spring Assembly	$39.60	Add to Cart
10	5147	Spring Clip	$1.02	Add to Cart
11	5146	10mm Ball Stud	$3.77	Add to Cart
12	5103	(NR) Seat	$240.48	Add to Cart
13	7203	Seat Spring Plate
14	7223	Compression Spring (Seat)
15	7846	Washer (3/8x1-1/4x1/8)	$8.06	Add to Cart
16	7204	Shoulder Bolt Seat Mount	$7.07	Add to Cart
17	6839	Body ID Plate
18	7530	Body Chute Assembly*
19	7845	Rubber Bumper (1.375X.63)	$4.80	Add to Cart
20	5941	Safety Switch (NC)	$26.64	Add to Cart
21	5989-3	Dome Plug (5/16)	$0.30	Add to Cart
22	5989-4	Dome Plug (3/8)	$0.30	Add to Cart
23	5804	Decal, Blower Blade Warning*
24	7802	RH Fender Decal
25	7818	(NR) Decal Read Manual/Lexan	$3.65	Add to Cart
26	5856	(NR) Decal Made In USA	$1.30	Add to Cart
27	5803	(NR) Decal- Walker Mfg./Lexan	$5.66	Add to Cart
28	5180	Edge Molding/Lvr Opening	$3.43	Add to Cart
29	7170	(NR) FSC Lever Assembly	$71.27	Add to Cart
30	5830	Grease Fitting 1/4-28	$2.47	Add to Cart
31	5862	(NR) FSC Knob	$9.56	Add to Cart
32	5223	Ext. Spring (1/4x5-1/2)	$6.00	Add to Cart
33	5450-2	(OB)Steering Lever/RH Tech Services	$48.73	Add to Cart
34	5451-2	(OB) Steering Lever/LH Tech Services	$48.73	Add to Cart
35	8108-3	(NR) Throttle Cable	$22.90	Add to Cart
36	5832	Cable Clamp (1/2) .203 Hole	$1.87	Add to Cart
37	8108-4	"Control Cable (58"")"	$14.49	Add to Cart
38	NS	20-HP Engine (Kohler CH20S, Spec #64511)
39	5108-6	(NR) Choke Cntrl Knob/Black	$5.74	Add to Cart
40	5108-8	Control Bracket	$9.26	Add to Cart
41	7108	Control Assembly	$30.21	Add to Cart
	8108	(NR) Throttle Cntrl&Cable Assy	$50.63	Add to Cart
	8109	(NR) Choke Cntrl & Cable Assy	$42.42	Add to Cart
42	5108-11	Friction Washer (.062)	$1.44	Add to Cart
43	5108-1	Control Lever Throttle/Choke	$4.44	Add to Cart
44	5108-5	(NR) Throttle Cntrl Knob/Red	$6.05	Add to Cart
45	5108-10	Friction Washer (.125)	$1.98	Add to Cart
46	5108-7	Control Lock Tab	$2.52	Add to Cart
47	5172	Bearing Delrin (.250x.375x.250 Length)	$4.96	Add to Cart
48	7819	Throttle Decal
49	8819	(NR) Decal Choke	$3.19	Add to Cart
50	7205	Seat Hinge Assembly
51	7205-2	Upper Plate, Seat Hinge
52	7205-5	Pivot Pin, Seat Hinge
53	5103-2	Pivot Bushing (5/16ID)	$4.56	Add to Cart
54	7205-1	Lower Plate, Seat Hinge
55	5855	(NR) Decal Engine Cooling	$2.71	Add to Cart
F002	F002	10-24 Keps Nut	$0.18	Add to Cart
F004	F004	1/4-20 Keps Nut	$0.34	Add to Cart
F005	F005	1/4-20 ESNA Nut	$0.34	Add to Cart
F009	F009	5/16-18 Whiz Locknut	$0.50	Add to Cart
F014	F014	3/8-16 ESNA Nut	$0.65	Add to Cart
F025	F025	10-24x3/8 PPHMS	$0.18	Add to Cart
F026	F026	10-24x1/2 PPHMS	$0.18	Add to Cart
F031	F031	1/4-20x5/8 Hex Bolt	$0.50	Add to Cart
F032	F032	1/4-20x3/4 Hex Bolt	$0.50	Add to Cart
F034	F034	5/16-18x3/4 Hex Bolt	$0.79	Add to Cart
F040	F040	3/8-16x1-1/2 Hex Bolt	$1.54	Add to Cart
F050	F050	1/4 SAE Washer	$0.18	Add to Cart
F051	F051	3/8 SAE Washer	$0.65	Add to Cart
F060	F060	AN960516 Washer	$0.29	Add to Cart
F069	F069	3/32x1/2 Cotter Pin	$0.18	Add to Cart
F104	F104	1/4-20x3/4 PFH Bolt	$0.22	Add to Cart
F164	F164	10-24x1/4x3/8 SHL Bolt	$2.95	Add to Cart
F201	F201	SU F642 1 4 Belleville Spg Washer	$1.75	Add to Cart
F206	F206	#2x3/16 Drive Pin	$0.18	Add to Cart
F227	F227	3/8x1-1/4x1/8 Plastic Shoulder Washer	$8.10	Add to Cart
