Part Lookup Tool

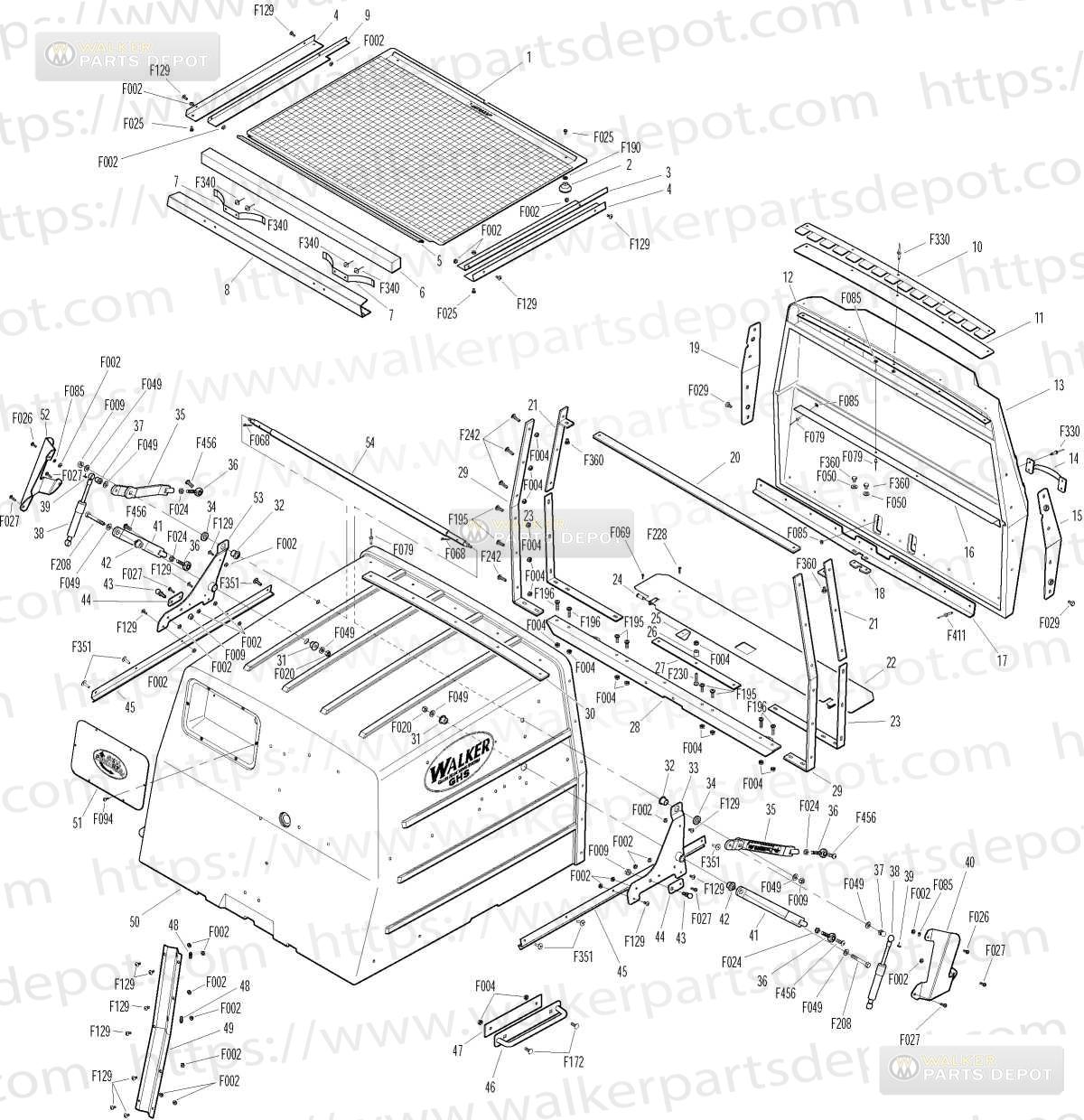

PARTS > MC MANUALS > 2010-06-15, 6000-14, Serial 100982-125717 > GHS 10.0 Bushel Catcher Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	7512-2	Rmvbl Screen 3 16 Hole	$80.96	Add to Cart
2	7506	KnobThrded Insrt 1024	$7.82	Add to Cart
3	8606-3	Channel Top 100LH	$6.91	Add to Cart
4	8606-2	Channel Bottom 70100	$10.25	Add to Cart
5	7856-1	NR Edge Molding 26	$5.66	Add to Cart
6	7507	Screen Seal 2712	$8.78	Add to Cart
7	7505	Mustache Spring	$11.11	Add to Cart
8	8606	CChannel 100	$11.59	Add to Cart
9	8606-4	Channel Top 100RH	$6.91	Add to Cart
10	8607-6	Upper Seal Support	$15.16	Add to Cart
11	8607-5	Upper Door Seal	$8.90	Add to Cart
12	8607-11	Backup Plate	$4.56	Add to Cart
13	8512-3	10.0 Catcher Box Door/White	$157.84	Add to Cart
14	5583	Handle	$11.81	Add to Cart
15	8607-1	Door MountLH	$35.68	Add to Cart
16	8607-12	Upper Door Stiffener	$12.60	Add to Cart
17	8607-7	Lower Door Stiffener 100	$36.43	Add to Cart
18	8607-8	Door Guide	$8.16	Add to Cart
19	8607-2	Door MountRH	$35.68	Add to Cart
20	8608-5	Center Strap 100 Threaded Holes	$25.37	Add to Cart
21	8608-3	Upper Frame Doubler	$20.28	Add to Cart
22	8610-1	NR Catcher Dump Plate MC100	$50.64	Add to Cart
23	8608-2	Lower Frame Doubler	$17.68	Add to Cart
24	5281-5	Clevis Pin 14x080	$1.37	Add to Cart
25	7610-1	NR Dump Plate Slide	$6.43	Add to Cart
26	8608-11	Catcher Door Finger	$7.30	Add to Cart
27	8608-4	Center Frame Doubler	$7.85	Add to Cart
28	8608-6	Catcher Mount 100	$53.99	Add to Cart
29	8608-1	Outside Box Strap	$29.48	Add to Cart
30	7584	Reinforcing Strap 100	$24.20	Add to Cart
31	5103-5	Pivot Bushing Inner	$6.28	Add to Cart
32	7620-3	Pivot Bushing 12x916	$10.49	Add to Cart
33	8608-7	Hinge PlateLH	$34.17	Add to Cart
34	5103-7	Outside Torsion Bushing	$8.71	Add to Cart
35	8607-4	Upper Arm	$47.30	Add to Cart
36	5214-12	Ball Joint 51624	$10.31	Add to Cart
37	5155-12	516 Ball Stud	$3.00	Add to Cart
38	5155-4	Gas Spring	$20.87	Add to Cart
39	5147	Spring Clip	$1.02	Add to Cart
40	8155-1	Gas Spring CoverLH	$23.94	Add to Cart
41	8607-3	Lower Arm	$29.52	Add to Cart
42	5103-6	Pivot Bushing Outer	$10.44	Add to Cart
43	5155-13	10mm Ball Stud 51618 34 Thread	$3.19	Add to Cart
44	5523-6	Gas Spring Plate	$3.12	Add to Cart
45	8608-10	Box SupportGas Spring10	$11.12	Add to Cart
46	7532	Handle, Catcher Lift
47	7533	NR Backing Plate Handle	$4.63	Add to Cart
48	5977	Grommet 12x78x116	$3.56	Add to Cart
49	8117	Wire Harness Channel	$9.31	Add to Cart
50	8602-1	10.0 Catcher W/O Powerfil? (Includes Door)*
	8602-2	10.0 Catcher W/Powerfil? (Includes Door) *
	8610-2	10.0 Bushel Catcher Box
51	8607-9	Powerfil Cover Plate	$14.59	Add to Cart
52	8155-2	Gas Spring CoverRH	$16.87	Add to Cart
53	8608-8	Hinge PlateRH	$34.17	Add to Cart
54	8608-9	Torsion Bar	$45.45	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F020	51618 ESNA Nut	$0.34	Add to Cart
	F024	51624 Jam Nut	$0.34	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F026	1024x12 PPHMS	$0.18	Add to Cart
	F027	1024x58 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F049	516 SAE Washer	$0.18	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F068	18x1 Cotter Pin	$0.18	Add to Cart
	F069	332x12 Cotter Pin	$0.18	Add to Cart
	F079	66AAD Alum Pop Rivet 316 Diax 38 Grip	$0.65	Add to Cart
	F085	316 Rivet Backup Washer	$0.44	Add to Cart
	F094	832x12 PTHMS	$0.18	Add to Cart
	F129	1024x12 PTHMS	$0.34	Add to Cart
	F172	1420x34 Carriage Bolt	$0.50	Add to Cart
	F190	#10 Internal Star Lock Washer
	F195	1420x34 PPHMSSS	$1.18	Add to Cart
	F196	1420x1 PPHMSSS	$1.66	Add to Cart
	F208	51618x214 Hex Bolt	$1.54	Add to Cart
	F228	6x58 PPHSMS SS	$0.34	Add to Cart
	F230	1420x114 PPHMSSS	$1.87	Add to Cart
	F242	1420x78 PPHMS SS	$1.30	Add to Cart
	F330	316Dx2132L RivetSS STST68D	$2.06	Add to Cart
	F340	316x14 SemiTube Rivet	$0.56	Add to Cart
	F351	Aluminum Pop Rivet	$0.94	Add to Cart
	F360	1420x38 Hex Bolt	$0.94	Add to Cart
	F411	316 Bulbex Rivet	$1.68	Add to Cart
	F456	51618x34 SBH Cap Screw SS	$1.97	Add to Cart
