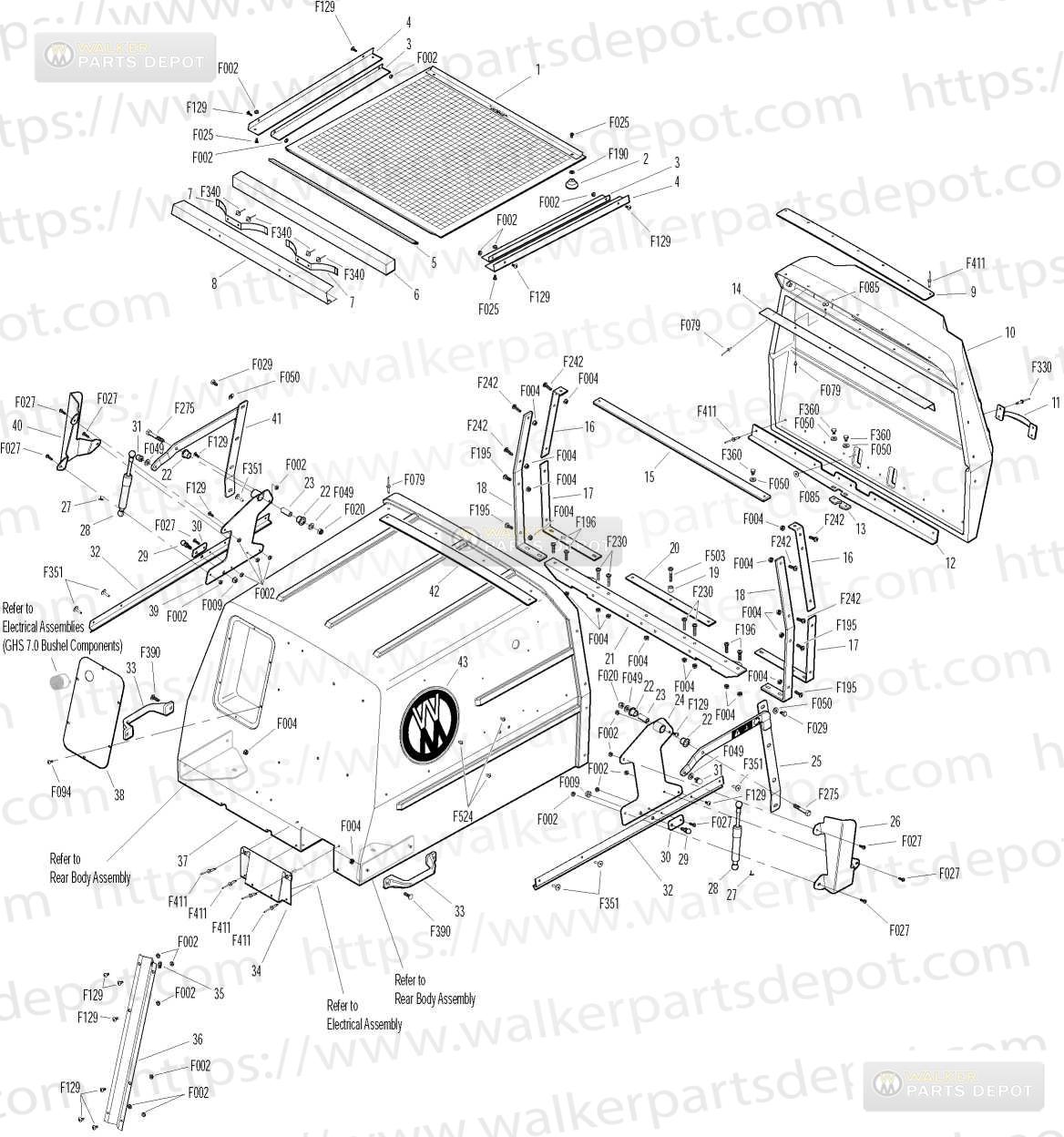

PARTS > MC MANUALS > 2013-11-25, 6000-17, Serial 125718-140306 > GHS 7.0 Bushel Catcher Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	7512-6	Removable Screen 3 16 Hole 7 0 Gray Box	$90.93	Add to Cart
2	7506	KnobThrded Insrt 1024	$7.82	Add to Cart
3	7509-2	Channel Top	$5.11	Add to Cart
4	8606-2	Channel Bottom 70100	$10.25	Add to Cart
5	6856-1	Edge Molding 2134	$5.04	Add to Cart
6	6507	Screen Seal 2314	$11.46	Add to Cart
7	7505	Mustache Spring	$11.11	Add to Cart
8	7509-6	CChannel WSpring 70	$36.04	Add to Cart
9	7607-3	Upper Door Seal	$13.20	Add to Cart
10	7510-4	70 Catcher Box DoorGray	$336.63	Add to Cart
11	5583	Handle	$11.81	Add to Cart
12	7607-6	Lower Door Stiffener (7.0)
13	8607-8	Door Guide	$8.16	Add to Cart
14	7607-5	Upper Door Stiffener
15	7503-7	Center Strap 70	$18.24	Add to Cart
16	7503-6	Upper Frame Doubler 70	$8.59	Add to Cart
17	7503-5	Lower Frame Doubler (7.0)
18	7503-4	Outside Box Strap (7.0)
19	8608-11	Catcher Door Finger	$7.30	Add to Cart
20	8608-4	Center Frame Doubler	$7.85	Add to Cart
21	7503-11	Catcher Mount 70	$71.48	Add to Cart
22	7620-3	Pivot Bushing 12x916	$10.49	Add to Cart
23	7607-7	Bushing 5x313x1190	$11.22	Add to Cart
24	7608-1	Hinge Plate, LH
25	7607-13	Catcher Door Arm LH	$50.78	Add to Cart
26	8155-5	Gas Spring Cover 70LH	$15.69	Add to Cart
27	5147	Spring Clip	$1.02	Add to Cart
28	5155-5	Gas Spring	$15.85	Add to Cart
29	5155-13	10mm Ball Stud 51618 34 Thread	$3.19	Add to Cart
30	5523-6	Gas Spring Plate	$3.12	Add to Cart
31	5155-12	516 Ball Stud	$3.00	Add to Cart
32	5155-15	Box Support Gas Spring	$7.61	Add to Cart
33	7532-1	Handle Catcher Lift	$19.05	Add to Cart
34	7511-6	Chute Cover	$42.06	Add to Cart
35	5976	Grommet 38x1116	$1.08	Add to Cart
36	7557-1	7.0. Wire Harness Channel
37	7510-2	70 Catcher Box WFrmGrayMC	$652.05	Add to Cart
	7502-5	70 Catcher Assy WPowerfil Gray Catcher Box MC	$2,650.00	Add to Cart
38	7607-8	Powerfil? Cover Plate
39	7608-2	Hinge Plate, RH
40	8155-4	7.0 Gas Spring Cover, RH
41	7607-12	Catcher Door Arm RH	$58.46	Add to Cart
42	7584-3	Reinforcing Strap
43	5801-3	Decal Plate Round Set	$30.95	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F020	51618 ESNA Nut	$0.34	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F027	1024x58 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F049	516 SAE Washer	$0.18	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F079	66AAD Alum Pop Rivet 316 Diax 38 Grip	$0.65	Add to Cart
	F085	316 Rivet Backup Washer	$0.44	Add to Cart
	F094	832x12 PTHMS	$0.18	Add to Cart
	F129	1024x12 PTHMS	$0.34	Add to Cart
	F190	#10 Internal Star Lock Washer
	F195	1420x34 PPHMSSS	$1.18	Add to Cart
	F196	1420x1 PPHMSSS	$1.66	Add to Cart
	F230	1420x114 PPHMSSS	$1.87	Add to Cart
	F242	1420x78 PPHMS SS	$1.30	Add to Cart
	F275	51618x2 Hex Bolt	$1.42	Add to Cart
	F330	316Dx2132L RivetSS STST68D	$2.06	Add to Cart
	F340	316x14 SemiTube Rivet	$0.56	Add to Cart
	F351	Aluminum Pop Rivet	$0.94	Add to Cart
	F360	1420x38 Hex Bolt	$0.94	Add to Cart
	F390	1420x78 Carriage Bolt	$0.65	Add to Cart
	F411	316 Bulbex Rivet	$1.68	Add to Cart
	F503	1420x112 PPHMSSS	$1.86	Add to Cart
	F524	316x38 Aluminum RivetBlack Grip Range 251375	$0.56	Add to Cart
