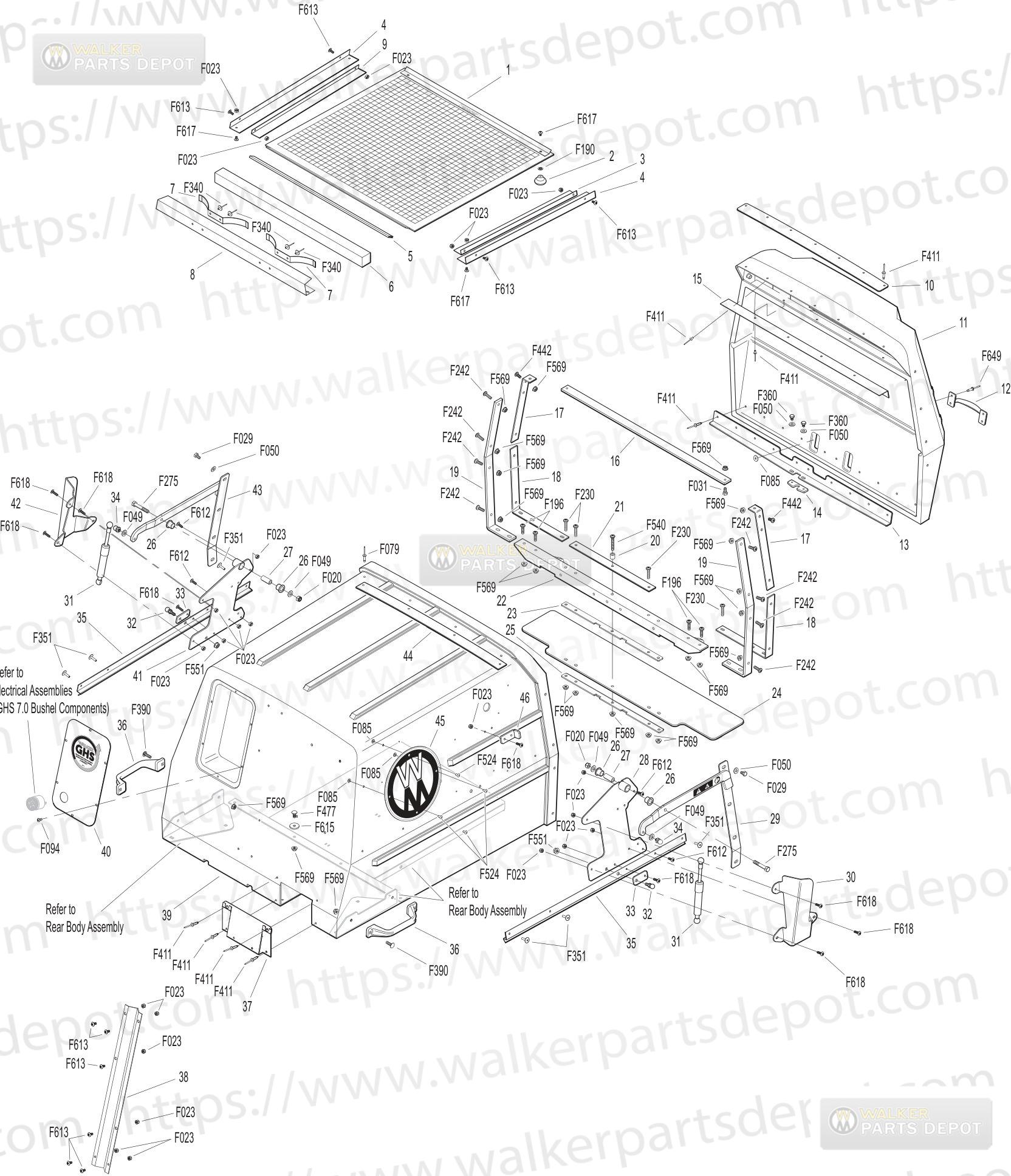

PARTS > MS MANUALS > 2024-04-23, 5000-81, Serial 181152-190348 > GHS 7.0 Bushel Catcher Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	7512-12	Removable Screen 316 Hole 70 Gray Box	$129.26	Add to Cart
2	7506	KnobThrded Insrt 1024	$7.82	Add to Cart
3	7509-7	Channel TopLH	$6.28	Add to Cart
4	8606-2	Channel Bottom 70100	$10.25	Add to Cart
5	6856-1	Edge Molding 2134	$5.04	Add to Cart
6	6507	Screen Seal 2314	$11.46	Add to Cart
7	7505	Mustache Spring	$11.11	Add to Cart
8	7509-6	CChannel WSpring 70	$36.04	Add to Cart
9	7509-8	Channel TopRH	$6.28	Add to Cart
10	7607-3	Upper Door Seal	$13.20	Add to Cart
11	7510-4	70 Catcher Box DoorGray	$336.63	Add to Cart
12	5583	Handle	$11.81	Add to Cart
13	7607-6	Lower Door Stiffener (7.0)
14	8607-8	Door Guide	$8.16	Add to Cart
15	7607-5	Upper Door Stiffener
16	7503-8	Center Strap 70	$19.37	Add to Cart
17	7503-6	Upper Frame Doubler 70	$8.59	Add to Cart
18	7503-5	Lower Frame Doubler (7.0)
19	7503-4	Outside Box Strap (7.0)
20	8608-11	Catcher Door Finger	$7.30	Add to Cart
21	8608-4	Center Frame Doubler	$7.85	Add to Cart
22	7503-11	Catcher Mount 70	$71.48	Add to Cart
23	7610-4	Catcher Dump Flap Spacer 70	$11.59	Add to Cart
24	7610-9	"Catcher Dump Flap 70"	$35.20	Add to Cart
25	8610-3	Backing PlateDump Flap	$16.51	Add to Cart
26	7620-3	Pivot Bushing 12x916	$10.49	Add to Cart
27	7607-7	Bushing 5x313x1190	$11.22	Add to Cart
28	7608-3	Hinge PlateLH	$41.56	Add to Cart
29	7607-15	Catcher Door Arm LH	$51.68	Add to Cart
30	8155-7	Gas Spring Cover 70LH	$24.27	Add to Cart
31	5155-5	Gas Spring	$15.85	Add to Cart
32	5155-13	10mm Ball Stud 51618 34 Thread	$3.19	Add to Cart
33	5523-6	Gas Spring Plate	$3.12	Add to Cart
34	5155-12	516 Ball Stud	$3.00	Add to Cart
35	5155-15	Box Support Gas Spring	$7.61	Add to Cart
36	7532-1	Handle Catcher Lift	$19.05	Add to Cart
37	7511-6	Chute Cover	$42.06	Add to Cart
38	7557-1	7.0 Wire Harness Channel
39	7510-3	70 Catcher Box WFrmGrayMS	$656.88	Add to Cart
	7502-6	NR70Catcher Assy WPowerfil Gray Catcher Box MS	$2,650.00	Add to Cart
40	7607-8	Powerfil Cover Plate
41	7608-4	Hinge PlateRH	$41.56	Add to Cart
42	8155-8	Gas Spring Cover 70RH	$24.27	Add to Cart
43	7607-14	Catcher Door Arm RH	$51.68	Add to Cart
44	7584-3	Reinforcing Strap
45	5801-4	Decal Plate Kit	$26.05	Add to Cart
46	7608-5	Door Arm Stop	$8.45	Add to Cart
	5598-2	Dump Bag 100	$89.71	Add to Cart
	F020	51618 ESNA Nut	$0.34	Add to Cart
	F023	1024 ESNA Nut	$0.34	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F031	1420x58 Hex Bolt	$0.50	Add to Cart
	F049	516 SAE Washer	$0.18	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F079	66AAD Alum Pop Rivet 316 Diax 38 Grip	$0.65	Add to Cart
	F085	316 Rivet Backup Washer	$0.44	Add to Cart
	F094	832x12 PTHMS	$0.18	Add to Cart
	F190	#10 Internal Star Lock Washer
	F196	1420x1 PPHMSSS	$1.66	Add to Cart
	F230	1420x114 PPHMSSS	$1.87	Add to Cart
	F242	1420x78 PPHMS SS	$1.30	Add to Cart
	F275	51618x2 Hex Bolt	$1.42	Add to Cart
	F340	316x14 SemiTube Rivet	$0.56	Add to Cart
	F351	Aluminum Pop Rivet	$0.94	Add to Cart
	F360	1420x38 Hex Bolt	$0.94	Add to Cart
	F390	1420x78 Carriage Bolt	$0.65	Add to Cart
	F411	316 Bulbex Rivet	$1.68	Add to Cart
	F442	1420x58 PTHMS	$0.31	Add to Cart
	F477	1420x58 Carriage Bolt	$1.30	Add to Cart
	F524	316x38 Aluminum RivetBlack Grip Range 251375	$0.56	Add to Cart
	F540	1420x134 PPHMSSS	$2.26	Add to Cart
	F551	51618 Flange Top Lock Nut	$1.06	Add to Cart
	F569	1420 Flange Top Lock Nut	$1.20	Add to Cart
	F612	1024x58 Truss Head Torx	$1.30	Add to Cart
	F613	102412 Truss Head Torx	$1.22	Add to Cart
	F615	10 x 255 x 125 Washer	$2.20	Add to Cart
	F617	1024x38 Truss Head Torx	$1.20	Add to Cart
	F618	1024x34 Truss Head Torx	$1.32	Add to Cart
	F649	316x510625 Grip Range SS Rivet Dome Head 610	$2.29	Add to Cart
