Part Lookup Tool

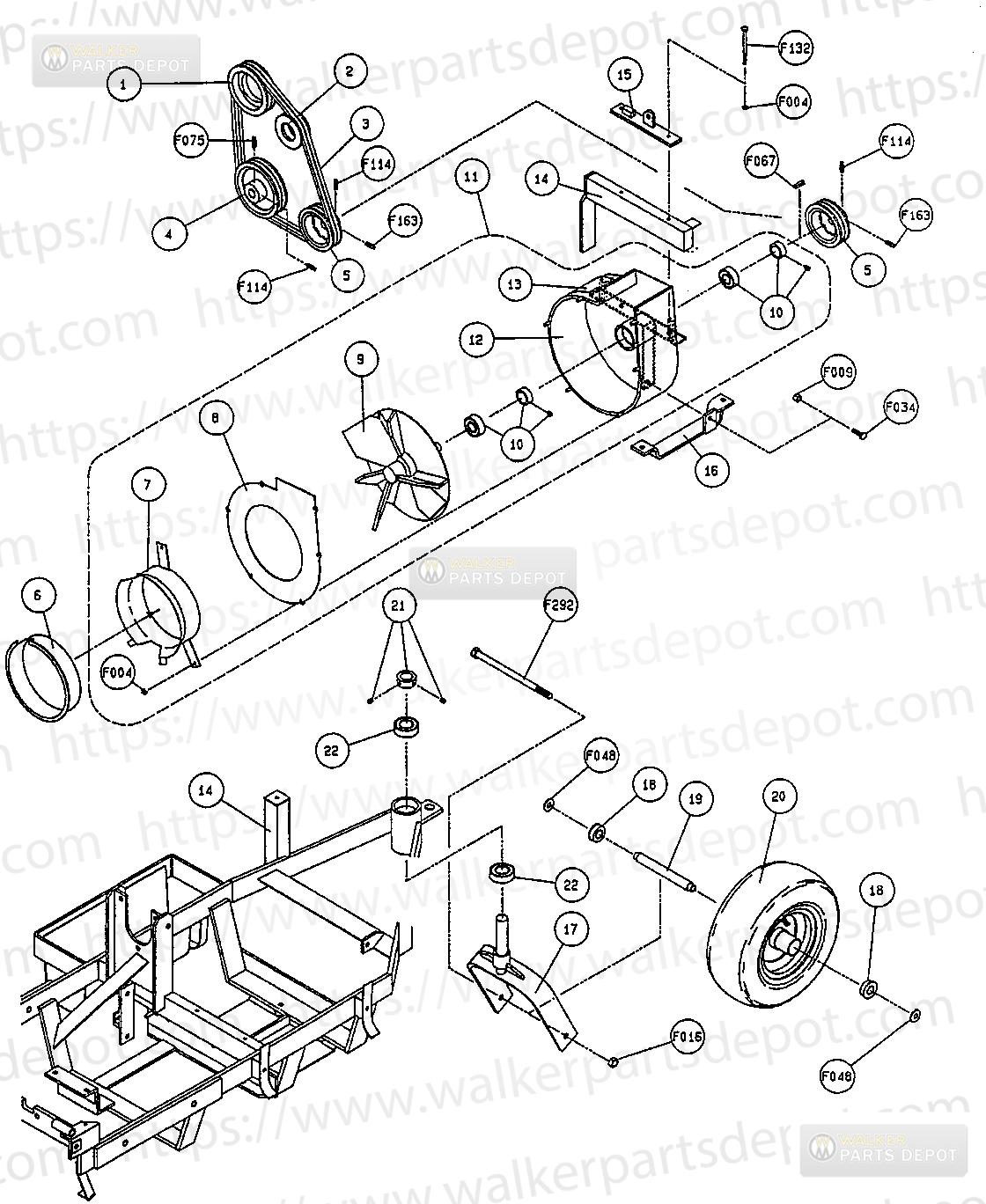

PARTS > MC MANUALS > 1991-07-01, 5895-1, Serial 00000-08612 > GHS Blower MC:

Diagram #	Part #	Description	Price	Add to Cart
1	6242	NR Clutch Pulley 4123V	$59.81	Add to Cart
2	6245	Idler Pulley 33V	$34.39	Add to Cart
3	6230-2	EnginePTO BeltMtchd Set	$30.23	Add to Cart
4	6240-3	NR PTO Drive Pulley 53V	$44.31	Add to Cart
5	6239	NR Blower Pulley 43V	$57.06	Add to Cart
6	5595-2	Intake CoverGHS	$7.82	Add to Cart
7	6526	Blower Intake Tube (6-1/2 x 2-1/2")
8	6525-2	NR Faceplate 10 Blower	$40.37	Add to Cart
9	6545	NR Blower Wheel 10	$150.15	Add to Cart
10	5268	Bearing WCollar 34 BOXED	$52.79	Add to Cart
11	6542	Blower Assembly 10	$412.46	Add to Cart
12	6543	Blower Housing 10	$222.60	Add to Cart
13	5819	NR Decal Blower Maintenance	$1.87	Add to Cart
14	6300	Chassis Frame
15	6346-8	PTO Belt Tghtnr MountGHS	$16.08	Add to Cart
16	6528	NR Skid BarC9197 10	$16.48	Add to Cart
17	5420-2	Tail Wheel Fork	$84.92	Add to Cart
18	5037-1	Bearing Tail Wheel	$7.12	Add to Cart
19	5038-1	Axle Spacer Tube 658	$17.85	Add to Cart
20	5035	Tail Wheel Tire Assy 13x6506	$102.27	Add to Cart
	5036	Tail Wheel Hub 6x45	$84.63	Add to Cart
	5035-1	NR Tail Whl Tire 13x6506	$122.96	Add to Cart
21	5267-1	Retainer Collar 1	$13.52	Add to Cart
22	5270-1	Ball Bearing	$9.20	Add to Cart
F004	F004	1420 Keps Nut	$0.34	Add to Cart
F009	F009	51618 Whiz Locknut	$0.50	Add to Cart
F016	F016	1213 SelfLocking Nut	$1.51	Add to Cart
F034	F034	51618x34 Hex Bolt	$0.79	Add to Cart
F048	F048	12 SAE Washer	$0.50	Add to Cart
F067	F067	316x316x1 Key	$1.99	Add to Cart
F075	F075	51618x12 SQH Set Screw	$0.50	Add to Cart
F114	F114	51618x58 SQH Set Screw	$0.65	Add to Cart
F132	F132	1420x234 Hex Bolt	$1.42	Add to Cart
F163	F163	51618x34 SQH Set Screw	$0.65	Add to Cart
F292	F292	1213x812 Hex BoltGR5	$5.76	Add to Cart
