Part Lookup Tool

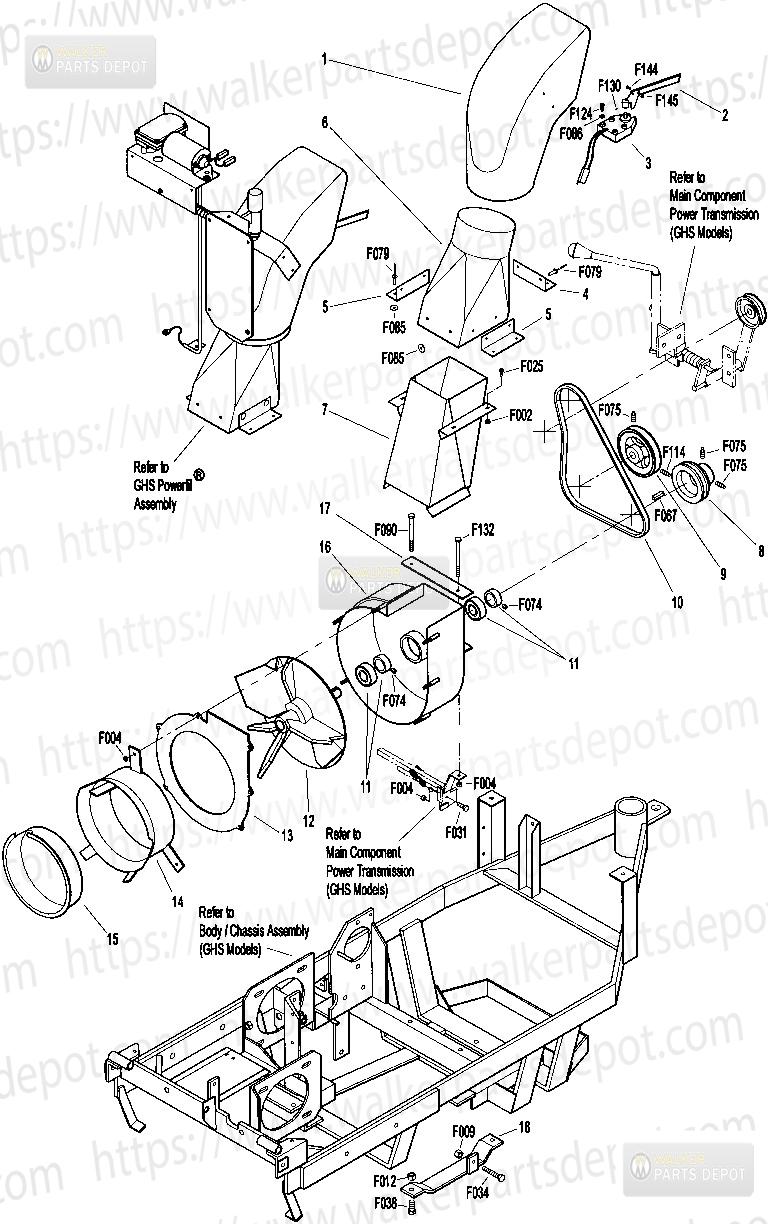

PARTS > MS MANUALS > 1997-11-05, 5000-2, Serial 20381-60135 > GHS Group:

Diagram #	Part #	Description	Price	Add to Cart
1	5515-2	Elbow Delivery Spout	$75.14	Add to Cart
2	5594	Vane Assembly, Grass Pak Switch (Includes Items # F130, F144 & F145)
3	5592	Grass Pak Switch Assembly
4	5578	Rear Clip Chute Mount	$3.96	Add to Cart
5	5577	Side Clip Chute Mount	$4.28	Add to Cart
6	5511-3	6770 Gray Box Delivery Chute WClips	$61.61	Add to Cart
7	5530-3	NR Body Chute9 Blower	$68.29	Add to Cart
8	5239-2	NR Blower Pulley Offset Hub	$52.84	Add to Cart
9	5238-2	NR PTO Drive Pulley 5B	$42.44	Add to Cart
10	5234-2	GHS PTO Belt B41K	$26.36	Add to Cart
11	5268	Bearing WCollar 34 BOXED	$52.79	Add to Cart
12	5545-2	NR Blower Wheel9	$142.38	Add to Cart
13	5525-7	Faceplate9 Blwr 612 Wide Mouth	$31.61	Add to Cart
14	5526-3	NR Intake Tube9 Blower 612x3 Wide Mouth	$44.88	Add to Cart
15	5595-2	Intake CoverGHS	$7.82	Add to Cart
16	5543-3	NR Blwr HsingWide Dschg9	$221.76	Add to Cart
	5542-3	NR Blower Assembly 9 87 612 Intake	$556.50	Add to Cart
17	5527-2	Blwr Mnt Plate55432or3	$6.17	Add to Cart
18	5534	Skid Bar 9 Blower	$14.81	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F012	3816 Keps Nut	$0.79	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F031	1420x58 Hex Bolt	$0.50	Add to Cart
	F034	51618x34 Hex Bolt	$0.79	Add to Cart
	F038	3816x1 Hex Bolt	$1.06	Add to Cart
	F067	316x316x1 Key	$1.99	Add to Cart
	F074	1420x38 Set Screw	$0.43	Add to Cart
	F075	51618x12 SQH Set Screw	$0.50	Add to Cart
	F079	66AAD Alum Pop Rivet 316 Diax 38 Grip	$0.65	Add to Cart
	F085	316 Rivet Backup Washer	$0.44	Add to Cart
	F086	10 SAE Washer	$0.18	Add to Cart
	F090	1420x212 Hex Bolt	$1.30	Add to Cart
	F114	51618x58 SQH Set Screw	$0.65	Add to Cart
	F124	1032x38 Taptite MS	$0.36	Add to Cart
	F130	1024x316 Set Screw	$0.22	Add to Cart
	F132	1420x234 Hex Bolt	$1.42	Add to Cart
	F144	440x14 PPHMS	$0.18	Add to Cart
	F145	440 Keps Nut	$0.22	Add to Cart
