Part Lookup Tool

PARTS > MC MANUALS > 1997-11-05, 6000-5, Serial 31040-49732 > GHS Group:

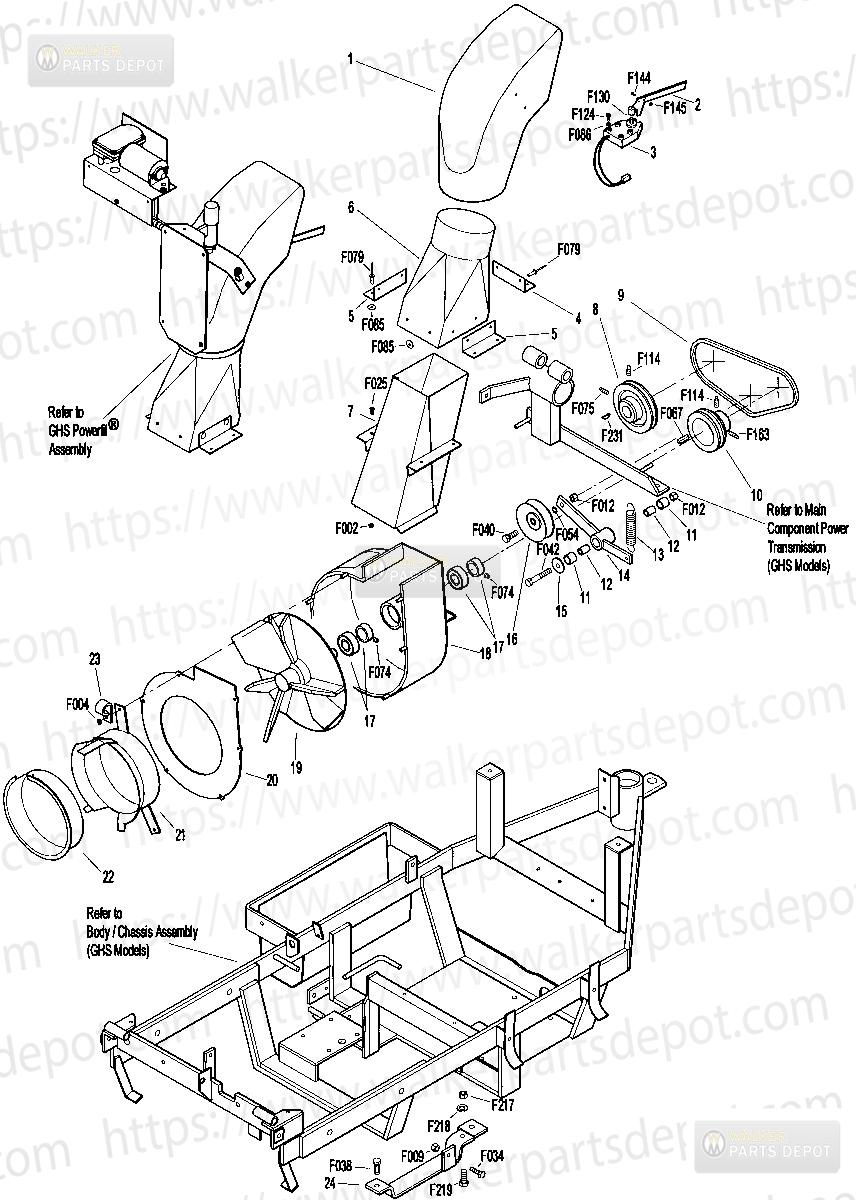

Diagram #	Part #	Description	Price	Add to Cart
1	5515-2	Elbow Delivery Spout	$75.13	Add to Cart
2	5594	Vane Assembly, Grass Pak Switch (Includes Items # F130, F144 & F145)
3	5592	Grass Pak Switch Assembly
4	5578	Rear Clip Chute Mount	$3.96	Add to Cart
5	5577	Side Clip Chute Mount	$4.28	Add to Cart
6	5511-3	6.7/7.0 Gray Box Delivery Chute W/Clips	$61.61	Add to Cart
7	6530	Body Chute (10?)
8	7238	(NR) Blwr Dr Pulley (4-1/4/3V)	$20.15	Add to Cart
9	7234	Blower Belt (3VX280)	$11.86	Add to Cart
10	7239	(NR) Blower Pulley (3-3/8/3V)	$42.60	Add to Cart
11	7201-1	Needle Bearing
12	7201	Bearing Inner Race
13	5221	Extension Spring (3/4x4)	$7.12	Add to Cart
14	7364	(NR) Blower Belt Tightener Arm	$25.94	Add to Cart
15	5841	Retainer Washer (3/8x1-1/4)	$1.42	Add to Cart
16	7245	Idler Pulley (1/2 Groove)	$37.71	Add to Cart
17	5268	Bearing W/Collar (3/4) BOXED	$52.80	Add to Cart
18	6543	"Blower Housing (10"")"	$222.58	Add to Cart
	6542	Blower Assembly 10	$412.46	Add to Cart
19	6545	"(NR) Blower Wheel (10"")"	$150.15	Add to Cart
20	6525-2	"(NR) Faceplate (10"" Blower)"	$40.37	Add to Cart
21	6526	IntakeTube (6-1/2 x 2-1/2)
22	5595-2	Intake Cover/GHS	$7.82	Add to Cart
23	7833	Cable Clamp (7/8x1/4)	$2.72	Add to Cart
24	7528	"(NR) Skid Bar (10"" Blower)"	$29.21	Add to Cart
	F002	10-24 Keps Nut	$0.18	Add to Cart
	F004	1/4-20 Keps Nut	$0.34	Add to Cart
	F009	5/16-18 Whiz Locknut	$0.50	Add to Cart
	F012	3/8-16 Keps Nut	$0.79	Add to Cart
	F025	10-24x3/8 PPHMS	$0.18	Add to Cart
	F034	5/16-18x3/4 Hex Bolt	$0.79	Add to Cart
	F038	3/8-16x1 Hex Bolt	$1.06	Add to Cart
	F040	3/8-16x1-1/2 Hex Bolt	$1.54	Add to Cart
	F042	3/8-16x2-1/4 Hex Bolt	$1.97	Add to Cart
	F054	AN960616 Washer	$0.29	Add to Cart
	F067	3/16x3/16x1 Key	$1.10	Add to Cart
	F074	1/4-20x3/8 Set Screw	$0.43	Add to Cart
	F075	5/16-18x1/2 SQH Set Screw	$0.50	Add to Cart
	F079	66AAD Alum. Pop Rivet (3/16 Dia.x 3/8 Grip)	$0.65	Add to Cart
	F085	3/16 Rivet Backup Washer	$0.44	Add to Cart
	F086	#10 SAE Washer	$0.18	Add to Cart
	F114	5/16-18x5/8 SQH Set Screw	$0.65	Add to Cart
	F124	10-32x3/8 Taptite MS	$0.36	Add to Cart
	F130	10-24x3/16 Set Screw	$0.22	Add to Cart
	F144	4-40x1/4 PPHMS	$0.18	Add to Cart
	F145	4-40 Keps Nut	$0.22	Add to Cart
	F163	5/16-18x3/4 SQH Set Screw	$0.65	Add to Cart
	F217	7/16-14 Hex Nut	$0.65	Add to Cart
	F218	7/16 Split Lock Washer	$0.34	Add to Cart
	F219	7/16-14x1-1/4 Hex Bolt	$2.06	Add to Cart
	F231	1/4x3/4 Woodruff Key (#806)	$1.06	Add to Cart
