Part Lookup Tool

PARTS > MC MANUALS > 2020-06-22, 6000-29, Serial 151990-168756 > GHS Group:

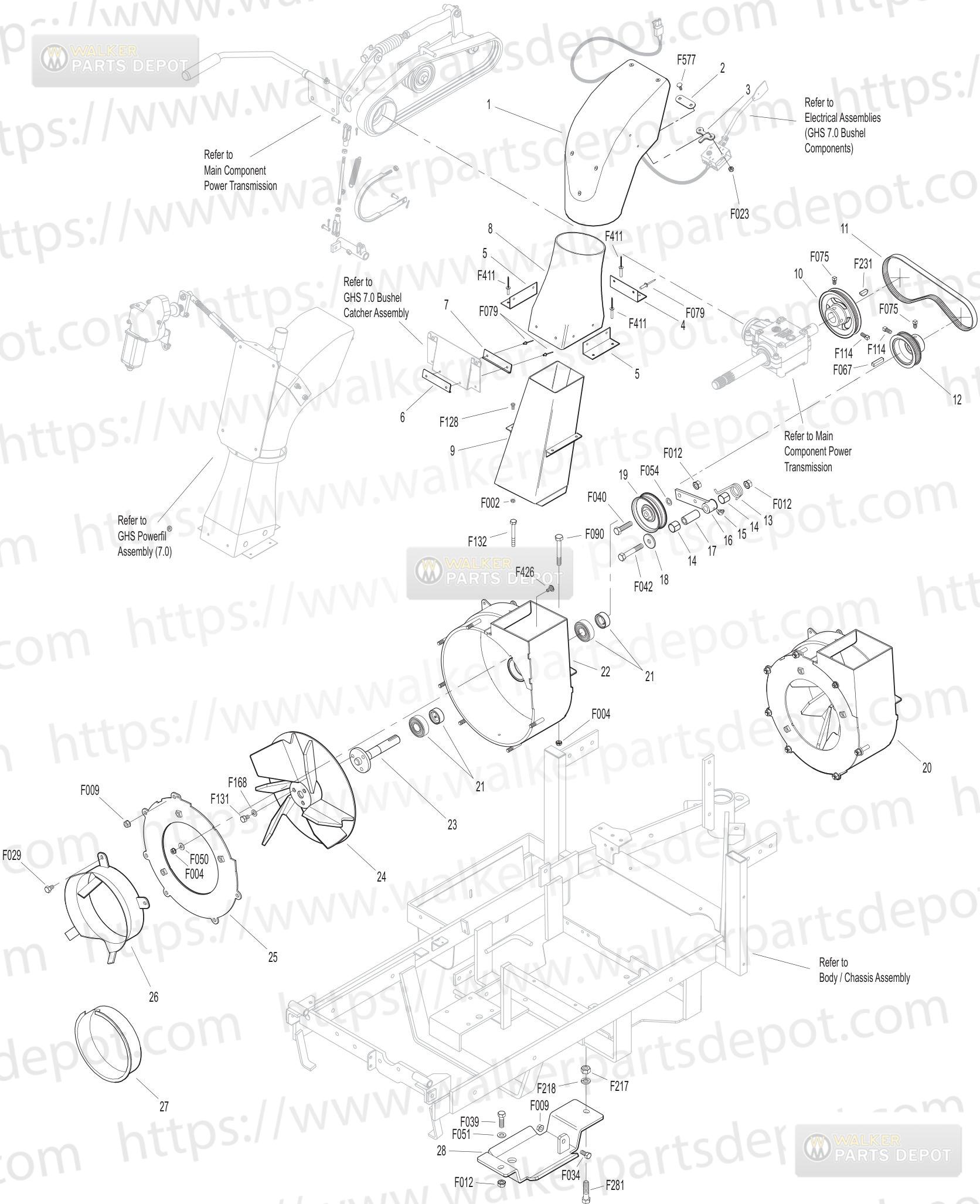

Diagram #	Part #	Description	Price	Add to Cart
1	5515-4	Elbow Delivery Spout 2 PreDrilled Holes	$65.81	Add to Cart
2	5592-24	Backing PlateGP Switch	$2.75	Add to Cart
3	5592-23	Grass Pak Housing Spacer	$7.32	Add to Cart
4	5578	Rear Clip Chute Mount	$3.96	Add to Cart
5	5577	Side Clip Chute Mount	$4.28	Add to Cart
6	7511-5	Outside Chute Cover Lip	$6.82	Add to Cart
7	7511-4	Inside Chute Cover Lip
8	5511-3	6770 Gray Box Delivery Chute WClips	$61.61	Add to Cart
9	7530-4	Body Chute 105 Blower	$95.26	Add to Cart
10	7238-6	Blower Drive Pulley	$55.23	Add to Cart
11	7234-2	Blower Belt MicroV	$19.31	Add to Cart
12	7239-1	Blower Pulley MicroV	$52.47	Add to Cart
13	7364-2	Torsion Spring	$7.32	Add to Cart
14	7201-3	Fiberglide Bearing	$6.91	Add to Cart
15	5830-3	Grease Fitting 45 Deg	$4.04	Add to Cart
16	7364-1	Blower Belt Tightener Arm	$23.36	Add to Cart
17	7201-4	Inner Race 112	$11.75	Add to Cart
18	5841-1	Retainer Washer	$1.51	Add to Cart
19	5245	Idler Pulley 3	$23.30	Add to Cart
20	7544	Blower Assembly 105	$612.57	Add to Cart
21	5268	Bearing WCollar 34 BOXED	$52.79	Add to Cart
22	7544-3	Blower Housing 105	$258.93	Add to Cart
23	7545-2	Blower Output Shaft 105	$52.96	Add to Cart
24	7545	Blower Wheel 105	$138.60	Add to Cart
25	7543-1	Blower Faceplate 105	$54.45	Add to Cart
26	7526	Intake Tube 105 Blower	$55.46	Add to Cart
27	5595-2	Intake CoverGHS	$7.82	Add to Cart
28	7528-5	Skid Bar	$60.73	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F012	3816 Keps Nut	$0.79	Add to Cart
	F023	1024 ESNA Nut	$0.34	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F034	51618x34 Hex Bolt	$0.79	Add to Cart
	F039	3816x114 Hex Bolt	$1.42	Add to Cart
	F040	3816x112 Hex Bolt	$1.54	Add to Cart
	F042	3816x214 Hex Bolt	$1.97	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F051	38 SAE Washer	$0.65	Add to Cart
	F054	AN960616 Washer	$0.29	Add to Cart
	F067	316x316x1 Key	$1.99	Add to Cart
	F075	51618x12 SQH Set Screw	$0.50	Add to Cart
	F079	66AAD Alum Pop Rivet 316 Diax 38 Grip	$0.65	Add to Cart
	F090	1420x212 Hex Bolt	$1.30	Add to Cart
	F114	51618x58 SQH Set Screw	$0.65	Add to Cart
	F128	1024x38 PTHMS	$0.29	Add to Cart
	F131	51618x12 Hex Bolt	$0.79	Add to Cart
	F132	1420x234 Hex Bolt	$1.42	Add to Cart
	F168	516 Split Lock Washer	$0.18	Add to Cart
	F217	71614 Hex Nut	$0.65	Add to Cart
	F218	716 Split Lock Washer	$0.34	Add to Cart
	F231	14x34 Woodruff Key 806	$2.18	Add to Cart
	F281	71614x134 Hex Bolt	$2.54	Add to Cart
	F411	316 Bulbex Rivet	$1.68	Add to Cart
	F426	1420x12 Carriage Bolt	$0.50	Add to Cart
	F577	1024x58 Carriage Bolt	$0.17	Add to Cart
