Part Lookup Tool

PARTS > MD MANUALS > 2013-10-04, 7000-12, Serial 124860-134381 > GHS Powerfil Assembly:

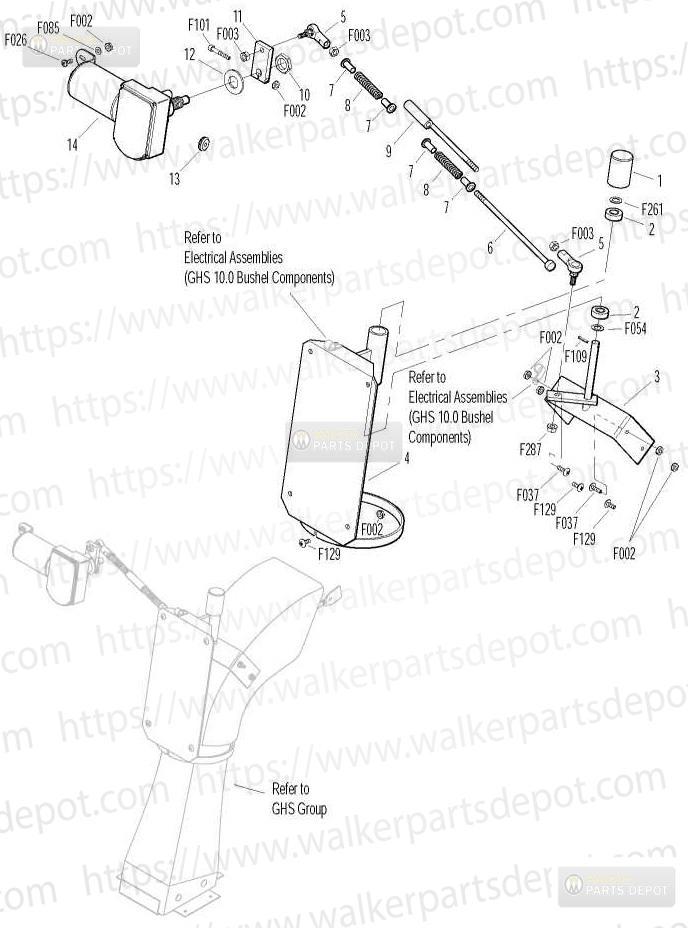

Diagram #	Part #	Description	Price	Add to Cart
1	5551-3	Bearing CapPowerfil	$2.45	Add to Cart
2	5551-1	Pivot Bearing S3PP	$5.20	Add to Cart
3	5518-2	Pivot Delivery Spout	$33.07	Add to Cart
4	5517-2	Pivot Mount	$53.26	Add to Cart
5	5552	Ball Joint 1428	$14.92	Add to Cart
6	5558-1	(NR) Powerfil Push Rod	$7.68	Add to Cart
7	5553-3	Bushing Pwrfil Actuator	$1.72	Add to Cart
8	5553-1	Compression Spg 12x2	$2.26	Add to Cart
9	5558-2	Powerfil Actuator Rod	$6.96	Add to Cart
	5549	Actuator Rod Assembly	$60.73	Add to Cart
10	5519-3	NR Motor Mount Nut 5824	$10.34	Add to Cart
11	5554	Actuator Arm	$9.74	Add to Cart
12	5519-2	Motor Mount Washer	$10.34	Add to Cart
13	5976-2	Grommet 316x34	$3.91	Add to Cart
14	5519-5	Actuator Motor 12V	$151.31	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F003	1428 Hex Nut	$0.18	Add to Cart
	F026	1024x12 PPHMS	$0.18	Add to Cart
	F037	1024x58 PTH Screw	$0.18	Add to Cart
	F054	AN960616 Washer	$0.29	Add to Cart
	F085	316 Rivet Backup Washer	$0.44	Add to Cart
	F101	1024x114 SHC Screw	$0.65	Add to Cart
	F109	18x58 Roll Pin	$0.18	Add to Cart
	F129	1024x12 PTHMS	$0.34	Add to Cart
	F261	AN960616L Washer	$0.22	Add to Cart
	F287	1428 Keps Nut	$0.65	Add to Cart
