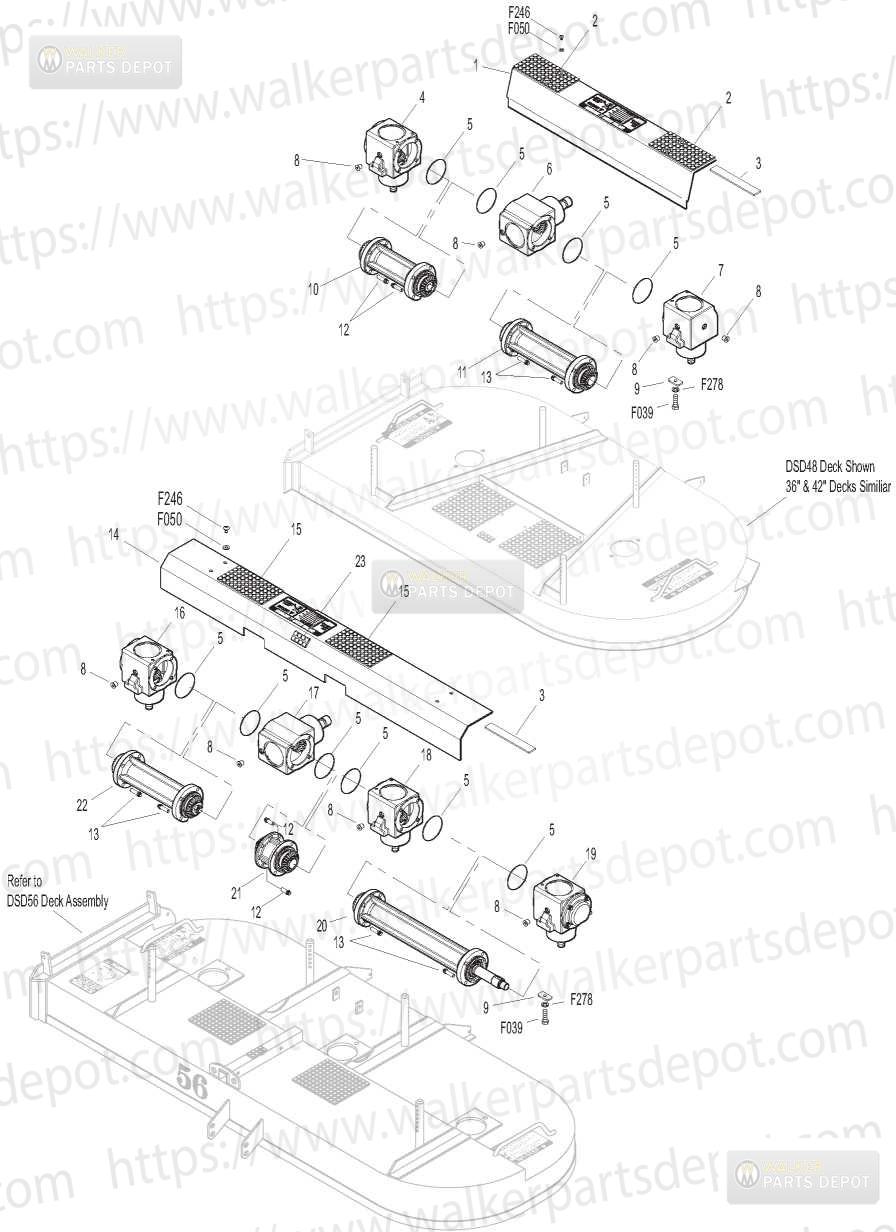

PARTS > DECKS MANUALS > 2004-08-01, 5000-13 > Gear Drive Components (SD Models):

Diagram #	Part #	Description	Price	Add to Cart
1	5746-5	NR 36HD Gearbox Cover	$40.94	Add to Cart
2	5747-14	Rubber Mat 3x6	$6.22	Add to Cart
3	8790	Rubber Cushion Strip	$4.51	Add to Cart
4	NS	Gearbox Assembly*
5	NS	O-Ring/HD (Viton)
6	NS	Gearbox Assembly*
7	NS	Gearbox Assembly*
8	NS	O-Ring Plug
9	5052-3	1375x750x187 Washer	$3.84	Add to Cart
10	NS	Tube Assembly
11	NS	Tube Assembly
12	NS	5/16-18x3/4 Screw
13	NS	5/16-18 x 1 Screw
	F039	3816x114 Hex Bolt	$1.42	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F246	1420x12 PTHMS	$0.34	Add to Cart
	F278	38 Split Lock Washer	$0.18	Add to Cart
1	5785-6	42 Gearbox CoverHD	$41.91	Add to Cart
2	5747-14	Rubber Mat 3x6	$6.22	Add to Cart
3	8790	Rubber Cushion Strip	$4.51	Add to Cart
4	NS	Gearbox Assembly*
5	NS	O-Ring/HD (Viton)
6	NS	Gearbox Assembly*
7	NS	Gearbox Assembly*
8	NS	O-Ring Plug
9	5052-3	1375x750x187 Washer	$3.84	Add to Cart
10	NS	Tube Assembly
11	NS	Tube Assembly
12	NS	5/16-18x3/4 Screw
13	NS	5/16-18 x 1 Screw
	F039	3816x114 Hex Bolt	$1.42	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F246	1420x12 PTHMS	$0.34	Add to Cart
	F278	38 Split Lock Washer	$0.18	Add to Cart
1	7785-4	NR 48 Gearbox CoverHD	$41.91	Add to Cart
2	5747-14	Rubber Mat 3x6	$6.22	Add to Cart
3	8790	Rubber Cushion Strip	$4.51	Add to Cart
4	NS	Gearbox Assembly*
5	NS	O-Ring/HD (Viton)
6	NS	Gearbox Assembly*
7	NS	Gearbox Assembly*
8	NS	O-Ring Plug
9	5052-3	1375x750x187 Washer	$3.84	Add to Cart
10	NS	Tube Assembly
11	NS	Tube Assembly
12	NS	5/16-18x3/4 Screw
13	NS	5/16-18 x 1 Screw
	F039	3816x114 Hex Bolt	$1.42	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F246	1420x12 PTHMS	$0.34	Add to Cart
	F278	38 Split Lock Washer	$0.18	Add to Cart
3	8790	Rubber Cushion Strip	$4.51	Add to Cart
5	NS	O-Ring/HD (Viton)
8	NS	O-Ring Plug
9	5052-3	1375x750x187 Washer	$3.84	Add to Cart
12	NS	5/16-18x3/4 Screw
13	NS	5/16-18 x 1 Screw
14	6786-1	NR 56SD Gearbox CoverHD	$53.06	Add to Cart
15	5747-10	Rubber Mat NoHole 3x6	$5.10	Add to Cart
16	NS	Gearbox Assembly*
17	NS	Gearbox Assembly*
18	NS	Gearbox Assembly*
19	NS	Gearbox Assembly*
20	NS	Tube Assembly
21	NS	Tube Assembly
22	NS	Tube Assembly
23	8788-1	Rubber Mat 1x2	$2.16	Add to Cart
	F039	3816x114 Hex Bolt	$1.42	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F246	1420x12 PTHMS	$0.34	Add to Cart
	F278	38 Split Lock Washer	$0.18	Add to Cart
