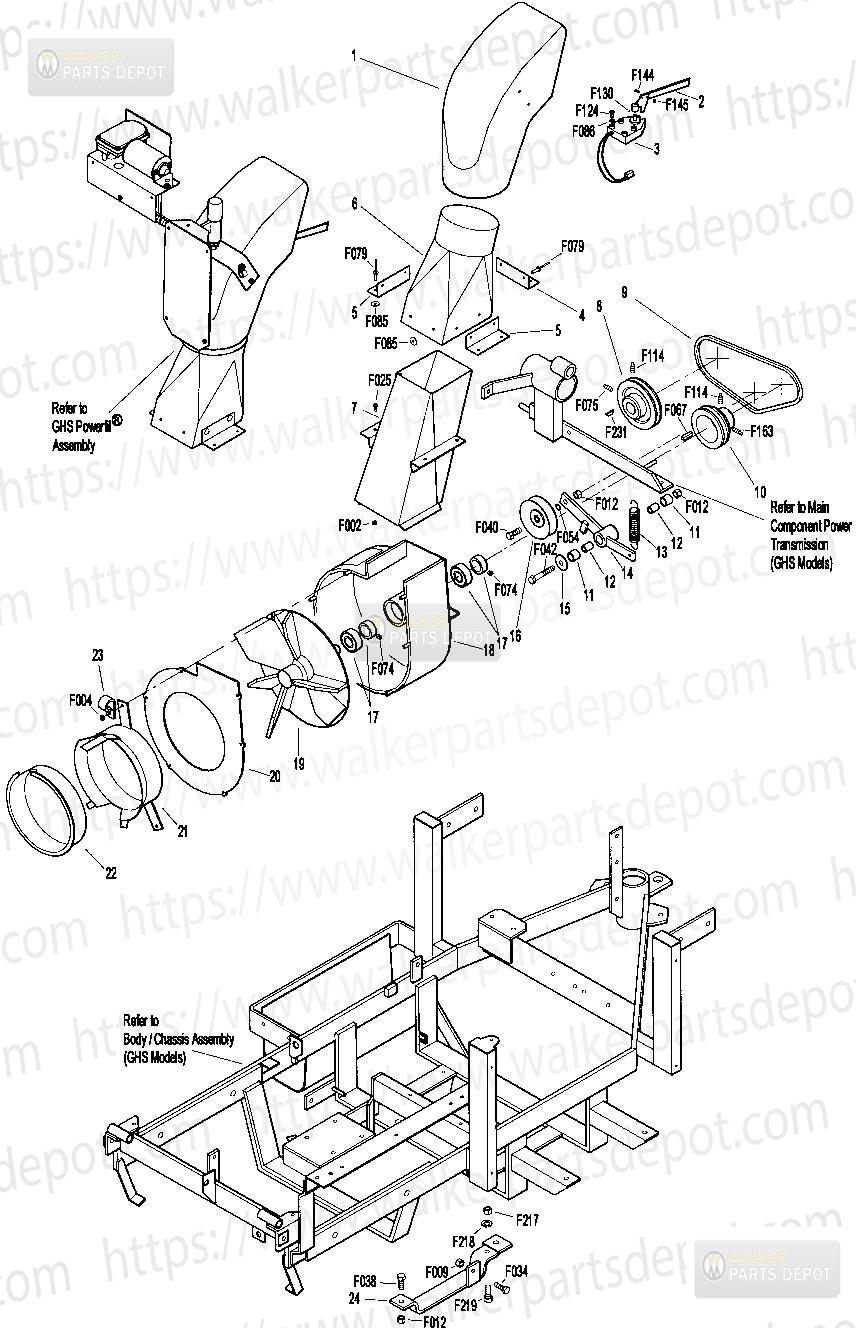

PARTS > MD MANUALS > 1998-01-20, 7000-2, Serial 29676-60191 > Grass Handling System (GHS) Group:

Diagram #	Part #	Description	Price	Add to Cart
1	5515-2	Elbow Delivery Spout	$75.14	Add to Cart
2	5594	Vane Assembly, Grass Pak Switch (Includes Items # F130, F144 & F145)
3	5592	Grass Pak Switch Assembly
4	5578	Rear Clip Chute Mount	$3.96	Add to Cart
5	5577	Side Clip Chute Mount	$4.28	Add to Cart
6	7511-1	NR 70 Delivery Chte WClips	$48.11	Add to Cart
7	7530	Body Chute
8	7238	NR Blwr Dr Pulley 4143V	$20.15	Add to Cart
9	7234	Blower Belt 3VX280	$11.86	Add to Cart
10	7239	NR Blower Pulley 3383V	$42.59	Add to Cart
11	7201-1	Needle Bearing
12	7201	Bearing Inner Race
13	5221	Extension Spring 34x4	$7.12	Add to Cart
14	7364	NR Blower Belt Tightener Arm	$25.94	Add to Cart
15	5841	Retainer Washer 38x114	$1.42	Add to Cart
16	7245	Idler Pulley 12 Groove	$37.71	Add to Cart
17	5268	Bearing WCollar 34 BOXED	$52.79	Add to Cart
18	6543	Blower Housing 10	$222.60	Add to Cart
	6542	Blower Assembly 10	$412.46	Add to Cart
19	6545	NR Blower Wheel 10	$150.15	Add to Cart
20	6525-2	NR Faceplate 10 Blower	$40.37	Add to Cart
21	6526	IntakeTube (6-1/2 x 2-1/2)
22	5595-2	Intake CoverGHS	$7.82	Add to Cart
23	7833	Cable Clamp 78x14	$2.72	Add to Cart
24	7528	NR Skid Bar 10 Blower	$29.22	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F012	3816 Keps Nut	$0.79	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F034	51618x34 Hex Bolt	$0.79	Add to Cart
	F038	3816x1 Hex Bolt	$1.06	Add to Cart
	F040	3816x112 Hex Bolt	$1.54	Add to Cart
	F042	3816x214 Hex Bolt	$1.97	Add to Cart
	F054	AN960616 Washer	$0.29	Add to Cart
	F067	316x316x1 Key	$1.99	Add to Cart
	F074	1420x38 Set Screw	$0.43	Add to Cart
	F075	51618x12 SQH Set Screw	$0.50	Add to Cart
	F079	66AAD Alum Pop Rivet 316 Diax 38 Grip	$0.65	Add to Cart
	F085	316 Rivet Backup Washer	$0.44	Add to Cart
	F086	10 SAE Washer	$0.18	Add to Cart
	F114	51618x58 SQH Set Screw	$0.65	Add to Cart
	F124	1032x38 Taptite MS	$0.36	Add to Cart
	F130	1024x316 Set Screw	$0.22	Add to Cart
	F144	440x14 PPHMS	$0.18	Add to Cart
	F145	440 Keps Nut	$0.22	Add to Cart
	F163	51618x34 SQH Set Screw	$0.65	Add to Cart
	F217	71614 Hex Nut	$0.65	Add to Cart
	F218	716 Split Lock Washer	$0.34	Add to Cart
	F219	71614x114 Hex Bolt	$2.06	Add to Cart
	F231	14x34 Woodruff Key 806	$2.18	Add to Cart
