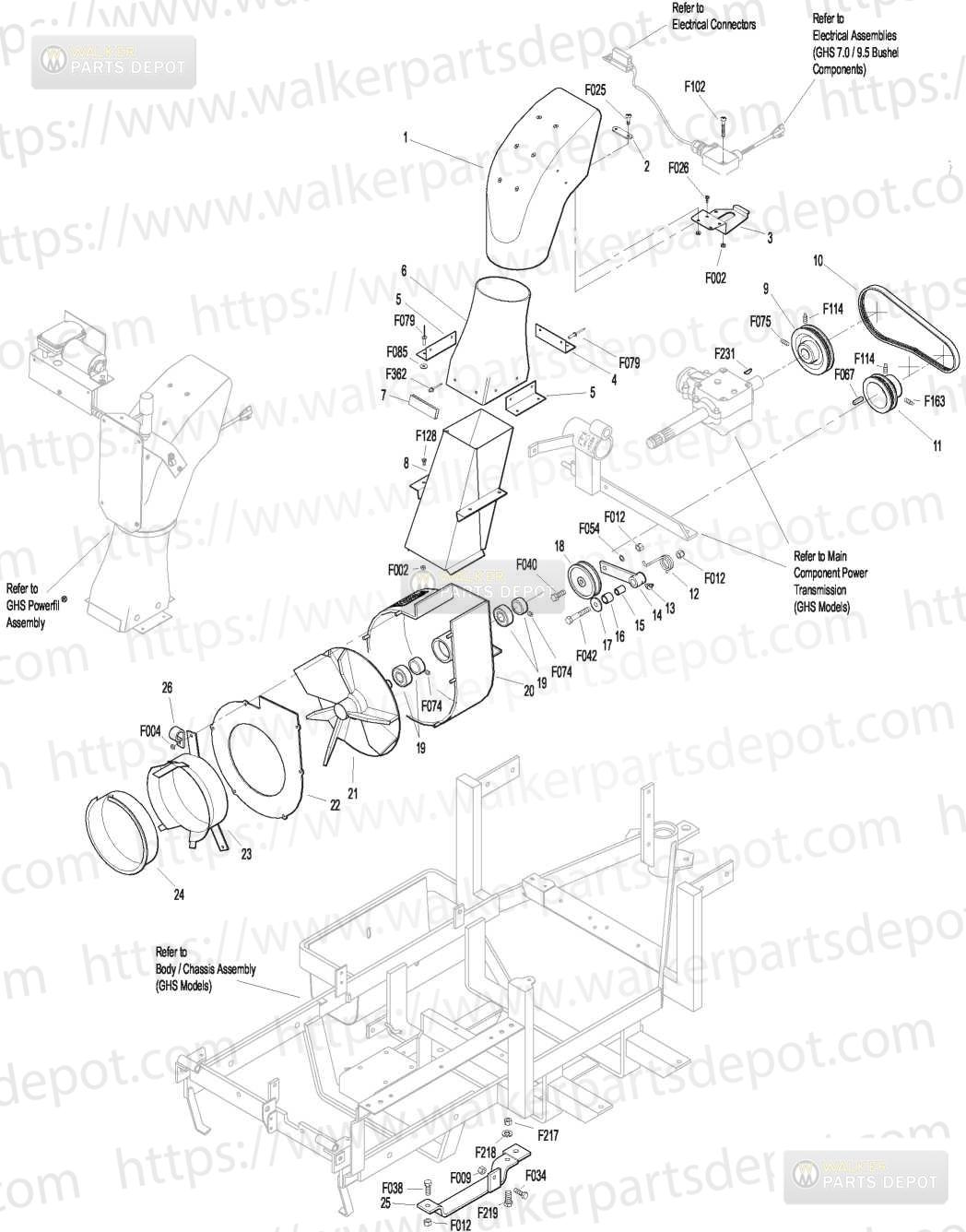

PARTS > MD MANUALS > 2003-05-12, 7000-5, Serial 60192-72867 > Grass Handling System (GHS) Group:

Diagram #	Part #	Description	Price	Add to Cart
1	5515-2	Elbow Delivery Spout	$75.14	Add to Cart
2	5592-13	NR Backing PlateGP Switch	$4.48	Add to Cart
3	5592-12	NR Mount PlateGP Switch	$10.02	Add to Cart
4	5578	Rear Clip Chute Mount	$3.96	Add to Cart
5	5577	Side Clip Chute Mount	$4.28	Add to Cart
6	7511-1	NR 70 Delivery Chte WClips	$48.11	Add to Cart
	8511-1	Delivery Chute WClips	$58.59	Add to Cart
7	5578-10	Front Clip Chute Mount	$5.29	Add to Cart
8	7530-3	Body Chute 10 Blower	$82.72	Add to Cart
9	7238-1	NR Blwr Dr Pulley MicroV	$33.09	Add to Cart
10	7234-1	Blower Belt MicroV	$19.16	Add to Cart
11	7239-1	Blower Pulley MicroV	$52.47	Add to Cart
12	7364-2	Torsion Spring	$7.32	Add to Cart
13	5830-3	Grease Fitting 45 Deg	$4.04	Add to Cart
14	7364-1	Blower Belt Tightener Arm	$23.36	Add to Cart
15	7201-4	Inner Race 112	$11.75	Add to Cart
16	7201-3	Fiberglide Bearing	$6.91	Add to Cart
17	5841	Retainer Washer 38x114	$1.42	Add to Cart
18	5245	Idler Pulley 3	$23.30	Add to Cart
19	5268	Bearing WCollar 34 BOXED	$52.79	Add to Cart
20	6543	Blower Housing 10	$222.60	Add to Cart
	6542	Blower Assembly 10	$412.46	Add to Cart
21	6545	NR Blower Wheel 10	$150.15	Add to Cart
22	6525-2	NR Faceplate 10 Blower	$40.37	Add to Cart
23	6526	Intake Tube (6-1/2 x 2-1/2)
24	5595-2	Intake CoverGHS	$7.82	Add to Cart
25	7528	NR Skid Bar 10 Blower	$29.22	Add to Cart
26	7833	Cable Clamp 78x14	$2.72	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F012	3816 Keps Nut	$0.79	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F026	1024x12 PPHMS	$0.18	Add to Cart
	F034	51618x34 Hex Bolt	$0.79	Add to Cart
	F038	3816x1 Hex Bolt	$1.06	Add to Cart
	F040	3816x112 Hex Bolt	$1.54	Add to Cart
	F042	3816x214 Hex Bolt	$1.97	Add to Cart
	F054	AN960616 Washer	$0.29	Add to Cart
	F067	316x316x1 Key	$1.99	Add to Cart
	F074	1420x38 Set Screw	$0.43	Add to Cart
	F075	51618x12 SQH Set Screw	$0.50	Add to Cart
	F079	66AAD Alum Pop Rivet 316 Diax 38 Grip	$0.65	Add to Cart
	F085	316 Rivet Backup Washer	$0.44	Add to Cart
	F102	1024x112 PTHMS	$0.50	Add to Cart
	F114	51618x58 SQH Set Screw	$0.65	Add to Cart
	F128	1024x38 PTHMS	$0.29	Add to Cart
	F163	51618x34 SQH Set Screw	$0.65	Add to Cart
	F217	71614 Hex Nut	$0.65	Add to Cart
	F218	716 Split Lock Washer	$0.34	Add to Cart
	F219	71614x114 Hex Bolt	$2.06	Add to Cart
	F231	14x34 Woodruff Key 806	$2.18	Add to Cart
	F362	AA62D Alum Pop Rivet 316Dx1332L	$0.48	Add to Cart
