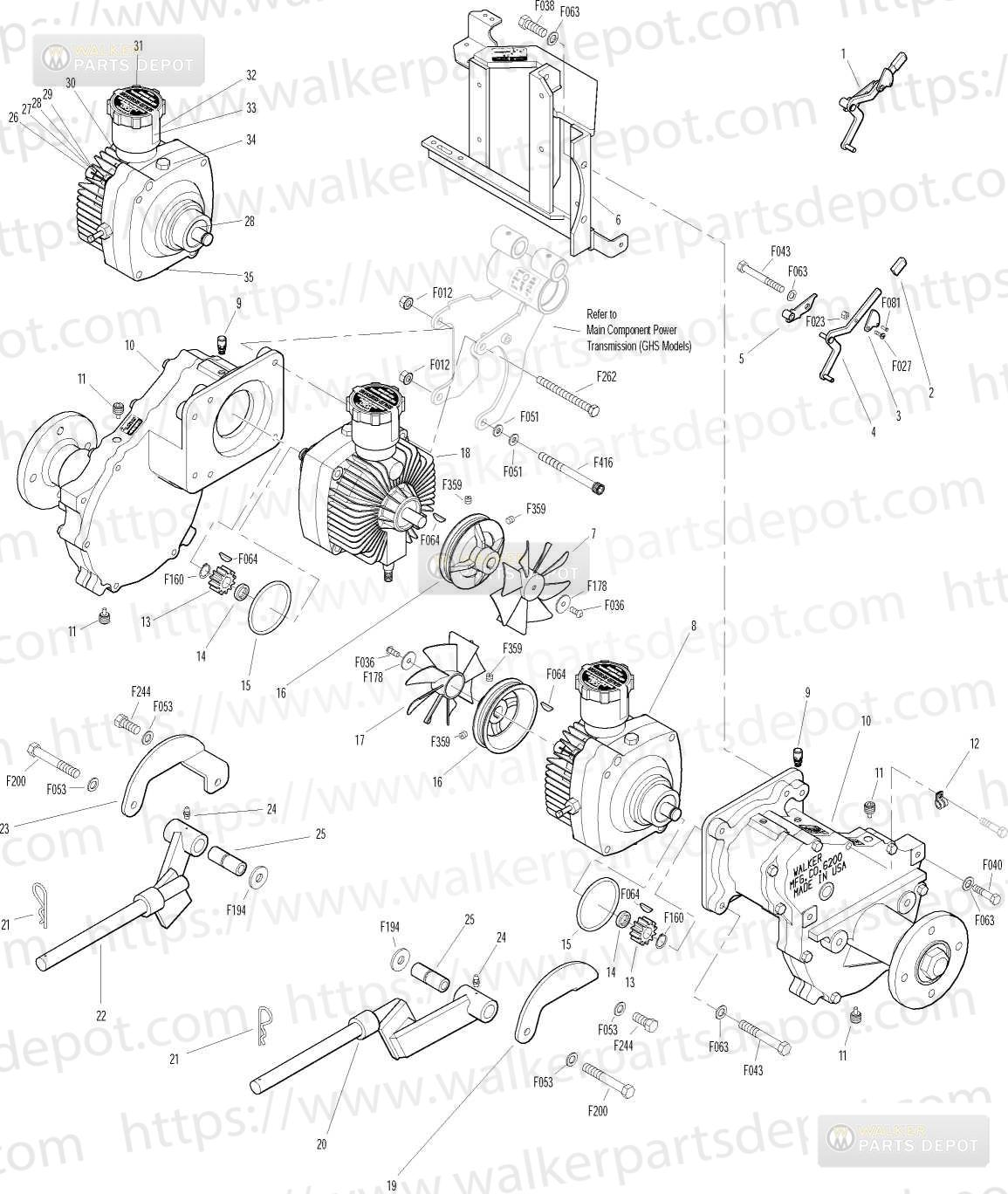

PARTS > MT MANUALS > 2009-04-01, 8000-15, Serial 100103-124811 > Hydrostatic Ground Drive Assemblies:
| Diagram # | Part # | Description | Price | Add to Cart |
| 1 | 5028-3 | Trans Lockout Assembly | $32.69 |
Add to Cart | | 2 | 5847 | Plastic Tip | $0.65 |
Add to Cart | | 3 | 5057 | Lockout Cam | $6.50 |
Add to Cart | | 4 | 5028-5 | Lockout Lever | $10.68 |
Add to Cart | | 5 | 5027-5 | Lockout Mount | $6.67 |
Add to Cart | | 6 | 6209-1 | NR Bridge Assembly | $139.55 |
Add to Cart | | 6209-2 | Bridge AssemblyMTL | $85.30 |
Add to Cart | | 7 | 6243-2 | Hydro Fan CCW | $7.72 |
Add to Cart | | 8 | 5026 | Hydrostatic Drive CW | $1,233.00 |
Add to Cart | | 9 | 6206-1 | Air Vent Valve | $11.46 |
Add to Cart | | 10 | 6200-9 | Gear Axle Drive Assembly | $1,036.56 |
Add to Cart | | 11 | 6207-12 | Pipe Plug 14 NPTF | $10.16 |
Add to Cart | | 12 | 5126 | Cable Retainer | $2.95 |
Add to Cart | | 13 | 6233-1 | Pinion Gear 620039 | $51.06 |
Add to Cart | | 14 | 6234 | Spacer Pinion Gear | $8.03 |
Add to Cart | | 15 | 6201 | ORing Seal | $1.88 |
Add to Cart | | 16 | 7244 | Hydro Pulley 378MV | $55.71 |
Add to Cart | | 17 | 6243-1 | Hydro Fan CW | $7.21 |
Add to Cart | | 18 | 5025 | Hydrostatic Drive CCW | $1,233.00 |
Add to Cart | | 19 | 6430-10 | Outboard MountLH | $21.43 |
Add to Cart | | 20 | 6430-2 | Deck Support Arm, LH (Includes Item # 24) | |
| | 21 | 5775-2 | Hitch Pin 6 | $3.24 |
Add to Cart | | 22 | 6430-1 | Deck Support Arm, RH (Includes Item # 24) | |
| | 23 | 6430-9 | Outboard MountRH | $14.10 |
Add to Cart | | 24 | 5830 | Grease Fitting 1428 | $2.47 |
Add to Cart | | 25 | 6840-1 | Support Arm Bushing 2116 | $17.60 |
Add to Cart | | 26 | 5025-5 | Input Shaft | |
| | 27 | 5025-8 | BearingInput Shaft | $35.42 |
Add to Cart | | 28 | 5025-7 | Snap Ring 97121 | $5.08 |
Add to Cart | | 29 | 5025-2 | SU5025 13 Seal Input Shaft | $5.48 |
Add to Cart | | 30 | 5022 | ReservoirCasting Gasket | $5.02 |
Add to Cart | | 31 | 5024 | Reservoir Cap Gasket | $22.92 |
Add to Cart | | 32 | 5023 | Trans Reservoir Kit WCap | $87.51 |
Add to Cart | | 33 | 5023-1 | Rubber Bladder | $17.89 |
Add to Cart | | 34 | 5025-6 | ORing Plug 25090006 | $10.39 |
Add to Cart | | 35 | 5025-3 | Seal Control Shaft | $5.32 |
Add to Cart | | F012 | 3816 Keps Nut | $0.79 |
Add to Cart | | F023 | 1024 ESNA Nut | $0.34 |
Add to Cart | | F027 | 1024x58 PPHMS | $0.18 |
Add to Cart | | F036 | 1420x12 SBH Screw | $0.43 |
Add to Cart | | F038 | 3816x1 Hex Bolt | $1.06 |
Add to Cart | | F040 | 3816x112 Hex Bolt | $1.54 |
Add to Cart | | F043 | 3816x3 Hex Bolt | $2.35 |
Add to Cart | | F051 | 38 SAE Washer | $0.65 |
Add to Cart | | F053 | 716 Int Star Lock Wshr | $0.65 |
Add to Cart | | F063 | 38 Int Star Lock Washer | $0.18 |
Add to Cart | | F064 | 18x12 Woodruff Key 3 | $5.45 |
Add to Cart | | F081 | AA45D Aluminum Pop Rivet | $0.34 |
Add to Cart | | F160 | Ext Snap Rng 669 Shaft | $0.72 |
Add to Cart | | F178 | 14x1 Fender Washer | $1.42 |
Add to Cart | | F194 | 716x114x18 Washer | $1.75 |
Add to Cart | | F200 | 71620x3 Grade 8 Bolt | $4.06 |
Add to Cart | | F244 | 71620x34 Hex Bolt | $1.66 |
Add to Cart | | F262 | 3816x4 Hex Blt All Thrd | $2.88 |
Add to Cart | | F359 | 51618x516 Set Screw Knurl Point Holo Krome | $1.50 |
Add to Cart | | F416 | 3816x4 Soc Hd Cap Screw | $3.12 |
Add to Cart | | 1 | 5028-3 | Trans Lockout Assembly | $32.69 |
Add to Cart | | 2 | 5847 | Plastic Tip | $0.65 |
Add to Cart | | 3 | 5057 | Lockout Cam | $6.50 |
Add to Cart | | 4 | 5028-5 | Lockout Lever | $10.68 |
Add to Cart | | 5 | 5027-5 | Lockout Mount | $6.67 |
Add to Cart | | 6 | 6209-1 | NR Bridge Assembly | $139.55 |
Add to Cart | | 6209-2 | Bridge AssemblyMTL | $85.30 |
Add to Cart | | 7 | 6243-2 | Hydro Fan CCW | $7.72 |
Add to Cart | | 8 | 5026 | Hydrostatic Drive CW | $1,233.00 |
Add to Cart | | 9 | 6206-1 | Air Vent Valve | $11.46 |
Add to Cart | | 10 | 6200-9 | Gear Axle Drive Assembly | $1,036.56 |
Add to Cart | | 11 | 6207-12 | Pipe Plug 14 NPTF | $10.16 |
Add to Cart | | 12 | 5126 | Cable Retainer | $2.95 |
Add to Cart | | 13 | 6233-1 | Pinion Gear 620039 | $51.06 |
Add to Cart | | 14 | 6234 | Spacer Pinion Gear | $8.03 |
Add to Cart | | 15 | 6201 | ORing Seal | $1.88 |
Add to Cart | | 16 | 7244 | Hydro Pulley 378MV | $55.71 |
Add to Cart | | 17 | 6243-1 | Hydro Fan CW | $7.21 |
Add to Cart | | 18 | 5025 | Hydrostatic Drive CCW | $1,233.00 |
Add to Cart | | 19 | 6430-10 | Outboard MountLH | $21.43 |
Add to Cart | | 20 | 6430-2 | Deck Support Arm, LH (Includes Item # 24) | |
| | 21 | 5775-2 | Hitch Pin 6 | $3.24 |
Add to Cart | | 22 | 6430-1 | Deck Support Arm, RH (Includes Item # 24) | |
| | 23 | 6430-9 | Outboard MountRH | $14.10 |
Add to Cart | | 24 | 5830 | Grease Fitting 1428 | $2.47 |
Add to Cart | | 25 | 6840-1 | Support Arm Bushing 2116 | $17.60 |
Add to Cart | | 26 | 5025-5 | Input Shaft | |
| | 27 | 5025-8 | BearingInput Shaft | $35.42 |
Add to Cart | | 28 | 5025-7 | Snap Ring 97121 | $5.08 |
Add to Cart | | 29 | 5025-2 | SU5025 13 Seal Input Shaft | $5.48 |
Add to Cart | | 30 | 5022 | ReservoirCasting Gasket | $5.02 |
Add to Cart | | 31 | 5024 | Reservoir Cap Gasket | $22.92 |
Add to Cart | | 32 | 5023 | Trans Reservoir Kit WCap | $87.51 |
Add to Cart | | 33 | 5023-1 | Rubber Bladder | $17.89 |
Add to Cart | | 34 | 5025-6 | ORing Plug 25090006 | $10.39 |
Add to Cart | | 35 | 5025-3 | Seal Control Shaft | $5.32 |
Add to Cart | | F012 | 3816 Keps Nut | $0.79 |
Add to Cart | | F023 | 1024 ESNA Nut | $0.34 |
Add to Cart | | F027 | 1024x58 PPHMS | $0.18 |
Add to Cart | | F036 | 1420x12 SBH Screw | $0.43 |
Add to Cart | | F038 | 3816x1 Hex Bolt | $1.06 |
Add to Cart | | F040 | 3816x112 Hex Bolt | $1.54 |
Add to Cart | | F043 | 3816x3 Hex Bolt | $2.35 |
Add to Cart | | F051 | 38 SAE Washer | $0.65 |
Add to Cart | | F053 | 716 Int Star Lock Wshr | $0.65 |
Add to Cart | | F063 | 38 Int Star Lock Washer | $0.18 |
Add to Cart | | F064 | 18x12 Woodruff Key 3 | $5.45 |
Add to Cart | | F081 | AA45D Aluminum Pop Rivet | $0.34 |
Add to Cart | | F160 | Ext Snap Rng 669 Shaft | $0.72 |
Add to Cart | | F178 | 14x1 Fender Washer | $1.42 |
Add to Cart | | F194 | 716x114x18 Washer | $1.75 |
Add to Cart | | F200 | 71620x3 Grade 8 Bolt | $4.06 |
Add to Cart | | F244 | 71620x34 Hex Bolt | $1.66 |
Add to Cart | | F262 | 3816x4 Hex Blt All Thrd | $2.88 |
Add to Cart | | F359 | 51618x516 Set Screw Knurl Point Holo Krome | $1.50 |
Add to Cart | | F416 | 3816x4 Soc Hd Cap Screw | $3.12 |
