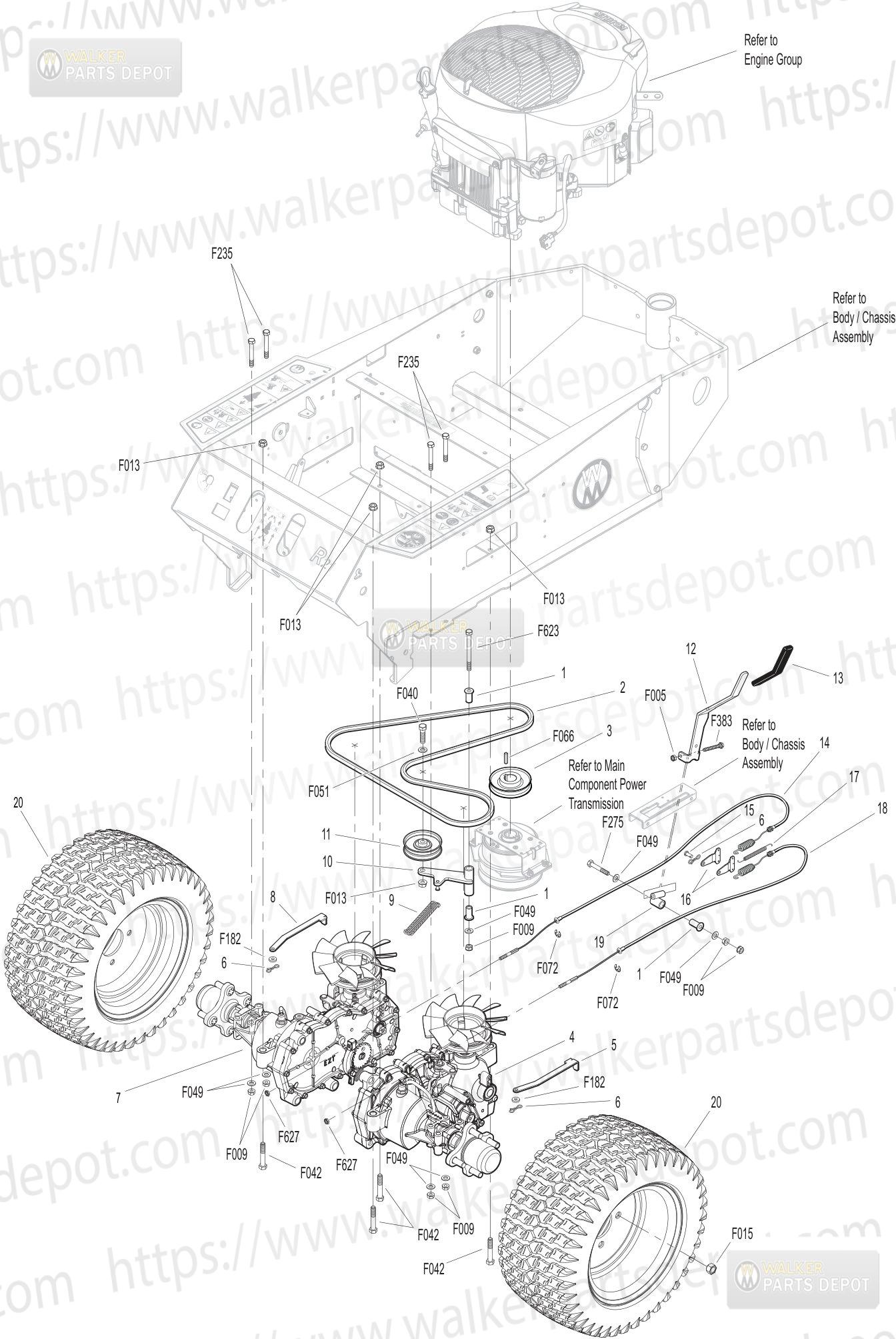

PARTS > MR MANUALS > 2023-11-27, 1000-7, Serial 178455-189148 > Hydrostatic and Brake Assemblies:

Diagram #	Part #	Description	Price	Add to Cart
1	5103-2	Pivot Bushing 516ID	$4.56	Add to Cart
2	1250	Drive BeltMR	$27.81	Add to Cart
3	6240-24	Engine Pulley 312A	$57.94	Add to Cart
4	5025-24	"HydroGr EZT2200LH "	$753.27	Add to Cart
5	2028-5	Lockout ArmLH	$7.13	Add to Cart
6	4407-4	Bow Tie Cotter Pin	$0.68	Add to Cart
7	5026-24	HydroGr EZT2200RH	$753.27	Add to Cart
8	2028-6	Lockout ArmRH	$7.13	Add to Cart
9	5221	Extension Spring 34x4	$7.12	Add to Cart
10	1300-6	Ground Drive Idler Arm	$30.25	Add to Cart
11	5245	Idler Pulley 3	$23.30	Add to Cart
12	1406	Parking Brake Arm	$14.51	Add to Cart
13	5850-2	Handle Grip Foam 512	$5.45	Add to Cart
14	7410-1	Brake Control CableRH 365	$30.23	Add to Cart
15	7523-3	Clevis Pin WHole 14x12	$0.79	Add to Cart
16	1406-2	Parking Brake Clevis	$9.12	Add to Cart
17	7222	Extension Spring 14x3	$6.96	Add to Cart
18	7409-1	Brake Control CableLH 31	$29.46	Add to Cart
19	1406-3	Parking Brake Knuckle	$13.21	Add to Cart
20	5075-3	LP WheelTire18x85010 50752 Tire 50755 Wheel	$199.92	Add to Cart
	5075-2	LP Tire 18x85010	$130.94	Add to Cart
	5075-5	LP Wheel 10x7	$117.60	Add to Cart
	F005	1420 ESNA Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F013	3816 Whiz Locknut	$0.65	Add to Cart
	F015	1220 Wheel Lug Nut	$2.54	Add to Cart
	F040	3816x112 Hex Bolt	$1.54	Add to Cart
	F042	3816x214 Hex Bolt	$1.97	Add to Cart
	F049	516 SAE Washer	$0.18	Add to Cart
	F051	38 SAE Washer	$0.65	Add to Cart
	F066	14x14x34 Key	$1.54	Add to Cart
	F072	14 E Retainer Ring	$0.34	Add to Cart
	F182	14x58x18 Washer	$1.20	Add to Cart
	F235	51618x212 Hex Bolt	$1.75	Add to Cart
	F275	51618x2 Hex Bolt	$1.42	Add to Cart
	F383	1420x2 Shear Bolt Grd2	$0.79	Add to Cart
	F623	51618x334 Hex Bolt	$2.23	Add to Cart
	F627	1428 Nylock Jam Nut	$0.86	Add to Cart
