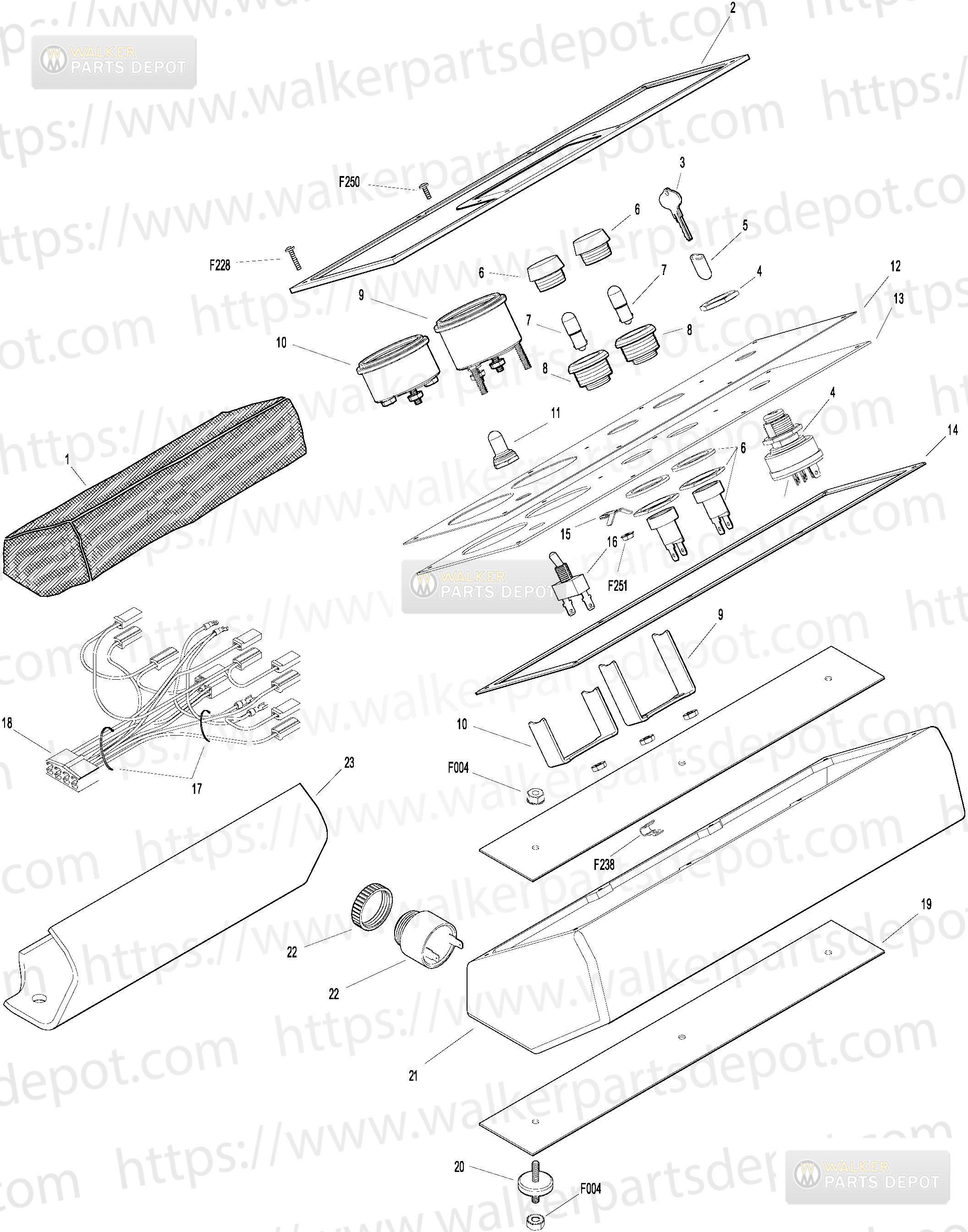

PARTS > MT MANUALS > 2000-03-29, 8000-4, Serial 37480-54650 > Instrument Panel Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	7307-2	Instrument Panel Cover	$163.07	Add to Cart
	8306	NR Instrument Panel AssyT95	$312.06	Add to Cart
2	7307	Panel Frame
3	8960-2	Ignition Key (1 Set)
4	8960	Ignition Switch (with Keys) (Includes Item # 3)
5	7854	Plastic TipRed	$0.50	Add to Cart
6	8996-4	Red Indicator Lens	$10.88	Add to Cart
7	8996-3	NR Indicator Bulb 89962	$7.26	Add to Cart
8	8996-2	Red Indicator Light Assembly (Includes Item # 7)
9	8997	Voltmeter Gauge	$51.24	Add to Cart
10	8990	NR Hourmeter	$23.85	Add to Cart
11	5995-2	Switch Boot	$5.26	Add to Cart
12	8823-1	Decal, Instrument Panel
13	8820-10	Panel Faceplate	$14.67	Add to Cart
14	7386	Panel Gasket	$11.53	Add to Cart
15	5995-1	Wire Terminal Adapter	$2.52	Add to Cart
16	5995	Toggle Switch OffOn	$14.16	Add to Cart
17	5975-1	Cable Tie 18x334	$0.34	Add to Cart
18	8945-1	Wire Harness, Instrument Panel
19	7391	Panel Box Mount Plate	$4.80	Add to Cart
20	7307-1	Shock Mount 10x25 Double Stud	$5.66	Add to Cart
21	8385	Panel Box WGraphic	$82.89	Add to Cart
22	8536	Warning Horn	$24.07	Add to Cart
23	7307-15	Foam Insert, Panel Box
	F004	1420 Keps Nut	$0.34	Add to Cart
	F062	8 Int Star Lock Wshr	$0.18	Add to Cart
	F228	6x58 PPHSMS SS	$0.34	Add to Cart
	F238	J Clip Instrument Panel	$0.50	Add to Cart
	F250	632x12 PPHMS	$0.18	Add to Cart
	F251	632 Keps Nut	$0.22	Add to Cart
	F349	Washer 835ID 1122ODSS	$1.66	Add to Cart
