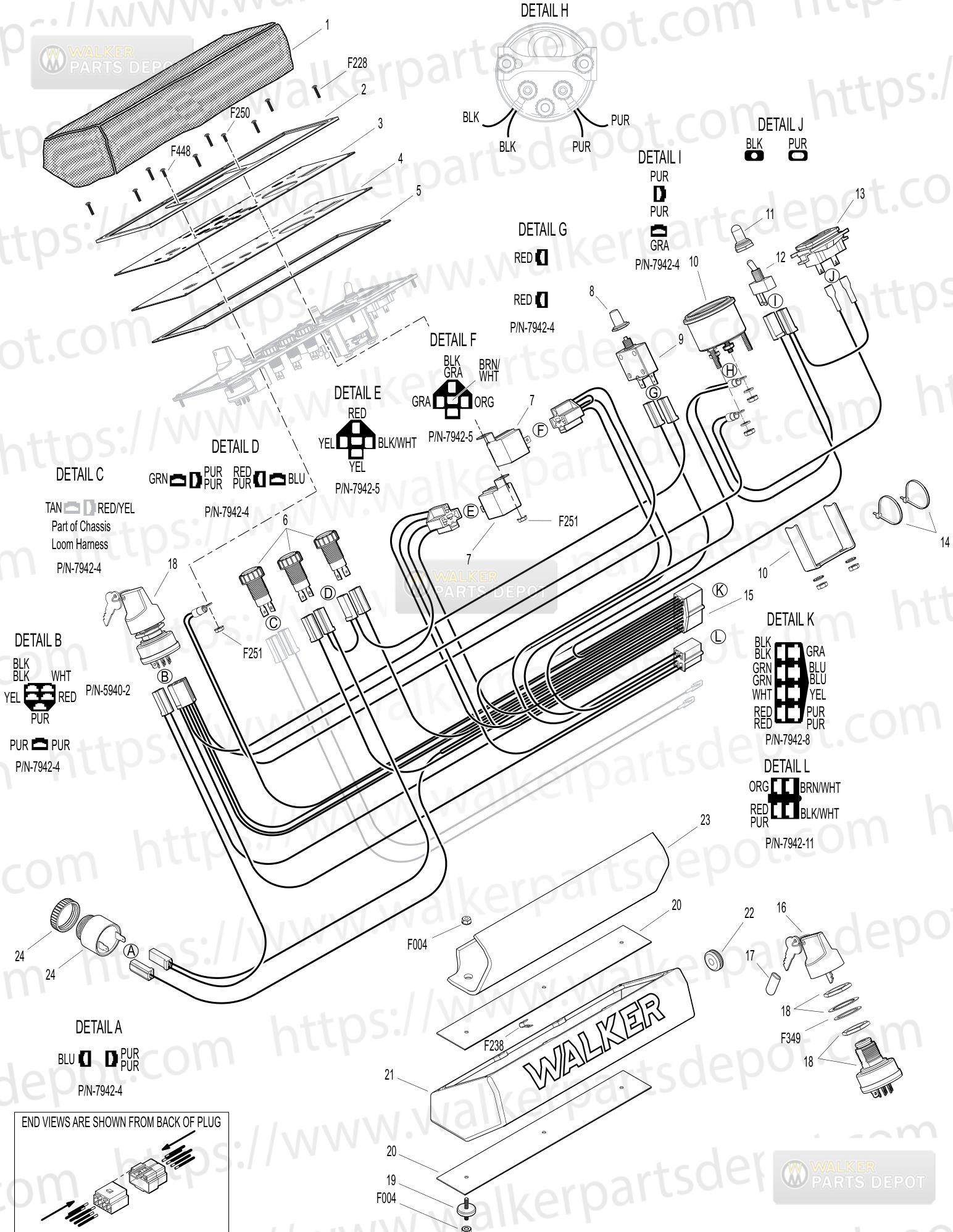

PARTS > MT MANUALS > 2022-10-10, 8000-50, Serial 170586-180499 > Instrument Panel Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	7307-2	Instrument Panel Cover	$163.07	Add to Cart
	8306-5	Inst Panel AssyEFI02 SenDec Hourmeter	$319.62	Add to Cart
2	7307-7	Panel Frame	$30.84	Add to Cart
3	8823-9	Instrument Panel Decal
4	8820-26	Panel Faceplate MTEFI Galv	$11.78	Add to Cart
5	7386	Panel Gasket	$11.53	Add to Cart
6	8996-9	Red Indicator Light Assembly	$9.62	Add to Cart
7	6941-9	Relay Switch 3040AMP	$9.30	Add to Cart
8	7941-3	Boot Circuit Breaker	$8.90	Add to Cart
9	7941-5	Circuit Breaker 7AMP	$9.88	Add to Cart
10	8997	Voltmeter Gauge	$51.24	Add to Cart
11	5995-2	Switch Boot	$5.26	Add to Cart
12	5995	Toggle Switch OffOn	$14.16	Add to Cart
13	8990-1	Hourmeter Global	$25.89	Add to Cart
14	5975-1	Cable Tie 18x334	$0.34	Add to Cart
15	8945-3	Wire Harness Inst Panel	$71.61	Add to Cart
16	8960-3	Key Set WUmbrella	$14.99	Add to Cart
17	7854	Plastic TipRed	$0.50	Add to Cart
18	8960-15	Ignition Switch WKeys	$34.63	Add to Cart
19	7307-1	Shock Mount 10x25 Double Stud	$5.66	Add to Cart
20	7391	Panel Box Mount Plate	$4.80	Add to Cart
21	8385	Panel Box WGraphic	$82.89	Add to Cart
22	7977-3	Grommet 18 x 118	$1.87	Add to Cart
23	7307-16	LiningPanel Box 18	$6.22	Add to Cart
24	8536	Warning Horn	$24.07	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F228	6x58 PPHSMS SS	$0.34	Add to Cart
	F238	J Clip Instrument Panel	$0.50	Add to Cart
	F250	632x12 PPHMS	$0.18	Add to Cart
	F251	632 Keps Nut	$0.22	Add to Cart
	F349	Washer 835ID 1122ODSS	$1.66	Add to Cart
	F448	632 x 516 PPHMS	$0.34	Add to Cart
