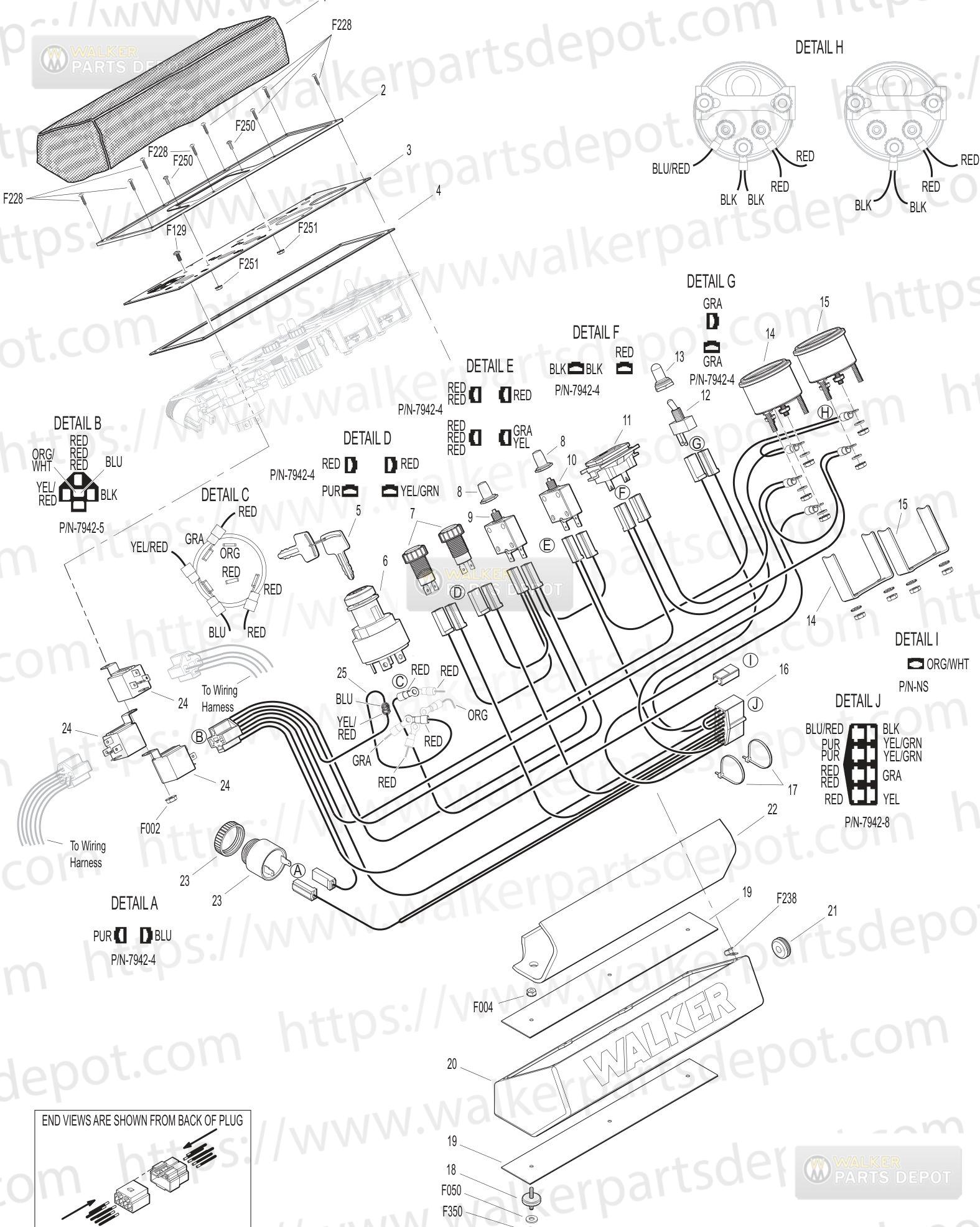

PARTS > MD MANUALS > 2024-02-06, 7000-23, Serial 179940-187254 > Instrument Panel Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	7307-2	Instrument Panel Cover	$163.07	Add to Cart
	7396-1	NR Instrmnt Panel Assy DD01	$829.92	Add to Cart
2	7307-7	Panel Frame	$30.84	Add to Cart
3	7307-8	Panel Faceplate WDecal MD	$52.23	Add to Cart
4	7386	Panel Gasket	$11.53	Add to Cart
5	7960-6	Ignition Key 1 Set	$23.17	Add to Cart
6	7960-5	Ignition Switch WKeys	$127.89	Add to Cart
7	8996-9	Red Indicator Light Assembly	$9.62	Add to Cart
8	7941-3	Boot Circuit Breaker	$8.90	Add to Cart
9	7941-5	Circuit Breaker 7AMP	$9.88	Add to Cart
10	7941-2	Circuit Breaker10AMP	$9.88	Add to Cart
11	8990-1	Hourmeter Global	$25.89	Add to Cart
12	5995	Toggle Switch OffOn	$14.16	Add to Cart
13	5995-2	Switch Boot	$5.26	Add to Cart
14	7306-14	Water Temperature Gauge	$55.27	Add to Cart
15	8997	Voltmeter Gauge	$51.24	Add to Cart
16	7947-3	Wire Harness Inst Panel	$71.76	Add to Cart
17	5975-1	Cable Tie 18x334	$0.34	Add to Cart
18	7307-1	Shock Mount 10x25 Double Stud	$5.66	Add to Cart
19	7391	Panel Box Mount Plate	$4.80	Add to Cart
20	8385	Panel Box WGraphic	$82.89	Add to Cart
21	7977-3	Grommet 18 x 118	$1.87	Add to Cart
22	7307-16	LiningPanel Box 18	$6.22	Add to Cart
23	8536	Warning Horn	$24.07	Add to Cart
24	6941-9	Relay Switch 3040AMP	$9.30	Add to Cart
25	7947-8	Jumper Wire	$11.26	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F129	1024x12 PTHMS	$0.34	Add to Cart
	F228	6x58 PPHSMS SS	$0.34	Add to Cart
	F238	J Clip Instrument Panel	$0.50	Add to Cart
	F250	632x12 PPHMS	$0.18	Add to Cart
	F251	632 Keps Nut	$0.22	Add to Cart
	F350	1420 LP Nylock	$0.65	Add to Cart
