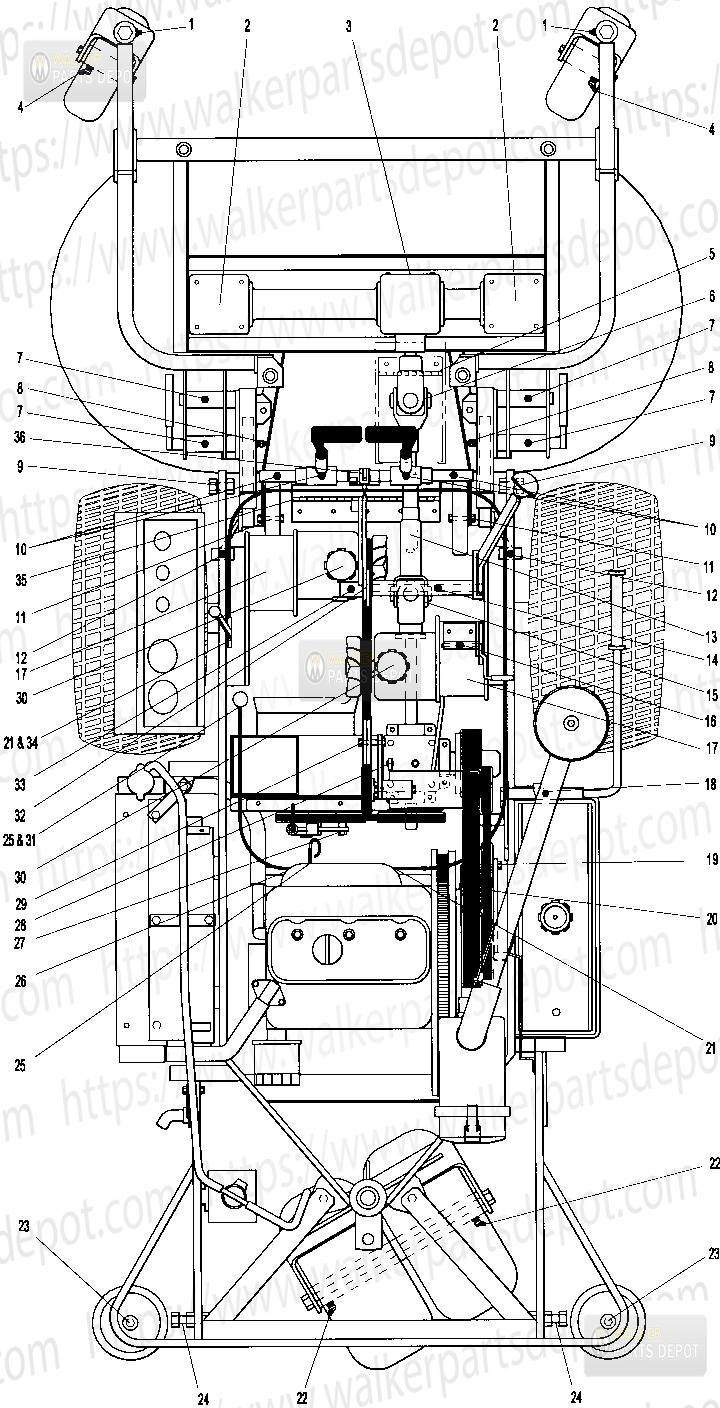

| Diagram # | Part # | Description | Price | Add to Cart |
| 1 | | Deck Caster Wheel Fork Pivot Grease | |
|
| 2 | | Blade Drive Gearbox Oil* | |
|
| 3 | | Tee Gearbox, Deck Oil* | |
|
| 4 | | Deck Caster Wheel Bearing Grease | |
|
| 5 | | PTO Shaft Guard Hinge Oil | |
|
| 6 | | Universal Joint Shaft Assembly Grease** | |
|
| 7 | | PivotAssembly, Tilt-Up Deck Grease | |
|
| 8 | | Deck SupportArm Socket Grease | |
|
| 9 | | Body Hinge Point Oil | |
|
| 10 | | Steering Lever Pivot Grease | |
|
| 11 | | Deck Roller Wheel Oil | |
|
| 12 | | Deck SupportArm Pivot Grease | |
|
| 13 | | Deck-to-PTO Coupling Grease | |
|
| 14 | | FSC Lever Pivot Grease | |
|
| 15 | | Universal Joint Tube Assembly Grease** | |
|
| 16 | | Parking Brake Lever Grease | |
|
| 17 | | Gear Axle Oil*** | |
|
| 18 | | Clutch Lever Grease | |
|
| 19 | | Idler Arm Oil | |
|
| 20 | | Engine Belt Idler Pulley Oil | |
|
| 21 | | Throttle Control Cable Ends Oil | |
|
| 22 | | Rear Wheel Axle Grease | |
|
| 23 | | Rear Bumper Roller Wheel Oil | |
|
| 24 | | Catcher Hinge Point Oil | |
|
| 25 | | Engine Dipstick / Oil Filler Oil*** | |
|
| 26 | | Choke Control Cable Ends (MDG Models Only) Oil | |
|
| 27 | | Blower Belt Idler Pulley Oil | |
|
| 28 | | PTO Gearbox Dipstick Oil | |
|
| 29 | | Ground Drive Idler Pulley Oil | |
|
| 30 | | Hydrostatic Drive Oil*** | |
|
| 31 | | Choke Control Assembly Oil | |
|
| 32 | | FSC Lever Fork (Grease Slide Area) Grease | |
|
| 33 | | (FSC) Friction Body Pivot Grease | |
|
| 34 | | Throttle Control Assembly Oil | |
|
| 35 | | Discharge Chute Hinge Oil | |
|
| 36 | | FSC Actuator Rod Pivot Pins Oil | |
|
