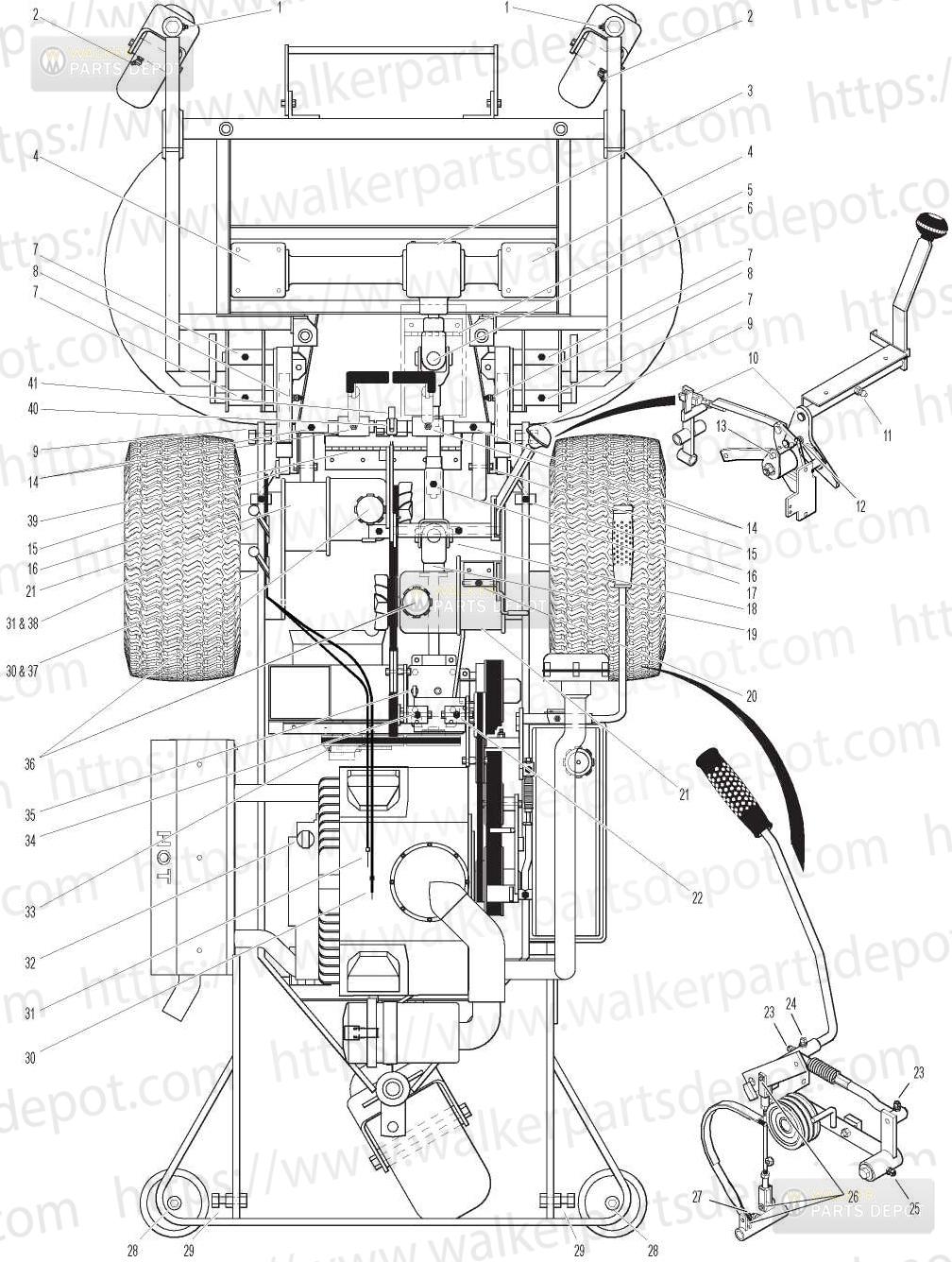

| Diagram # | Part # | Description | Price | Add to Cart |
| 1 | | Deck Caster Wheel Fork Pivot Grease | |
|
| 2 | | Deck Caster Wheel Bearing Grease | |
|
| 3 | | Tee Gearbox, Deck Oil* | |
|
| 4 | | Blade Drive Gearbox Oil* | |
|
| 5 | | PTO Shaft Guard Hinge Oil | |
|
| 6 | | Universal Joint Shaft Assembly Grease** | |
|
| 7 | | PivotAssembly, Tilt-Up Deck Grease | |
|
| 8 | | Deck SupportArm Socket Grease | |
|
| 9 | | Body Hinge Point Oil | |
|
| 10 | | FSC Actuator Rod Pivot Pins Oil | |
|
| 11 | | FSC Lever Pivot Grease | |
|
| 12 | | FSC Lever Fork (Grease Slide Area) Grease | |
|
| 13 | | (FSC) Friction Body Pivot Grease | |
|
| 14 | | Steering Lever Pivot Grease | |
|
| 15 | | Deck Roller Wheel Oil | |
|
| 16 | | Deck SupportArm Pivot Grease | |
|
| 17 | | Deck-to-PTO Coupling (Grease Slide Area) Grease | |
|
| 18 | | Universal Joint Tube Assembly Grease** | |
|
| 19 | | Universal Joint Quick Connect Spline (Grease Slide Area) Grease | |
|
| 20 | | Parking Brake Lever Grease | |
|
| 21 | | Gear Axle Oil*** | |
|
| 22 | | Belt Tightener Pivot, Jackshaft Drive Grease | |
|
| 23 | | Clutch Actuator Push Rod Grease | |
|
| 24 | | PTO Clutch Lever Pivot Grease | |
|
| 25 | | Belt Tightener Pivot, PTO Clutch Grease | |
|
| 26 | | Brake Actuator Rod and Brake Oil | |
|
| 27 | | Brake Actuator Pivot Grease | |
|
| 28 | | Anti-Scuff Roller Wheel Oil | |
|
| 29 | | Catcher Hinge Point Oil | |
|
| 30 | | Choke Control Cable Ends Oil | |
|
| 31 | | Throttle Control Cable Ends Oil | |
|
| 32 | | Engine Oil Oil*** | |
|
| 33 | | Belt Tightener Pivot, Blower Drive (GHS Model Only) Grease | |
|
| 34 | | Belt Tightener Pivot, Ground Drive Grease | |
|
| 35 | | PTO Gearbox Dipstick Oil*** | |
|
| 36 | | Hydrostatic Drive Oil*** | |
|
| 37 | | Choke Control Pivot Oil | |
|
| 38 | | Throttle Control Pivot Oil | |
|
| 39 | | Discharge Chute Hinge Oil | |
|
| 40 | | Tilt-Up Latch Assembly Oil | |
|
| 41 | | Steering Lever Support Oil | |
|
