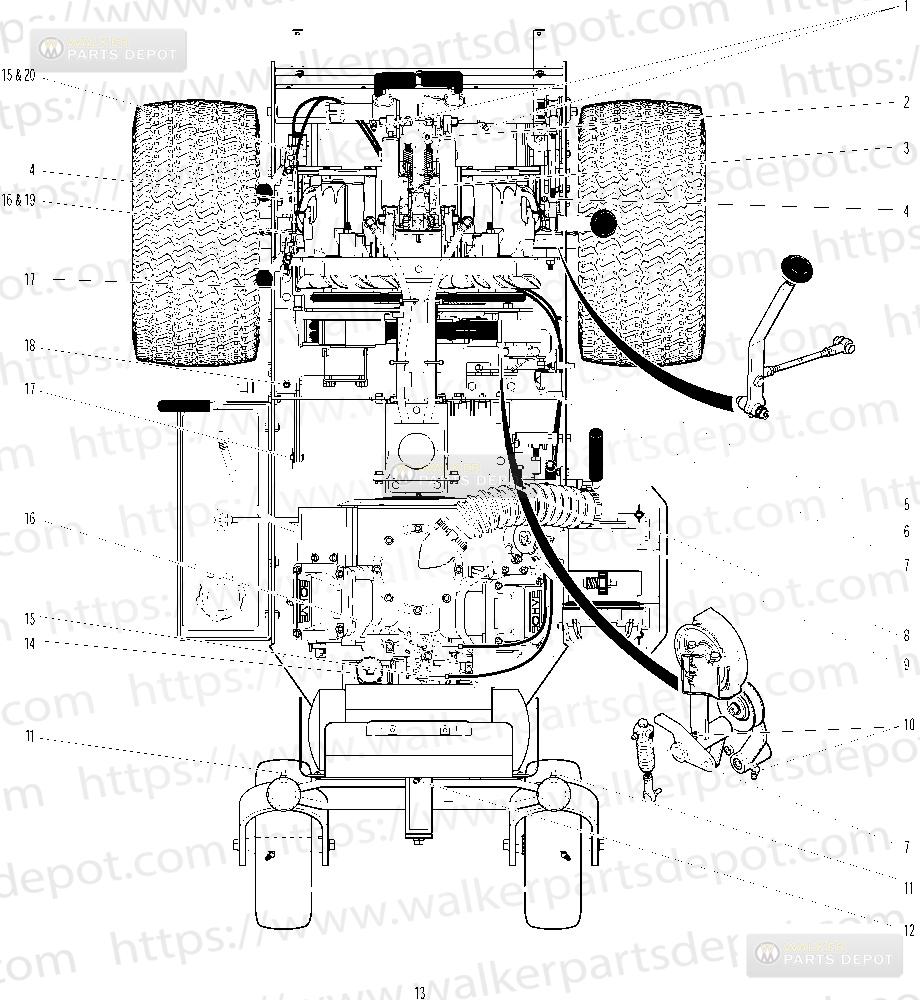

| Diagram # | Part # | Description | Price | Add to Cart |
| 1 | | Steering Lever Pivot Grease | |
|
| 2 | | Deck-to-PTO Coupling (Grease Spline Slide Area) Grease | |
|
| 3 | | Universal Joint Tube Assembly Grease* | |
|
| 4 | | Deck Support Arm Pivot Grease | |
|
| 5 | | FSC Lever Pivot Grease | |
|
| 6 | | Body Latch Pivot Oil | |
|
| 7 | | Clutch Actuator Push Rod Grease | |
|
| 8 | | PTO Clutch Lever Pivot Grease | |
|
| 9 | | Transaxle Oil Reservoir Oil/20W-50 | |
|
| 10 | | Clutch Engagement Pivot Grease | |
|
| 11 | | Tail Wheel Caster Fork Pivot Grease | |
|
| 12 | | Rear Axle Pivot Grease | |
|
| 13 | | Rear Wheel Bearing Grease | |
|
| 14 | | Engine Oil Filler / Dipstick Oil** | |
|
| 15 | | Throttle Control Cable Ends Oil | |
|
| 16 | | Choke Control Cable Ends Oil | |
|
| 17 | | Parking Brake Clevis Oil | |
|
| 18 | | Parking Brake Lever Grease | |
|
| 19 | | Choke Control Pivot Oil | |
|
| 20 | | Throttle Control Pivot Oil | |
|
