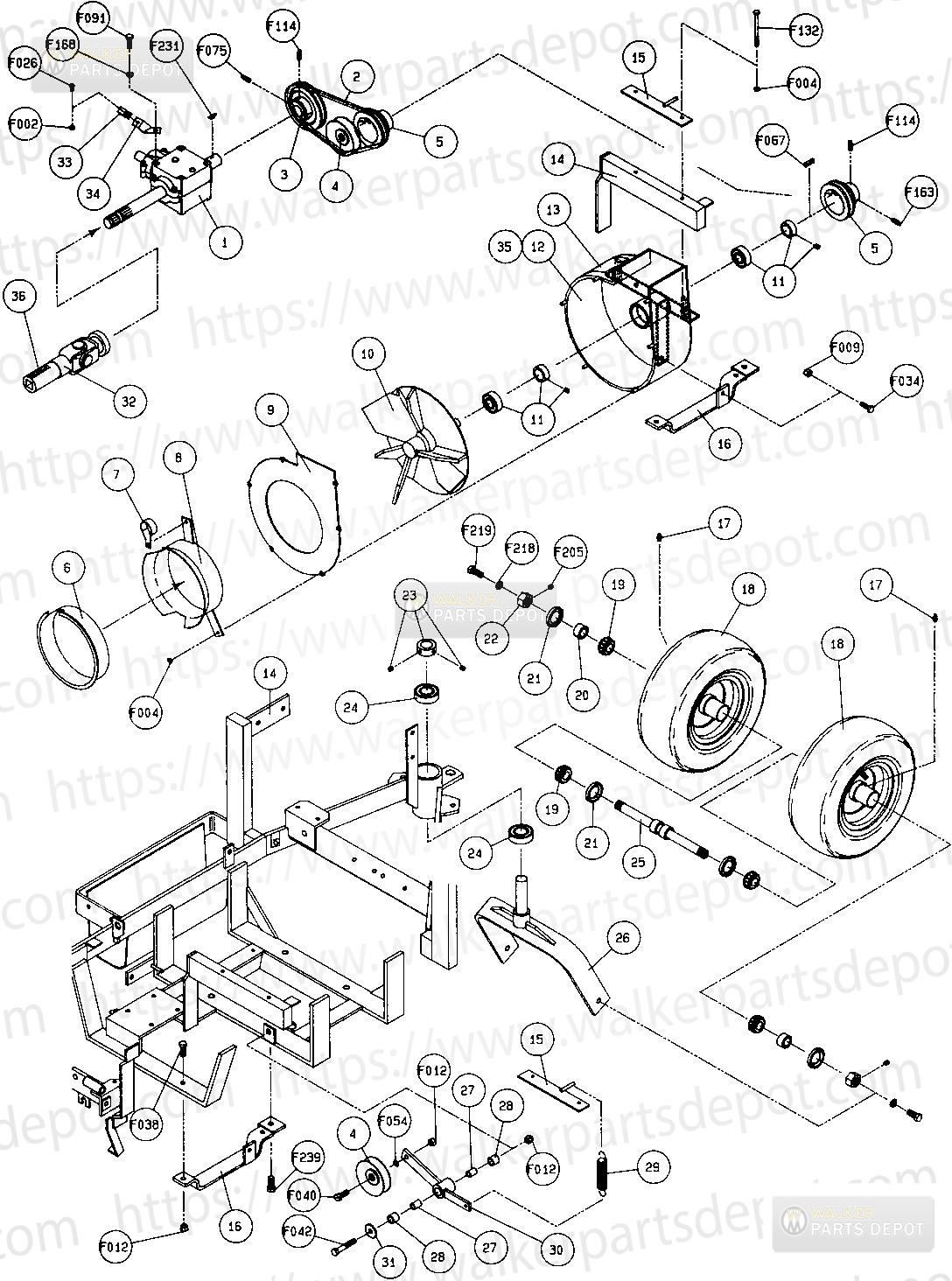

PARTS > MD MANUALS > 1993-03-01, 7895-1, Serial 11756-29675 > Mid Body Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	7050	PTO Gearbox
2	7234	Blower Belt 3VX280	$11.86	Add to Cart
3	7238	NR Blwr Dr Pulley 4143V	$20.15	Add to Cart
4	7245	Idler Pulley 12 Groove	$37.71	Add to Cart
5	7239	NR Blower Pulley 3383V	$42.59	Add to Cart
6	5595-2	Intake CoverGHS	$7.82	Add to Cart
7	7833	Cable Clamp 78x14	$2.72	Add to Cart
8	6526	Blower Intake Tube (10 Inch)*
9	6525-2	NR Faceplate 10 Blower	$40.37	Add to Cart
10	6545	NR Blower Wheel 10	$150.15	Add to Cart
11	5268	Bearing WCollar 34 BOXED	$52.79	Add to Cart
12	6543	Blower Housing 10	$222.60	Add to Cart
13	5819	NR Decal Blower Maintenance	$1.87	Add to Cart
14	7300	Chassis Frame (MD)
15	7527-2	Blower Mount Plate*
16	7528	NR Skid Bar 10 Blower	$29.22	Add to Cart
17	5830-3	Grease Fitting 45 Deg	$4.04	Add to Cart
18	8035	Tail Whl& Tire(13x5.00-6) (W/Bearing Race)	$75.08	Add to Cart
	7035-1	Tail Whl Tire 13x5006	$63.00	Add to Cart
	8036	Tail Wheel Hub 6x325 WRace	$60.14	Add to Cart
	8037-2	Bearing Race	$13.55	Add to Cart
19	8037	Bearing Cone 34ID	$12.09	Add to Cart
20	8038-1	Spacer Wheel Axle 750xIDx1125OD	$12.61	Add to Cart
21	8037-1	Seal- Outer (1-3/4x1-1/8)	$7.16	Add to Cart
22	8039	Nut Tail Wheel Axle	$6.91	Add to Cart
23	5267-1	Retainer Collar 1	$13.52	Add to Cart
24	5270-1	Ball Bearing	$9.20	Add to Cart
25	8038	Tail Whl Axle34x1038	$62.85	Add to Cart
26	7420	Tail Wheel Fork	$137.03	Add to Cart
27	7201	Bearing Inner Race*
28	7201-1	Needle Bearing*
29	5221	Extension Spring 34x4	$7.12	Add to Cart
30	7364	NR Blower Belt Tightener Arm	$25.94	Add to Cart
31	5841	Retainer Washer 38x114	$1.42	Add to Cart
32	7275	NR UJnt Tube AssySquare	$303.03	Add to Cart
33	5832	Cable Clamp 12 203 Hole	$1.87	Add to Cart
34	7857	NR Mount Bracket	$5.28	Add to Cart
35	6542	Blower Assembly 10	$412.46	Add to Cart
36	6875	NR Decal PTO Align Arrow	$4.74	Add to Cart
F002	F002	1024 Keps Nut	$0.18	Add to Cart
F004	F004	1420 Keps Nut	$0.34	Add to Cart
F009	F009	51618 Whiz Locknut	$0.50	Add to Cart
F012	F012	3816 Keps Nut	$0.79	Add to Cart
F026	F026	1024x12 PPHMS	$0.18	Add to Cart
F034	F034	51618x34 Hex Bolt	$0.79	Add to Cart
F038	F038	3816x1 Hex Bolt	$1.06	Add to Cart
F040	F040	3816x112 Hex Bolt	$1.54	Add to Cart
F042	F042	3816x214 Hex Bolt	$1.97	Add to Cart
F054	F054	AN960616 Washer	$0.29	Add to Cart
F067	F067	316x316x1 Key	$1.99	Add to Cart
F075	F075	51618x12 SQH Set Screw	$0.50	Add to Cart
F091	F091	51618x58 Hex Bolt	$0.65	Add to Cart
F114	F114	51618x58 SQH Set Screw	$0.65	Add to Cart
F132	F132	1420x234 Hex Bolt	$1.42	Add to Cart
F163	F163	51618x34 SQH Set Screw	$0.65	Add to Cart
F168	F168	516 Split Lock Washer	$0.18	Add to Cart
F205	F205	51618x14 Set Screw Knurl Point	$0.94	Add to Cart
F218	F218	716 Split Lock Washer	$0.34	Add to Cart
F219	F219	71614x114 Hex Bolt	$2.06	Add to Cart
F231	F231	14x34 Woodruff Key 806	$2.18	Add to Cart
F239	F239	71614x112 Hex Bolt	$1.44	Add to Cart
