Part Lookup Tool

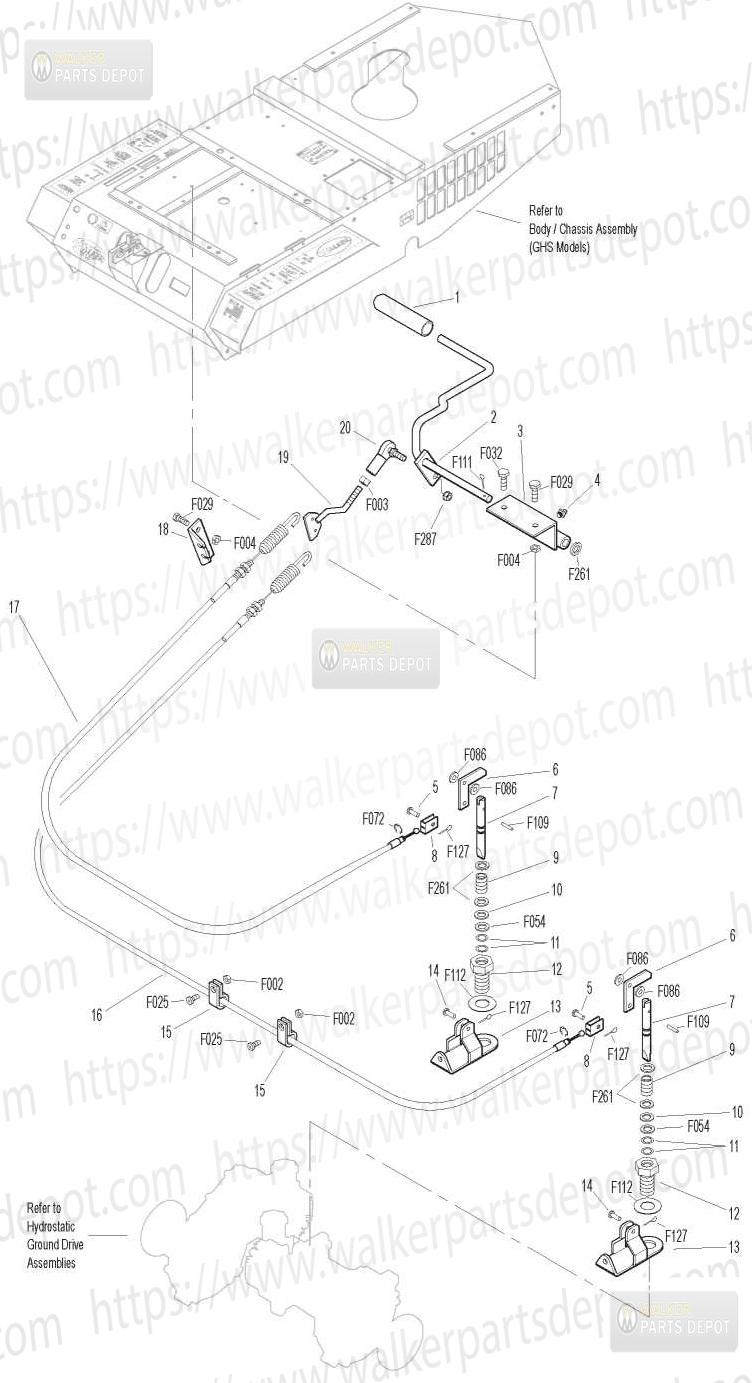

PARTS > MC MANUALS > 2004-11-01, 6000-10, Serial 66220-85834 > Parking Brake Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	7406-1	Handle GripRed	$3.02	Add to Cart
2	7406-8	Parking Brake Lvr (4-1/4)	$15.15	Add to Cart
3	7406-2	Lever Mount	$16.61	Add to Cart
4	5830	Grease Fitting 1428	$2.47	Add to Cart
5	7407	Clevis Pin 316x12	$2.89	Add to Cart
6	7404	Brake Actuator Arm	$2.54	Add to Cart
7	7405	Pin Transmission Lock	$25.41	Add to Cart
8	7402	Clevis	$4.68	Add to Cart
9	7408	Compress Spg 12x34	$2.87	Add to Cart
10	7415	Rubber Dust Shield 58x38x132	$3.04	Add to Cart
11	5567-3	ORing 14x38	$0.25	Add to Cart
12	7403	Plunger BushingGear Axle	$23.58	Add to Cart
13	7404-1	Brake Actuator Mount	$10.87	Add to Cart
14	7412	Clevis Pin 316x58	$1.42	Add to Cart
15	5833	Cable Clamp 14	$1.30	Add to Cart
16	7410	Brake Cntrl CbleLH255	$17.59	Add to Cart
17	7409	Brake Cntrl CbleRH205	$17.59	Add to Cart
18	7401-3	Cable Mount Bracket	$5.66	Add to Cart
19	7401-1	Cable Pull Rod	$15.25	Add to Cart
20	5552	Ball Joint 1428	$14.92	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F003	1428 Hex Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F032	1420x34 Hex Bolt	$0.50	Add to Cart
	F054	AN960616 Washer	$0.29	Add to Cart
	F072	14 E Retainer Ring	$0.34	Add to Cart
	F086	10 SAE Washer	$0.18	Add to Cart
	F109	18x58 Roll Pin	$0.18	Add to Cart
	F111	18x34 Cotter Pin	$0.18	Add to Cart
	F112	58x114x03 Washer	$1.32	Add to Cart
	F127	116x12 Cotter Pin	$0.18	Add to Cart
	F261	AN960616L Washer	$0.22	Add to Cart
	F287	1428 Keps Nut	$0.65	Add to Cart
