Part Lookup Tool

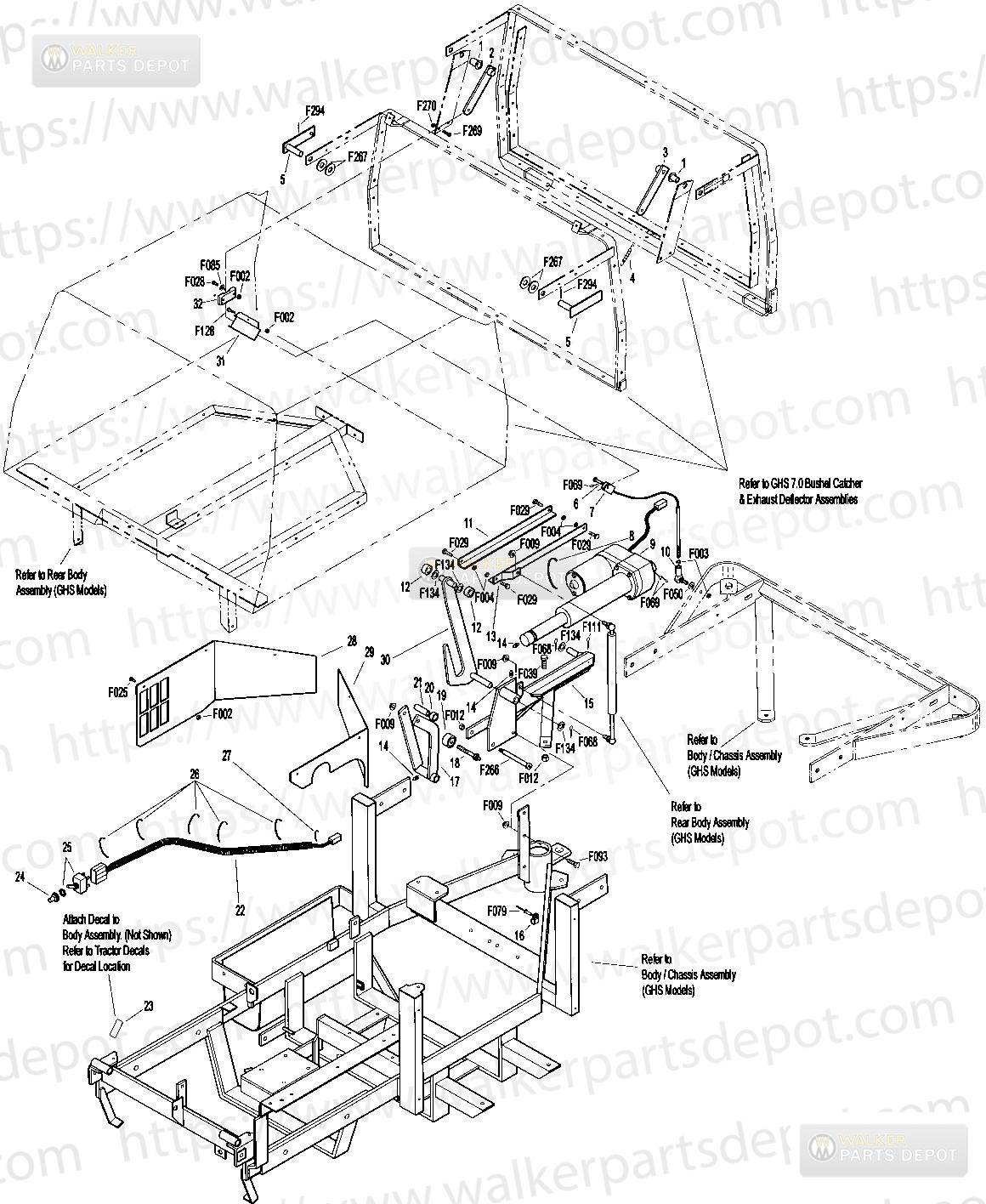

PARTS > MD MANUALS > 1998-01-20, 7000-2, Serial 29676-60191 > Power Dump:

Diagram #	Part #	Description	Price	Add to Cart
1	7620-3	Pivot Bushing 12x916	$10.49	Add to Cart
2	7612-2	DoorActuatorArm, RH
3	7612-1	DoorActuatorArm, LH
4	7610-5	Extension Spg 14x278	$22.57	Add to Cart
5	7613	Door Actuator
6	7523	Clevis Pin WHole 14x916	$0.90	Add to Cart
7	7623	Power Dump Cable70 1978	$20.14	Add to Cart
8	5975-7	Cable Tie 50x11	$0.72	Add to Cart
9	7621	Linear Act 1314 OAL	$692.37	Add to Cart
10	5552	Ball Joint 1428	$14.92	Add to Cart
11	7628	Channel Angle, RH
12	7620-9	Roller Wheel	$8.11	Add to Cart
13	7629	Channel AngleLH	$21.68	Add to Cart
14	5830	Grease Fitting 1428	$2.47	Add to Cart
15	7626-0	Actuator Mount70	$78.44	Add to Cart
16	5832	Cable Clamp 12 203 Hole	$1.87	Add to Cart
17	7627	Front Actuator Mount	$43.82	Add to Cart
18	7624-1	Roller Bearing Bolt	$14.97	Add to Cart
19	7624	Sealed Needle Bearing	$27.24	Add to Cart
20	7630-1	Spacer
21	7630-2	Ram Pivot
22	7622	Wire Harness PD	$43.64	Add to Cart
23	7633	NR Decal Power DumpLexan	$14.69	Add to Cart
24	6623-1	Switch Boot	$13.59	Add to Cart
25	6623	Toggle Switch	$37.09	Add to Cart
26	5975-3	Cable Tie 50x7	$0.36	Add to Cart
27	5975-1	Cable Tie 18x334	$0.34	Add to Cart
28	7104-9	Rear Body Panel, RH
29	7104-5	Rear Body Panel LHPD	$19.25	Add to Cart
30	7625	Fork	$41.36	Add to Cart
31	7620-12	NR Cable Rod Guide70	$5.16	Add to Cart
32	7620-6	Cable Guide	$11.97	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F003	1428 Hex Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F012	3816 Keps Nut	$0.79	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F028	1024x34 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F039	3816x114 Hex Bolt	$1.42	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F068	18x1 Cotter Pin	$0.18	Add to Cart
	F069	332x12 Cotter Pin	$0.18	Add to Cart
	F079	66AAD Alum Pop Rivet 316 Diax 38 Grip	$0.65	Add to Cart
	F085	316 Rivet Backup Washer	$0.44	Add to Cart
	F093	51618x1 Hex Bolt	$0.94	Add to Cart
	F111	18x34 Cotter Pin	$0.18	Add to Cart
	F128	1024x38 PTHMS	$0.29	Add to Cart
	F134	AN960816L Washer	$0.65	Add to Cart
	F266	12x234 Shoulder Bolt	$7.20	Add to Cart
	F267	12x1x116 Washer	$2.26	Add to Cart
	F269	1032x58 PTHMS	$0.18	Add to Cart
	F270	1032 Cap Nut	$1.44	Add to Cart
	F294	3/16x1 Coiled Spring Pin (SS)
