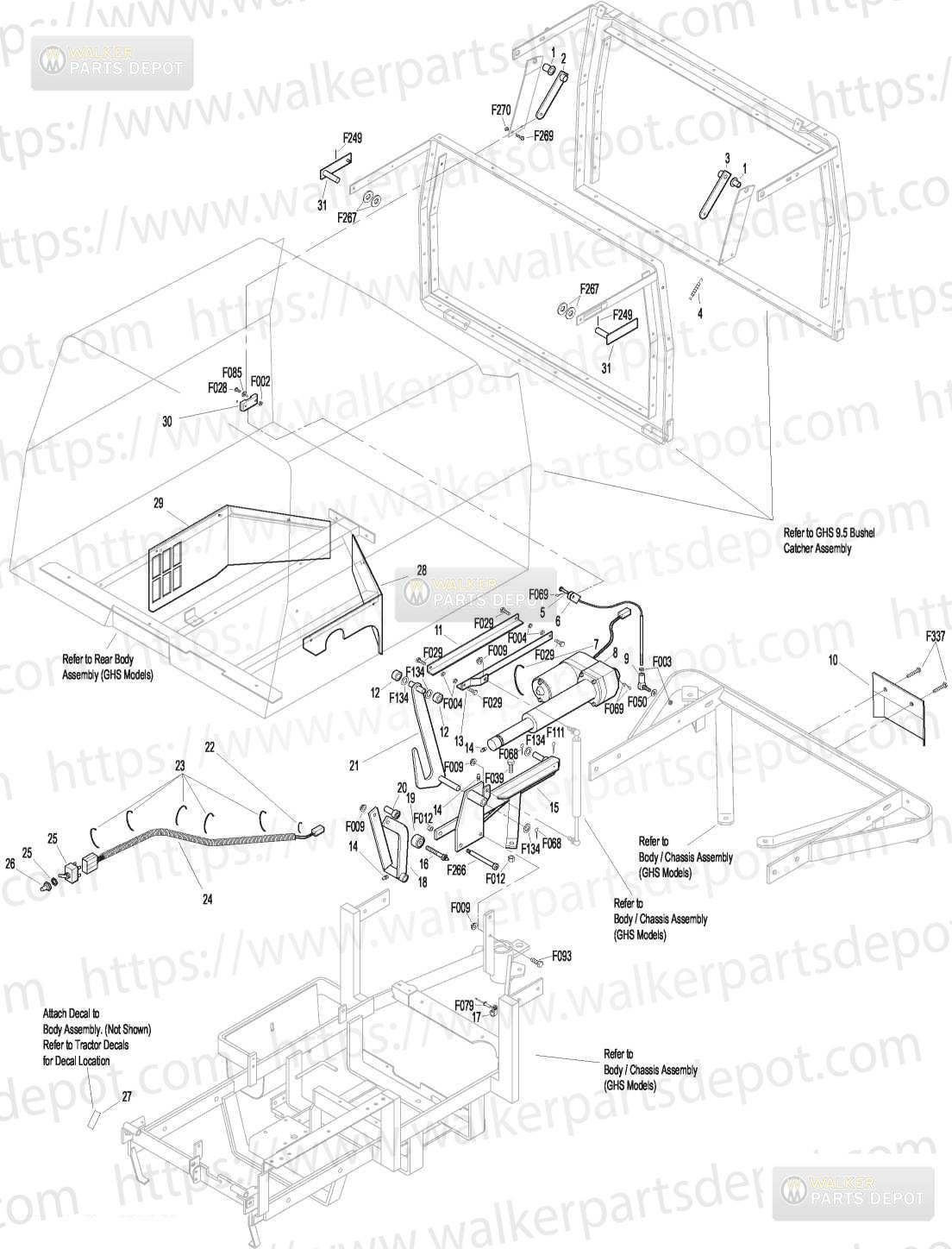

PARTS > MD MANUALS > 2003-05-12, 7000-5, Serial 60192-72867 > Power Dump Kit (9.5 Bushel Catcher):

Diagram #	Part #	Description	Price	Add to Cart
1	7620-3	Pivot Bushing 12x916	$10.49	Add to Cart
2	7612-2	Door Actuator Arm, RH
3	7612-1	Door Actuator Arm, LH
4	7610-5	Extension Spg 14x278	$22.57	Add to Cart
5	7523-2	Clevis Pin WHole 14x58	$1.25	Add to Cart
6	7623-2	Power Dump Cable 95 2478	$24.62	Add to Cart
7	5975-7	Cable Tie 50x11	$0.72	Add to Cart
8	7721	Linear Actuator (13.898)	$544.62	Add to Cart
9	5552	Ball Joint 1428	$14.92	Add to Cart
10	8620-5	Guard Pwr Dump Motor	$22.88	Add to Cart
11	7628-1	Channel AngleRH	$13.78	Add to Cart
12	7620-9	Roller Wheel	$8.11	Add to Cart
13	7629	Channel AngleLH	$21.68	Add to Cart
14	5830	Grease Fitting 1428	$2.47	Add to Cart
15	7636-1	Actuator Mount	$168.95	Add to Cart
16	7624-1	Roller Bearing Bolt	$14.97	Add to Cart
17	5832	Cable Clamp 12 203 Hole	$1.87	Add to Cart
18	7627	Front Actuator Mount	$43.82	Add to Cart
19	7624	Sealed Needle Bearing	$27.24	Add to Cart
20	7630-3	Ram Pivot & Spacer	$9.88	Add to Cart
21	7625	Fork	$41.36	Add to Cart
22	5975-1	Cable Tie 18x334	$0.34	Add to Cart
23	5975-3	Cable Tie 50x7	$0.36	Add to Cart
24	7622	Wire Harness PD	$43.64	Add to Cart
25	6623	Toggle Switch	$37.09	Add to Cart
26	6623-1	Switch Boot	$13.59	Add to Cart
27	7633	NR Decal Power DumpLexan	$14.69	Add to Cart
28	7104-5	Rear Body Panel LHPD	$19.25	Add to Cart
29	8105-4	Rear Body Panel RHPD Preclean9731199ON	$26.93	Add to Cart
30	7620-6	Cable Guide	$11.97	Add to Cart
31	7613	Door Actuator
	F002	1024 Keps Nut	$0.18	Add to Cart
	F003	1428 Hex Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F012	3816 Keps Nut	$0.79	Add to Cart
	F028	1024x34 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F039	3816x114 Hex Bolt	$1.42	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F068	18x1 Cotter Pin	$0.18	Add to Cart
	F069	332x12 Cotter Pin	$0.18	Add to Cart
	F079	66AAD Alum Pop Rivet 316 Diax 38 Grip	$0.65	Add to Cart
	F085	316 Rivet Backup Washer	$0.44	Add to Cart
	F093	51618x1 Hex Bolt	$0.94	Add to Cart
	F111	18x34 Cotter Pin	$0.18	Add to Cart
	F134	AN960816L Washer	$0.65	Add to Cart
	F249	M10 Split Lock Washer	$0.36	Add to Cart
	F266	12x234 Shoulder Bolt	$7.20	Add to Cart
	F267	12x1x116 Washer	$2.26	Add to Cart
	F269	1032x58 PTHMS	$0.18	Add to Cart
	F270	1032 Cap Nut	$1.44	Add to Cart
	F337	1420x58 SelfTap Bolt	$0.94	Add to Cart
