Part Lookup Tool

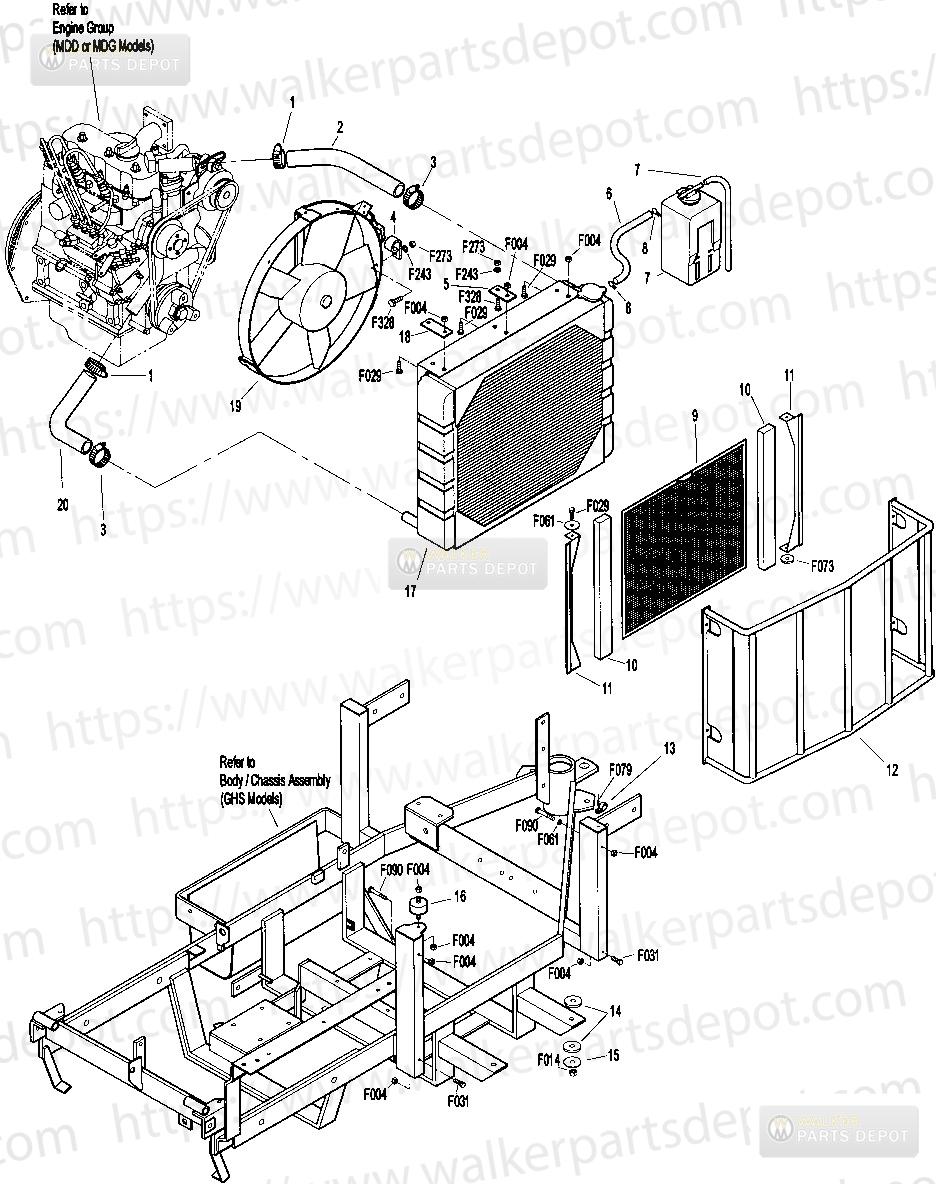

PARTS > MD MANUALS > 1998-01-20, 7000-2, Serial 29676-60191 > Radiator:

Diagram #	Part #	Description	Price	Add to Cart
1	7840-3	Hose Clamp 916 to 1116	$3.05	Add to Cart
2	7017-3	Upper Radtr Hose110Bend	$19.64	Add to Cart
3	7840-4	Hose Clamp 34 to 112	$3.12	Add to Cart
4	7833	Cable Clamp 78x14	$2.72	Add to Cart
5	7436	Fan Mount Strap	$3.84	Add to Cart
6	7015-6	Recovery Tank Hose
7	NS	Coolant Recovery Tank (19059-72090 Kubota)
8	NS	Recovery Tank Hose Clamp (15501-72470 Kubota)
9	7425	Radiator Screen WDebris Plate	$86.56	Add to Cart
10	7431	Radiator Channel Seal (1/4 x 1/2 x 8)
11	7426	Screen Channel	$11.09	Add to Cart
12	7430	Radiator Guard	$93.83	Add to Cart
13	5832	Cable Clamp 12 203 Hole	$1.87	Add to Cart
14	7434	Washer 38x114x14	$4.25	Add to Cart
15	5841	Retainer Washer 38x114	$1.42	Add to Cart
16	7432	Shock Mount 10ODx75	$7.16	Add to Cart
17	7427	RadiatorD	$1,479.00	Add to Cart
18	7435	Radiator Brace	$7.42	Add to Cart
19	7429	Radiator Cooling Fan
20	7017-2	Lwr Radiator Hose3Bends	$23.10	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F014	3816 ESNA Nut	$0.65	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F031	1420x58 Hex Bolt	$0.50	Add to Cart
	F061	14 Star Lock Wshr	$0.18	Add to Cart
	F073	14x15 Fender Washer	$0.50	Add to Cart
	F079	66AAD Alum Pop Rivet 316 Diax 38 Grip	$0.65	Add to Cart
	F090	1420x212 Hex Bolt	$1.30	Add to Cart
	F243	M6 Split Lock Washer	$0.18	Add to Cart
	F273	M6x10 Nut	$0.22	Add to Cart
	F328	M6x10x16 Hex Bolt	$0.72	Add to Cart
