Part Lookup Tool

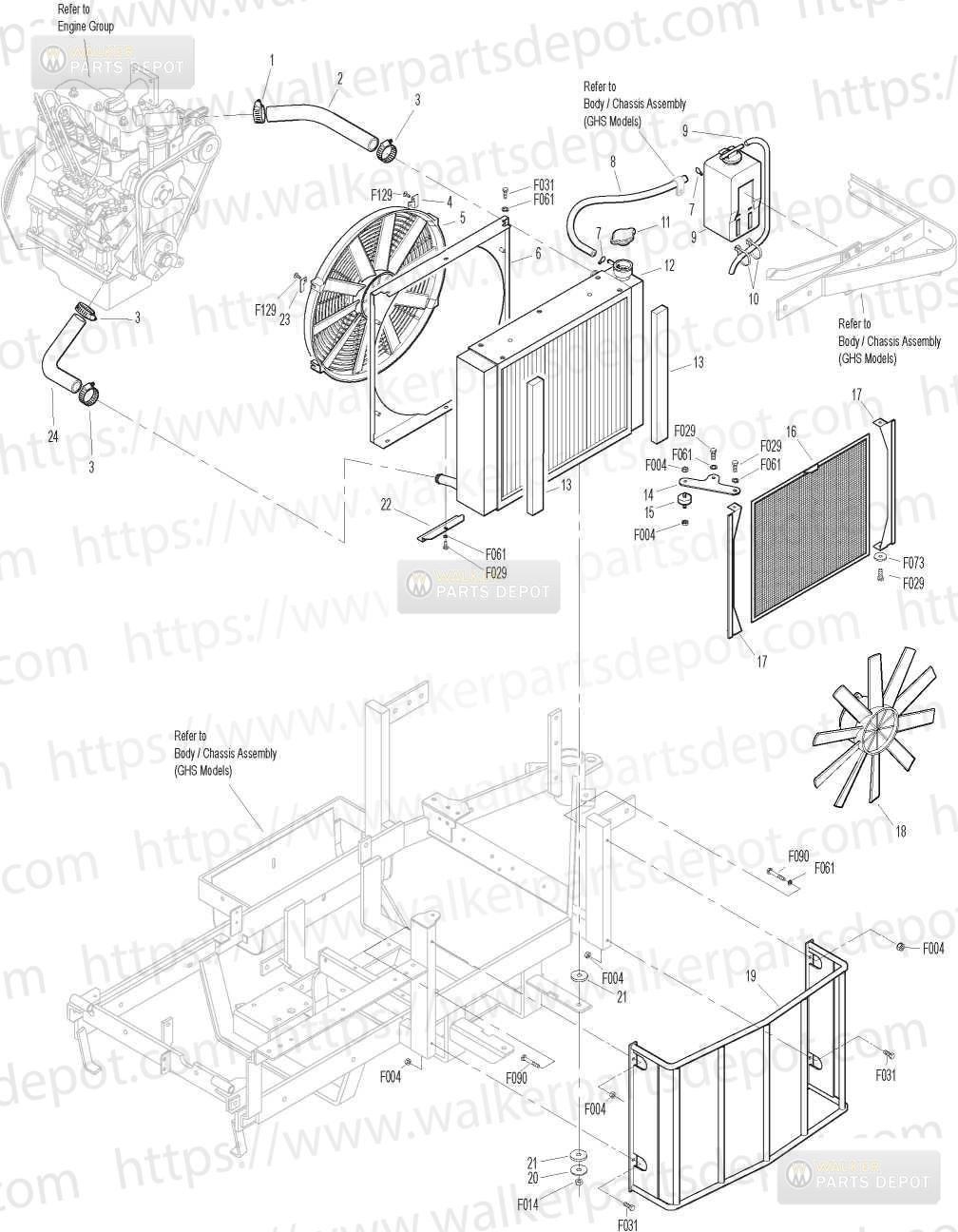

PARTS > MD MANUALS > 2007-09-15, 7000-10, Serial 92037-103913 > Radiator:

Diagram #	Part #	Description	Price	Add to Cart
1	7840-4	Hose Clamp 34 to 112	$3.12	Add to Cart
2	7017-3	Upper Radtr Hose110Bend	$19.64	Add to Cart
3	7840-3	Hose Clamp 916 to 1116	$3.05	Add to Cart
4	7427-21	Fan Mount TabLH	$5.20	Add to Cart
5	7429-6	Radiator Cooling Fan	$410.34	Add to Cart
6	7427-5	Radiator Fan ShroudDD	$37.44	Add to Cart
7	NS	Recovery Tank Hose Clamp (15501-72470 Kubota)
8	7015-6	Recovery Tank Hose (60")
9	NS	Coolant Recovery Tank and Hose (19059-72090 Kubota)
10	5975-3	Cable Tie 50x7	$0.36	Add to Cart
11	7427-9	NR Radiator Cap	$33.42	Add to Cart
12	7427	RadiatorD	$1,479.00	Add to Cart
13	7431-1	Radiator Channel Seal 14x12x135	$4.63	Add to Cart
14	7435	Radiator Brace	$7.42	Add to Cart
15	7432	Shock Mount 10ODx75	$7.16	Add to Cart
16	7425	Radiator Screen WDebris Plate	$86.56	Add to Cart
17	7426	Screen Channel	$11.09	Add to Cart
18	7429-7	Fan Blade Replacement	$70.06	Add to Cart
19	7430	Radiator Guard	$93.83	Add to Cart
20	5841	Retainer Washer 38x114	$1.42	Add to Cart
21	7434	Washer 38x114x14	$4.25	Add to Cart
22	7427-7	Debris Shield Shroud	$6.00	Add to Cart
23	7427-22	Fan Mount TabRH	$5.20	Add to Cart
24	7017-2	Lwr Radiator Hose3Bends	$23.10	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F014	3816 ESNA Nut	$0.65	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F031	1420x58 Hex Bolt	$0.50	Add to Cart
	F061	14 Star Lock Wshr	$0.18	Add to Cart
	F073	14x15 Fender Washer	$0.50	Add to Cart
	F089	Belleville Washer SS	$2.62	Add to Cart
	F090	1420x212 Hex Bolt	$1.30	Add to Cart
	F129	1024x12 PTHMS	$0.34	Add to Cart
	F143	1032x14 Whiz Lock Bolt	$1.74	Add to Cart
	F222	Thrust Washer For 74297	$2.99	Add to Cart
	F237	Spring Ring For 74297	$1.73	Add to Cart
	F254	Fender Washer For 74297 Vendor 6501121	$1.66	Add to Cart
