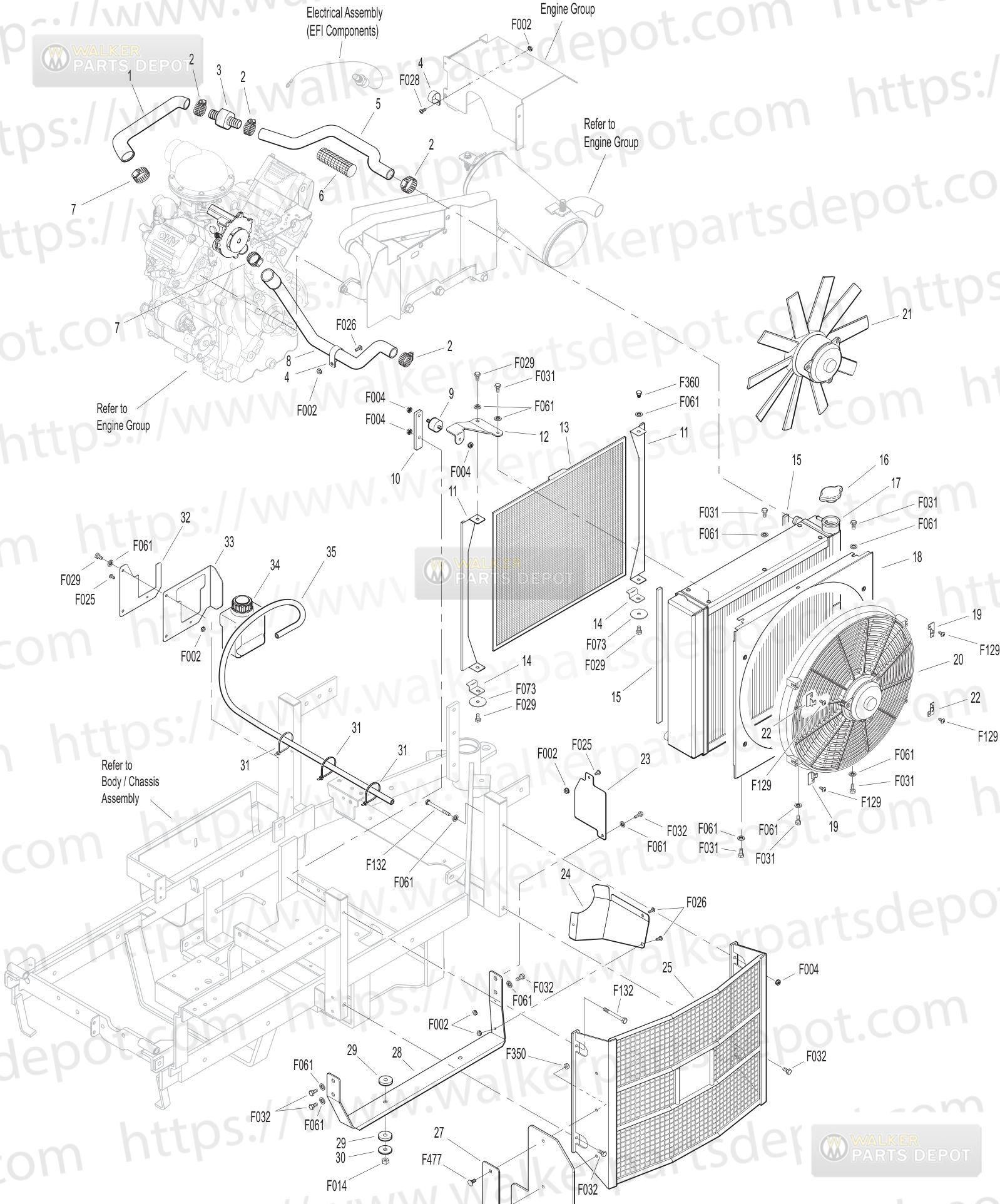

PARTS > MT MANUALS > 2020-05-14, 8000-42, Serial 150226-159965 > Radiator Group:

Diagram #	Part #	Description	Price	Add to Cart
1	7017-12	NR Upper Radiator HoseRH	$15.38	Add to Cart
2	7840-3	Hose Clamp 916 to 1116	$3.05	Add to Cart
3	8531-13	NR Tee Coupling	$41.29	Add to Cart
4	7833-2	Cable Clamp 1x14	$2.84	Add to Cart
5	7017-11	NR Upper Radiator HoseLH	$35.35	Add to Cart
6	8123-2	Insultherm 1x6	$10.49	Add to Cart
7	7840-4	Hose Clamp 34 to 112	$3.12	Add to Cart
8	7017-6	NR Lower Radiator Hose	$33.88	Add to Cart
9	7432	Shock Mount 10ODx75	$7.16	Add to Cart
10	7426-3	Rubber Isolator Mount	$7.08	Add to Cart
11	7426-5	Screen Channel	$19.05	Add to Cart
12	7426-7	Radiator Brace	$9.43	Add to Cart
13	7425-3	Radiator Screen	$69.13	Add to Cart
14	7426-8	Screen Stop	$9.22	Add to Cart
15	7431-2	Radiator Channel Seal	$4.63	Add to Cart
16	7427-9	NR Radiator Cap	$33.42	Add to Cart
17	7427-13	NR RadiatorMTL	$731.85	Add to Cart
18	7426-6	Radiator Fan ShroudMTL	$33.26	Add to Cart
19	7427-22	Fan Mount TabRH	$5.20	Add to Cart
20	7429-6	Radiator Cooling Fan	$410.34	Add to Cart
21	7429-7	Fan Blade Replacement	$70.06	Add to Cart
22	7427-21	Fan Mount TabLH	$5.20	Add to Cart
23	8532-2	Rear Shield	$7.90	Add to Cart
24	8531-6	NR Lower Shield	$18.56	Add to Cart
25	7430-6	NR Radiator Guard MT	$216.09	Add to Cart
26	7430-11	Radiator Guard Flap	$18.55	Add to Cart
27	7430-10	Back Up Plate	$10.31	Add to Cart
28	7426-4	NR Radiator Mount	$28.42	Add to Cart
29	7434	Washer 38x114x14	$4.25	Add to Cart
30	5841	Retainer Washer 38x114	$1.42	Add to Cart
31	5975-3	Cable Tie 50x7	$0.36	Add to Cart
32	7427-11	Recovery Tank Keeper	$11.22	Add to Cart
33	7427-10	Recovery Tank Mount	$18.59	Add to Cart
34	7427-3	Coolant Recovery Tank	$25.44	Add to Cart
35	7015-13	NR Recovery Tank HoseMTL 25	$5.62	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F014	3816 ESNA Nut	$0.65	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F026	1024x12 PPHMS	$0.18	Add to Cart
	F028	1024x34 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F031	1420x58 Hex Bolt	$0.50	Add to Cart
	F032	1420x34 Hex Bolt	$0.50	Add to Cart
	F061	14 Star Lock Wshr	$0.18	Add to Cart
	F073	14x15 Fender Washer	$0.50	Add to Cart
	F129	1024x12 PTHMS	$0.34	Add to Cart
	F132	1420x234 Hex Bolt	$1.42	Add to Cart
	F350	1420 LP Nylock	$0.65	Add to Cart
	F360	1420x38 Hex Bolt	$0.94	Add to Cart
	F477	1420x58 Carriage Bolt	$1.30	Add to Cart
