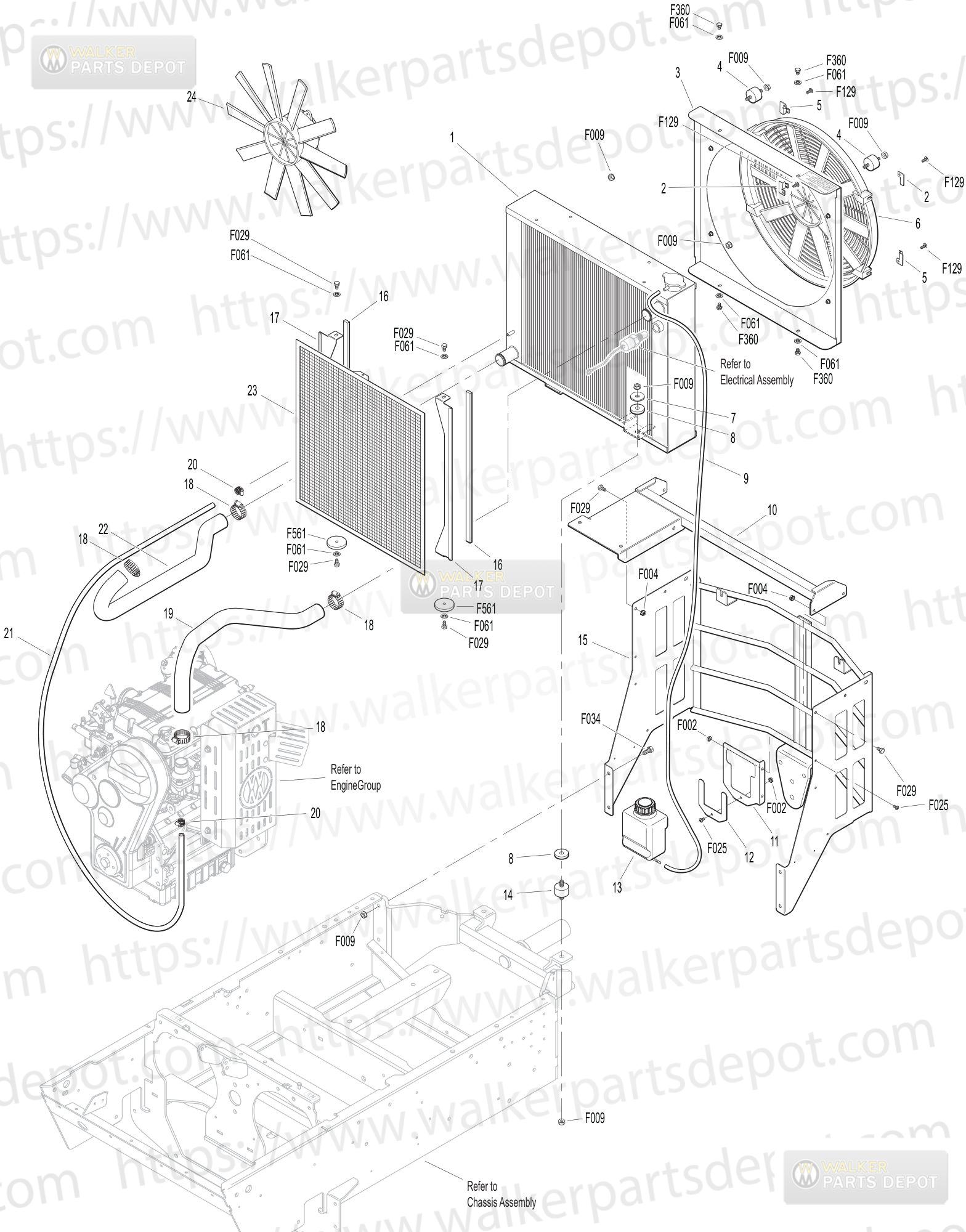

PARTS > MH MANUALS > 2023-08-24, 2000-45, Serial 182266-190454 > Radiator Group:

Diagram #	Part #	Description	Price	Add to Cart
1	2427-5	RadiatorMH24d	$925.26	Add to Cart
2	7427-21	Fan Mount TabLH	$5.20	Add to Cart
3	2425-3	Radiator (Includes
4	7432	Shock Mount 10ODx75	$7.16	Add to Cart
5	7427-22	Fan Mount TabRH	$5.20	Add to Cart
6	7429-6	Radiator Cooling Fan	$410.34	Add to Cart
7	5841	Retainer Washer 38x114	$1.42	Add to Cart
8	7434	Washer 38x114x14	$4.25	Add to Cart
9	M204	Recovery
10	2088-4	Air Cleaner
11	2427-6	Recovery
12	2427-2	Recovery Tank Keeper	$8.16	Add to Cart
13	7427-18	Coolant Recovery Tank	$43.36	Add to Cart
14	7440-5	Shock Mount 114x34	$8.21	Add to Cart
15	2427	Radiator
16	7431-3	Radiator Channel Seal	$4.44	Add to Cart
17	2425-2	Screen Channel
18	7840-4	Hose Clamp 34 to 112	$3.12	Add to Cart
19	2012-3	Upper Radiator Hose	$25.21	Add to Cart
20	7840-6	Hose Clamp 516 to 78	$3.70	Add to Cart
21	M247	Fuel Line Nitrile516	$13.01	Add to Cart
22	2012-4	Lower Radiator Hose	$25.08	Add to Cart
23	2425-1	Radiator ScreenMH24d	$100.17	Add to Cart
24	7429-7	Fan Blade Replacement	$70.06	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F034	51618x34 Hex Bolt	$0.79	Add to Cart
	F061	14 Star Lock Wshr	$0.18	Add to Cart
	F129	1024x12 PTHMS	$0.34	Add to Cart
	F360	1420x38 Hex Bolt	$0.94	Add to Cart
	F561	14x134 Fender Washer	$2.88	Add to Cart
	M204	- 5/16" ID 70 Durometer EPDM hose
	M247	Fuel Line Nitrile516	$13.01	Add to Cart
