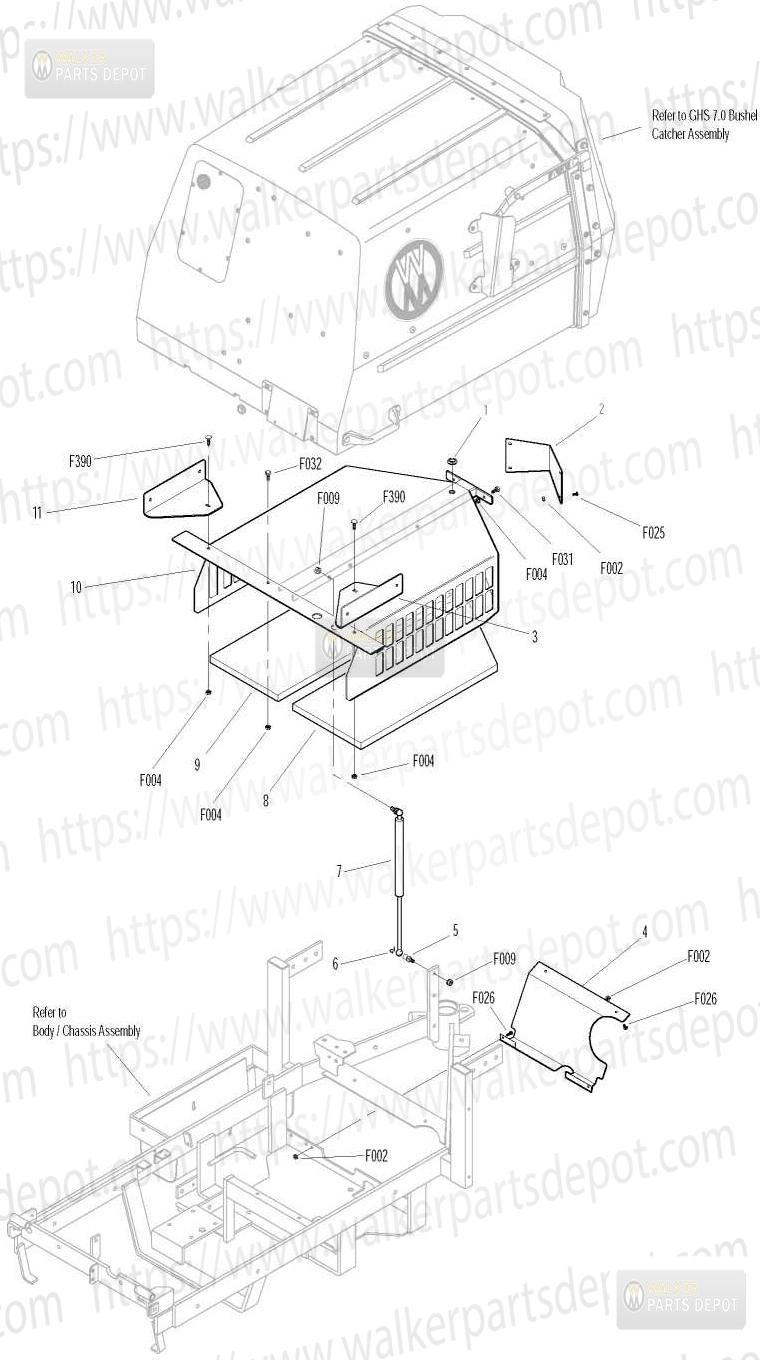

PARTS > MC MANUALS > 2013-11-25, 6000-17, Serial 125718-140306 > Rear Body Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	5976	Grommet 38x1116	$1.08	Add to Cart
2	5105-1	Rear Body CoverMC	$11.93	Add to Cart
3	8515-14	Catcher Handle Plate RH	$18.13	Add to Cart
4	8389-4	Splash Guard	$14.65	Add to Cart
5	7146	13mm Ball Stud	$4.92	Add to Cart
6	7147	Spring Clip	$1.44	Add to Cart
7	7145	Gas Spring Assembly	$39.60	Add to Cart
8	7190-1	Insulation Foam PadLH	$24.27	Add to Cart
9	7190-2	Insulation Foam PadRH	$19.23	Add to Cart
10	5105	Rear Body Catcher Support Frm	$214.83	Add to Cart
11	8515-13	Catcher Handle Plate LH	$18.13	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F026	1024x12 PPHMS	$0.18	Add to Cart
	F031	1420x58 Hex Bolt	$0.50	Add to Cart
	F032	1420x34 Hex Bolt	$0.50	Add to Cart
	F390	1420x78 Carriage Bolt	$0.65	Add to Cart
