Part Lookup Tool

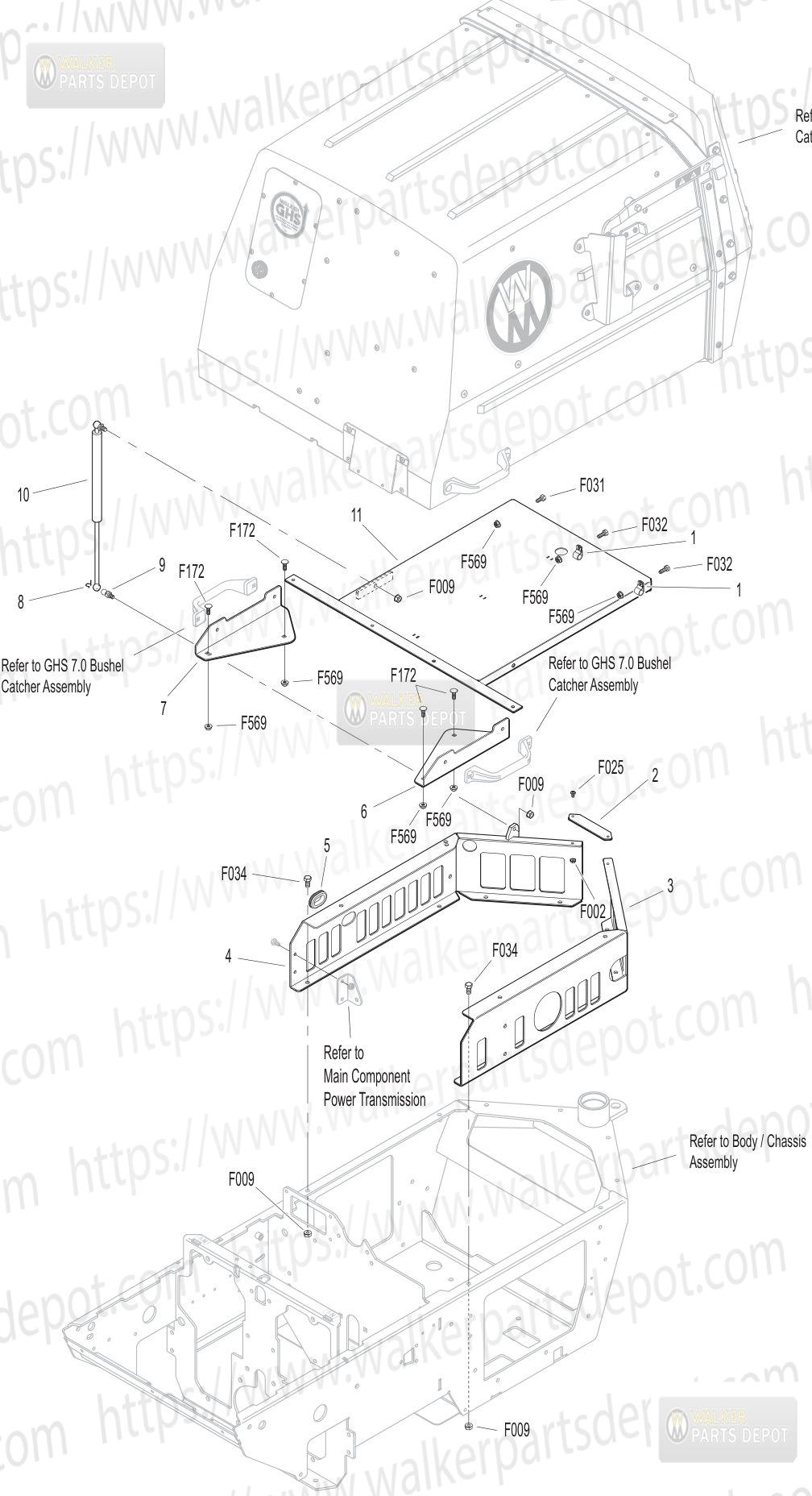

PARTS > MS MANUALS > 2025-09-29, 5000-92, Serial 190349-AND ON > Rear Body Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	6832	Cable Clamp 916x14	$1.32	Add to Cart
2	5100-13	Rear Body Tie-In
3	5100-35	Rear Body Panel, LH
4	5100-36	Rear Body Panel, RH
5	5977-8	Grommet 1x134	$4.12	Add to Cart
6	8515-15	Catcher Handle PlateLH MS18	$17.62	Add to Cart
7	8515-16	Catcher Handle PlateRH MS18	$17.62	Add to Cart
8	7147	Spring Clip	$1.44	Add to Cart
9	7146	13mm Ball Stud	$4.92	Add to Cart
10	7145	Gas Spring Assembly	$39.60	Add to Cart
11	6515	Catcher Support FrameMS	$67.43	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F031	1420x58 Hex Bolt	$0.50	Add to Cart
	F032	1420x34 Hex Bolt	$0.50	Add to Cart
	F034	51618x34 Hex Bolt	$0.79	Add to Cart
	F172	1420x34 Carriage Bolt	$0.50	Add to Cart
	F569	1420 Flange Top Lock Nut	$1.20	Add to Cart
