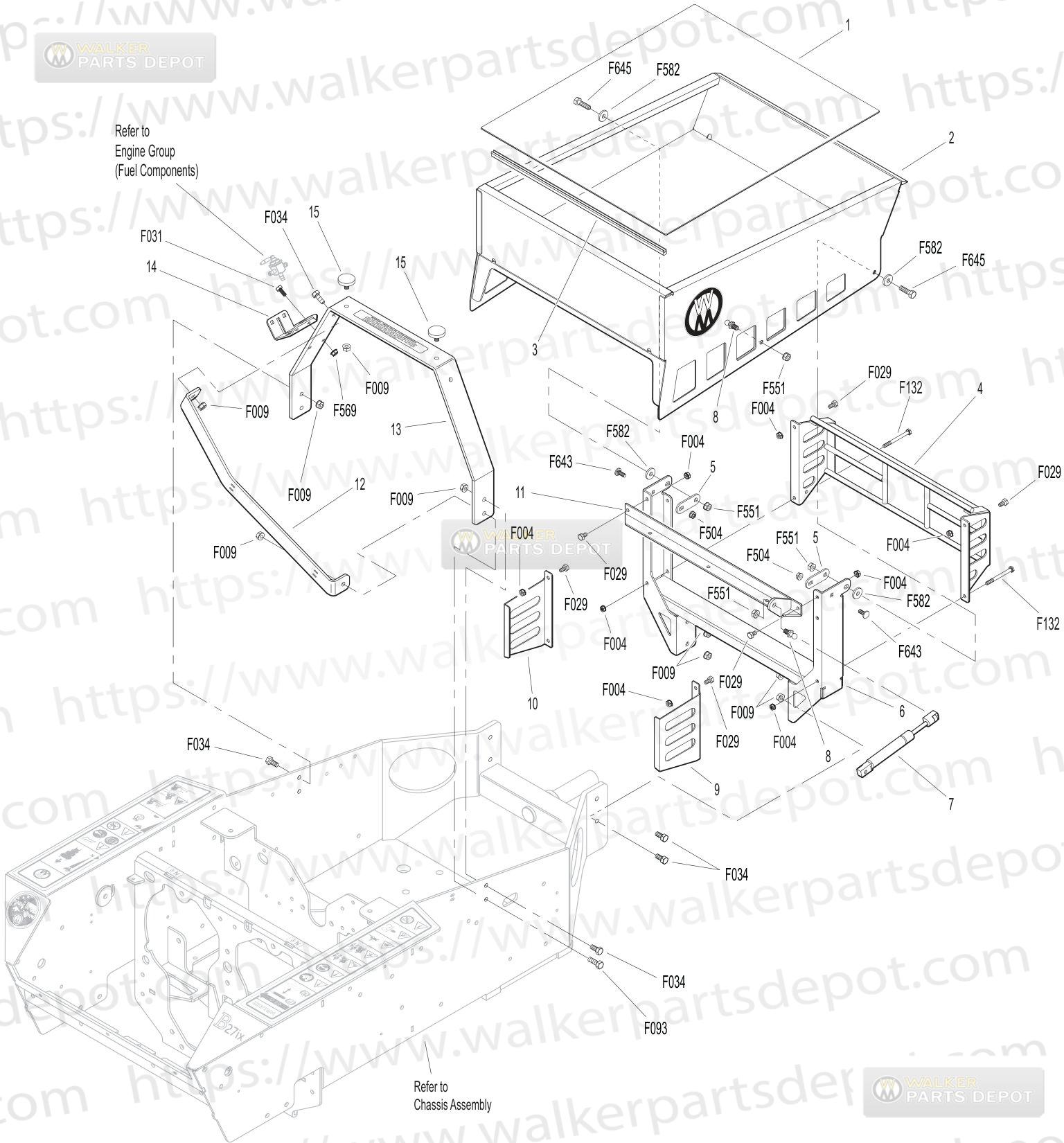

PARTS > MB MANUALS > 2026-04-01, 4000-50, Serial 196174-AND ON > Rear Body Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	8650-13	Bed Liner 1914x22	$39.53	Add to Cart
2	4650-2	Utility BedMB23MB27i	$518.07	Add to Cart
3	M112	Edge Molding Sold By The Foot	$3.12	Add to Cart
4	4013-19	Muffler Guard	$106.47	Add to Cart
5	4013-9	Body Pivot Plate	$6.44	Add to Cart
6	4104-11	Rear Body Support	$68.54	Add to Cart
7	5145-4	Gas Spring Assembly	$16.79	Add to Cart
8	5146	10mm Ball Stud	$3.77	Add to Cart
9	4013-7	Muffler GuardLH	$14.28	Add to Cart
10	4013-8	Muffler GuardRH	$14.28	Add to Cart
11	4104-15	Rear Body Cross Brace	$29.17	Add to Cart
12	4100-11	Body Support Brace
13	4104-17	Body Support
14	2010-52	Fuel Tank Selector / Filter Bracket
15	7844	Rubber Bumper 125x250	$4.06	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F031	1420x58 Hex Bolt	$0.50	Add to Cart
	F034	51618x34 Hex Bolt	$0.79	Add to Cart
	F093	51618x1 Hex Bolt	$0.94	Add to Cart
	F132	1420x234 Hex Bolt	$1.42	Add to Cart
	F504	1420 Whiz Locknut	$0.30	Add to Cart
	F551	51618 Flange Top Lock Nut	$1.06	Add to Cart
	F569	1420 Flange Top Lock Nut	$1.20	Add to Cart
	F582	Washer 516x78x125	$1.99	Add to Cart
	F643	1420x34 Carriage Bolt Flat Head	$2.10	Add to Cart
	F645	51618x118 Hex Bolt	$0.94	Add to Cart
