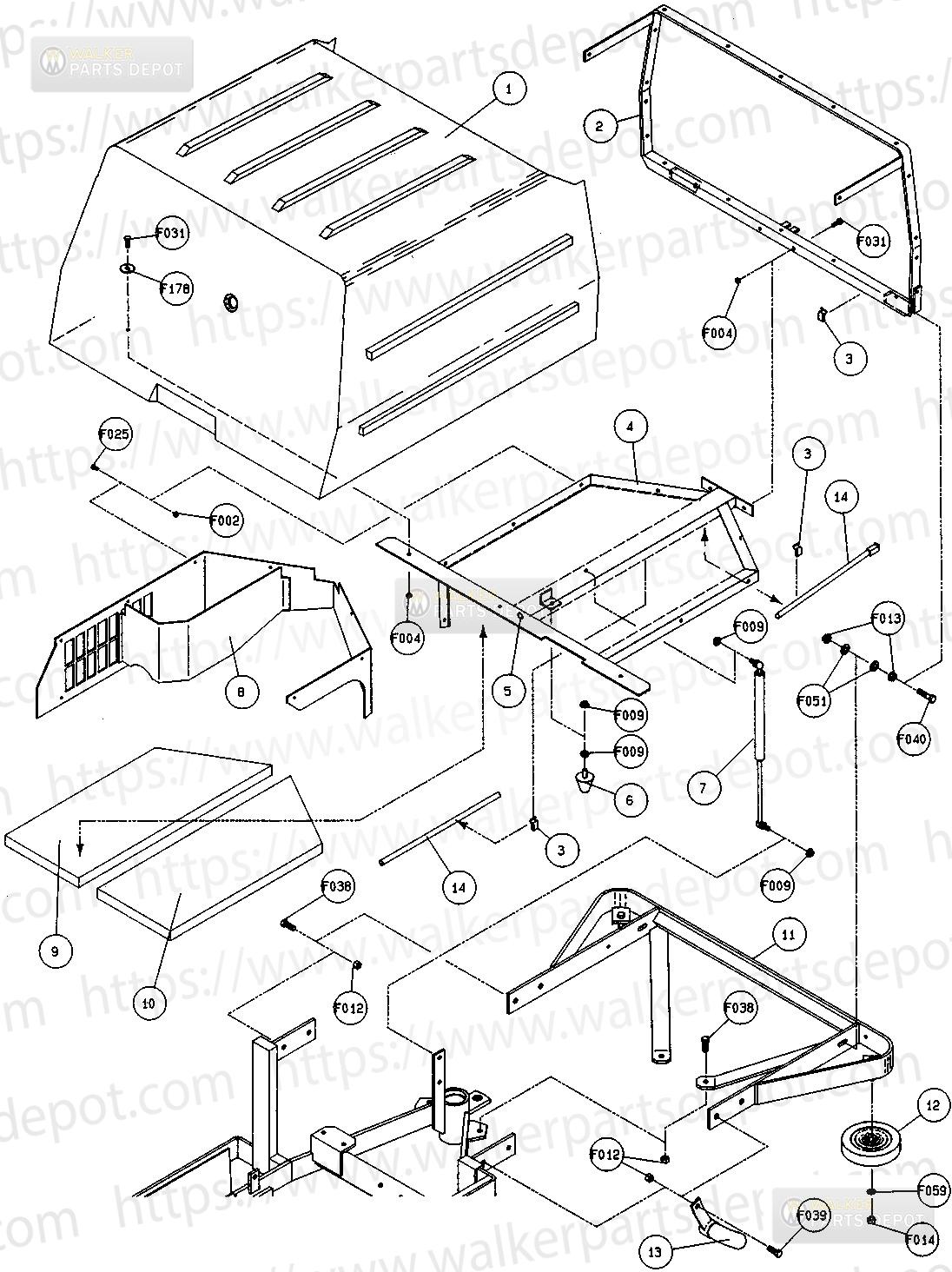

PARTS > MD MANUALS > 1993-03-01, 7895-1, Serial 11756-29675 > Rear Body Assembly (GHS):

Diagram #	Part #	Description	Price	Add to Cart
1	7510-1	7.0 Bushel Catcher, Incl. Door
2	7513	70 Mounting Frame	$76.46	Add to Cart
3	7835	Frame Clip 316	$1.06	Add to Cart
4	7515	70 Catcher Support Frm	$90.13	Add to Cart
5	7976	Nylon Grommet 716	$0.48	Add to Cart
6	5845	Rubber Bumper 150x125	$7.12	Add to Cart
7	7145	Gas Spring Assembly	$39.60	Add to Cart
8	7105-2	Rear Body PanelD	$56.62	Add to Cart
9	7190-2	Insulation Foam PadRH	$19.23	Add to Cart
10	7190-1	Insulation Foam PadLH	$24.27	Add to Cart
11	7516	NRGHS Rear Bumper TEFI	$281.61	Add to Cart
12	5162	Roller Wheel 5 Rubber	$13.40	Add to Cart
13	7013-2	Tail Pipe	$53.80	Add to Cart
14	7944	70 Wire Harness	$24.20	Add to Cart
F002	F002	1024 Keps Nut	$0.18	Add to Cart
F004	F004	1420 Keps Nut	$0.34	Add to Cart
F009	F009	51618 Whiz Locknut	$0.50	Add to Cart
F012	F012	3816 Keps Nut	$0.79	Add to Cart
F013	F013	3816 Whiz Locknut	$0.65	Add to Cart
F014	F014	3816 ESNA Nut	$0.65	Add to Cart
F025	F025	1024x38 PPHMS	$0.18	Add to Cart
F031	F031	1420x58 Hex Bolt	$0.50	Add to Cart
F038	F038	3816x1 Hex Bolt	$1.06	Add to Cart
F039	F039	3816x114 Hex Bolt	$1.42	Add to Cart
F040	F040	3816x112 Hex Bolt	$1.54	Add to Cart
F051	F051	38 SAE Washer	$0.65	Add to Cart
F059	F059	38 Wave Spring Washer	$1.32	Add to Cart
F178	F178	14x1 Fender Washer	$1.42	Add to Cart
