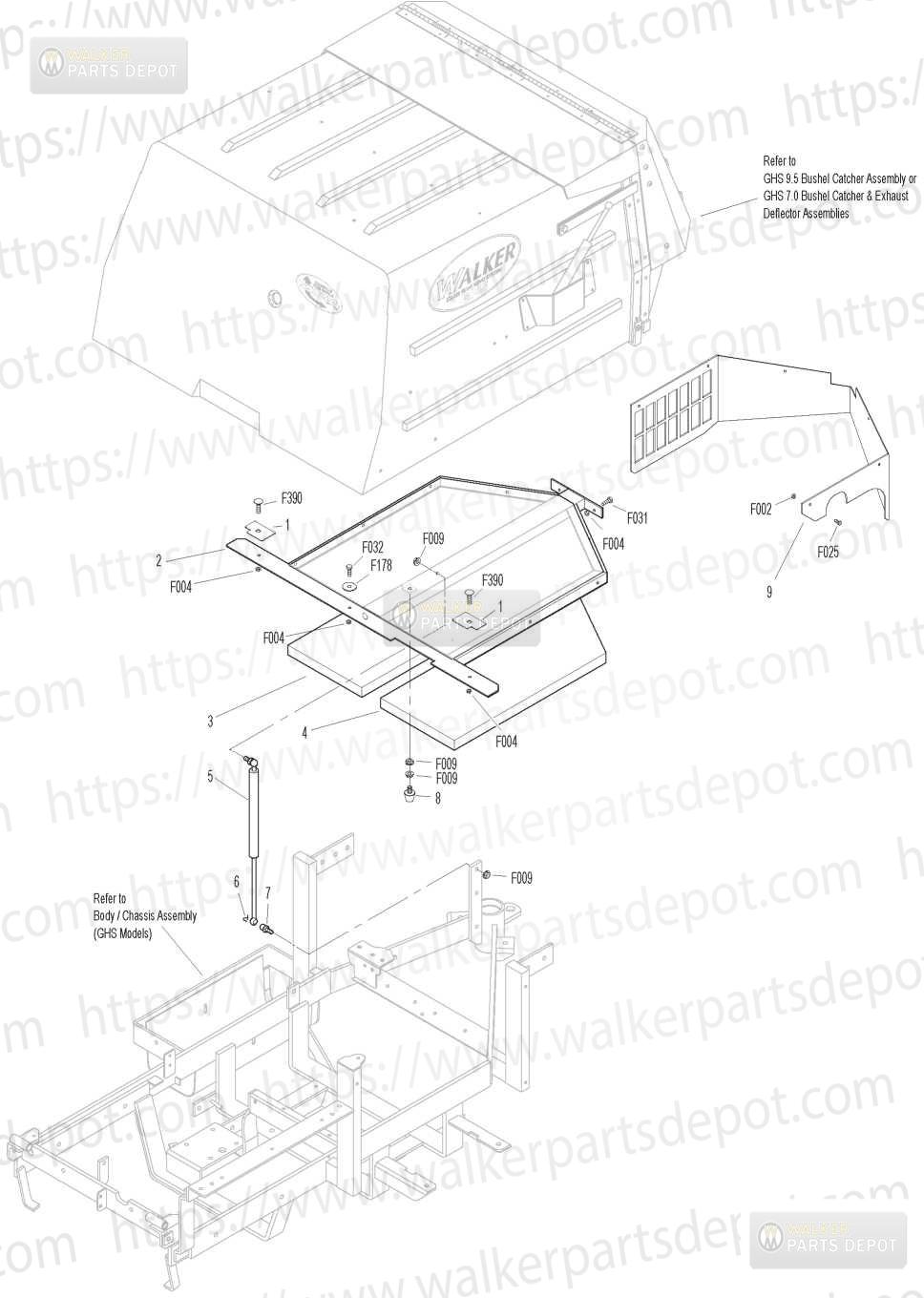

PARTS > MD MANUALS > 2009-06-01, 7000-11, Serial 103914-124859 > Rear Body Assembly (GHS Models):

Diagram #	Part #	Description	Price	Add to Cart
1	8515-10	NR 7095 Ctchr Reinforcing Plate	$6.40	Add to Cart
2	7515-2	7095 Catcher Spprt Frm	$227.64	Add to Cart
3	7190-2	Insulation Foam PadRH	$19.23	Add to Cart
4	7190-1	Insulation Foam PadLH	$24.27	Add to Cart
5	7145	Gas Spring Assembly	$39.60	Add to Cart
6	7147	Spring Clip	$1.44	Add to Cart
7	7146	13mm Ball Stud	$4.92	Add to Cart
8	5845	Rubber Bumper 150x125	$7.12	Add to Cart
9	7105-5	Rear Body PanelD	$46.68	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F031	1420x58 Hex Bolt	$0.50	Add to Cart
	F032	1420x34 Hex Bolt	$0.50	Add to Cart
	F178	14x1 Fender Washer	$1.42	Add to Cart
	F390	1420x78 Carriage Bolt	$0.65	Add to Cart
