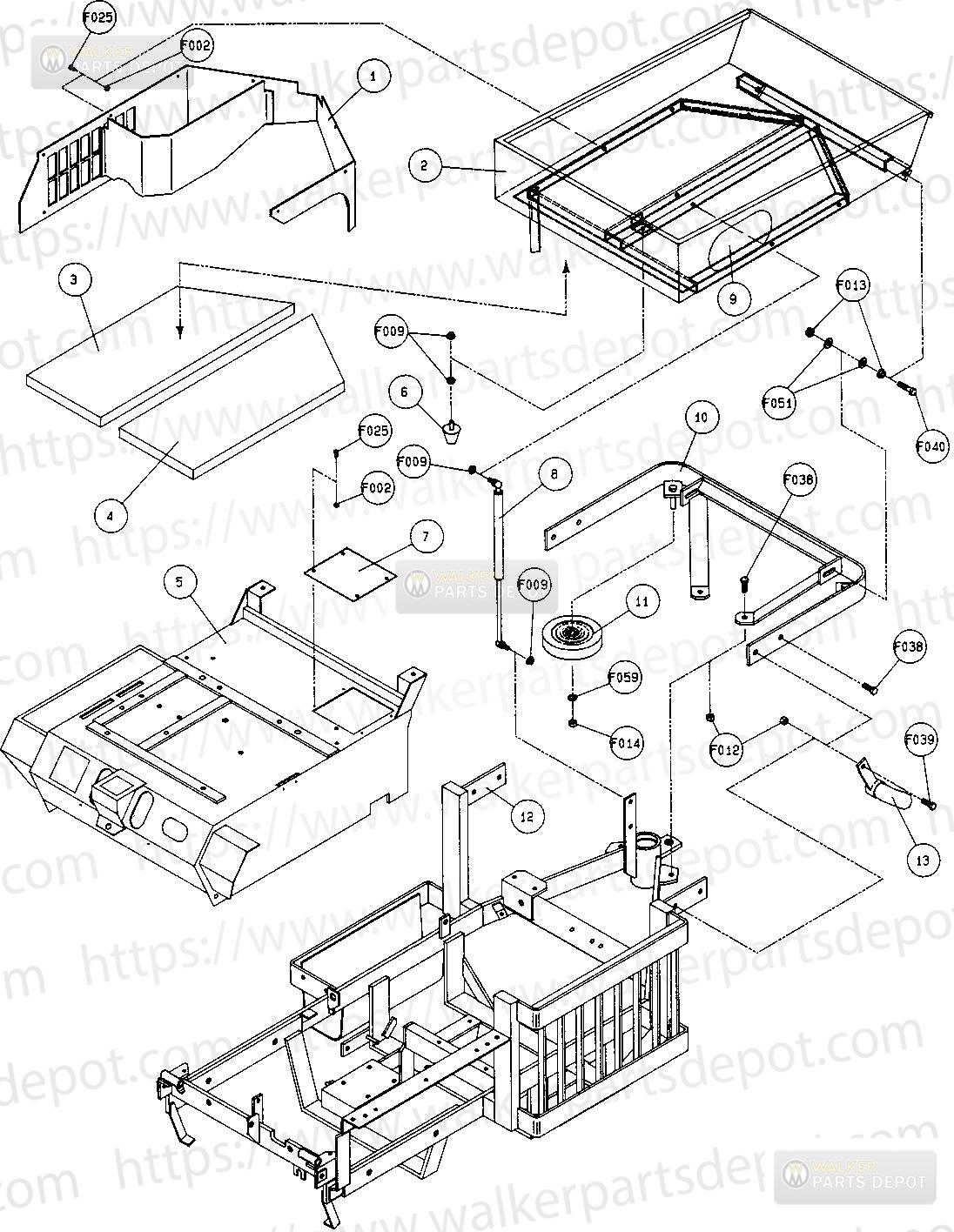

PARTS > MD MANUALS > 1993-03-01, 7895-1, Serial 11756-29675 > Rear Body Assembly (SD):

Diagram #	Part #	Description	Price	Add to Cart
1	7105-2	Rear Body PanelD	$56.62	Add to Cart
2	7650	NR Utility BedD	$346.08	Add to Cart
3	7190-2	Insulation Foam PadRH	$19.23	Add to Cart
4	7190-1	Insulation Foam PadLH	$24.27	Add to Cart
5	7100	Front BodyD	$607.11	Add to Cart
6	5845	Rubber Bumper 150x125	$7.12	Add to Cart
7	7153-2	Cover Plate
8	7145	Gas Spring Assembly	$39.60	Add to Cart
9	5800	NR Decal Walker MowerLexan 4 Round	$9.44	Add to Cart
10	7521	NR Rear Bumper EFITSD	$106.89	Add to Cart
11	5162	Roller Wheel 5 Rubber	$13.40	Add to Cart
12	7300	Chassis Frame (MD)
13	7013-2	Tail Pipe	$53.80	Add to Cart
F002	F002	1024 Keps Nut	$0.18	Add to Cart
F009	F009	51618 Whiz Locknut	$0.50	Add to Cart
F012	F012	3816 Keps Nut	$0.79	Add to Cart
F013	F013	3816 Whiz Locknut	$0.65	Add to Cart
F014	F014	3816 ESNA Nut	$0.65	Add to Cart
F025	F025	1024x38 PPHMS	$0.18	Add to Cart
F038	F038	3816x1 Hex Bolt	$1.06	Add to Cart
F039	F039	3816x114 Hex Bolt	$1.42	Add to Cart
F040	F040	3816x112 Hex Bolt	$1.54	Add to Cart
F051	F051	38 SAE Washer	$0.65	Add to Cart
F059	F059	38 Wave Spring Washer	$1.32	Add to Cart
