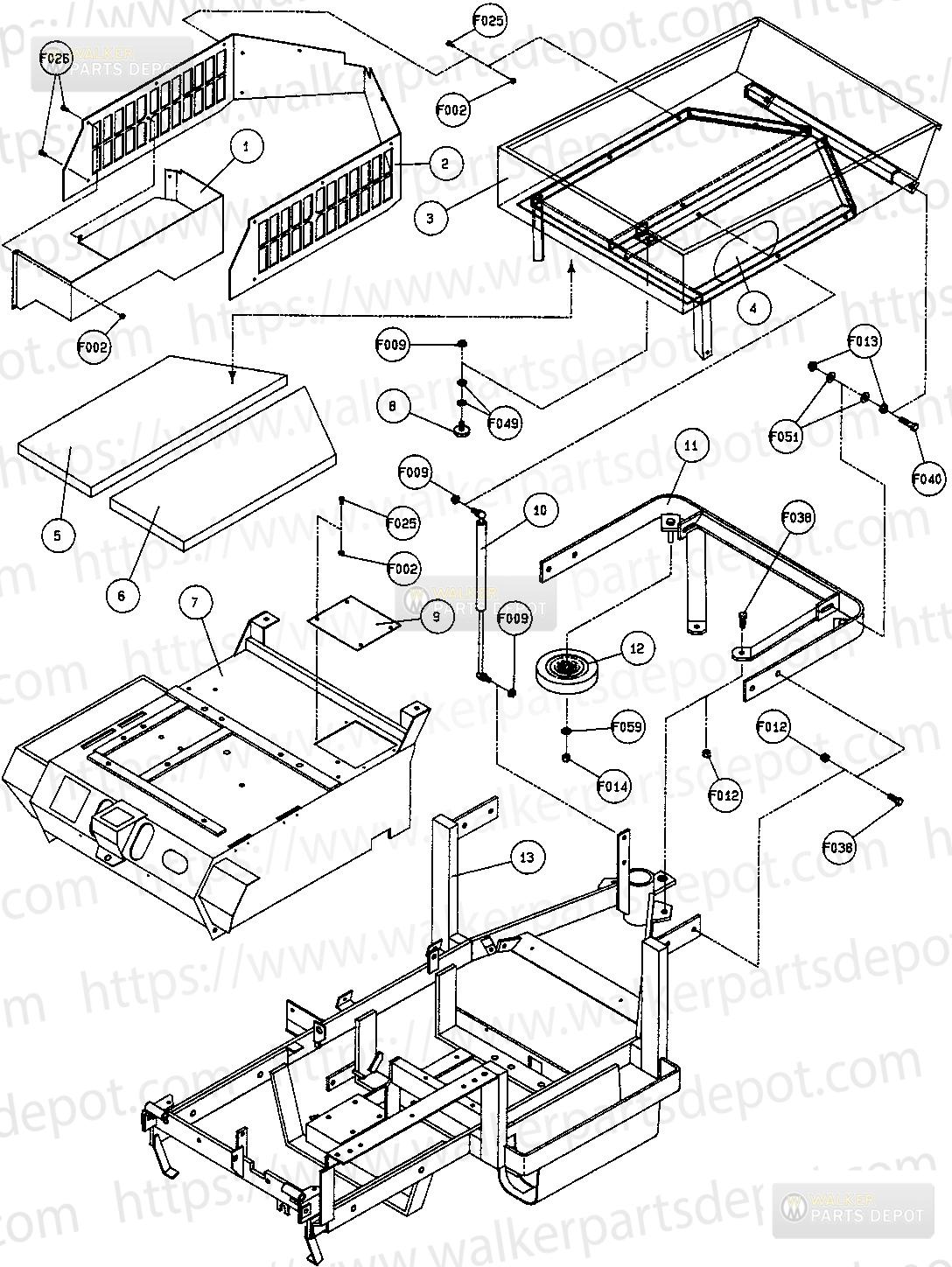

PARTS > MT MANUALS > 1993-03-01, 8895-1, Serial 12717-21328 > Rear Body Assembly (SD):

Diagram #	Part #	Description	Price	Add to Cart
1	8081	Muffler Heat Baffle	$36.72	Add to Cart
2	8105	Rear Body Panel/D	$59.89	Add to Cart
3	8650	(NR)Utility Bed (Preclean/TO-97-31199)	$342.21	Add to Cart
4	5800	"(NR) Decal Walker Mower/Lexan (4"" Round)"	$9.44	Add to Cart
5	7190-2	Insulation Foam Pad/RH	$19.23	Add to Cart
6	7190-1	Insulation Foam Pad/LH	$24.27	Add to Cart
7	8100	Front Body/T	$589.09	Add to Cart
8	7844	Rubber Bumper (1.25x.250)	$4.06	Add to Cart
9	7153-2	Cover Plate
10	7145	Gas Spring Assembly	$39.60	Add to Cart
11	7521	(NR) Rear Bumper EFI/TSD	$106.85	Add to Cart
12	5162	"Roller Wheel (5"" Rubber)"	$13.40	Add to Cart
13	8300	(NR) Chassis Frame/T	$797.03	Add to Cart
F002	F002	10-24 Keps Nut	$0.18	Add to Cart
F009	F009	5/16-18 Whiz Locknut	$0.50	Add to Cart
F012	F012	3/8-16 Keps Nut	$0.79	Add to Cart
F013	F013	3/8-16 Whiz Locknut	$0.65	Add to Cart
F014	F014	3/8-16 ESNA Nut	$0.65	Add to Cart
F025	F025	10-24x3/8 PPHMS	$0.18	Add to Cart
F026	F026	10-24x1/2 PPHMS	$0.18	Add to Cart
F038	F038	3/8-16x1 Hex Bolt	$1.06	Add to Cart
F040	F040	3/8-16x1-1/2 Hex Bolt	$1.54	Add to Cart
F049	F049	5/16 SAE Washer	$0.18	Add to Cart
F051	F051	3/8 SAE Washer	$0.65	Add to Cart
F059	F059	3/8 Wave Spring Washer	$1.32	Add to Cart
