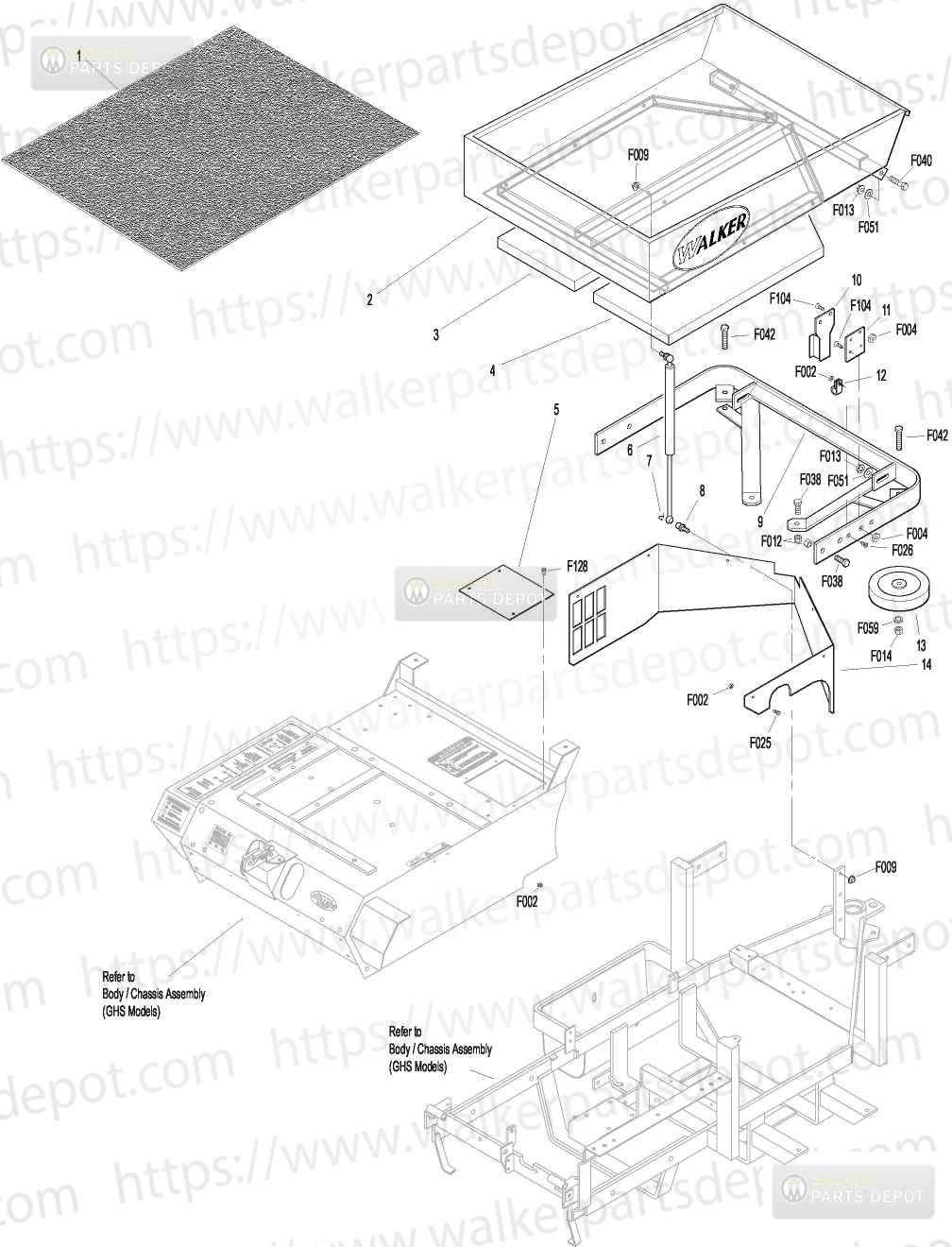

PARTS > MD MANUALS > 2003-05-12, 7000-5, Serial 60192-72867 > Rear Body Assembly (SD Models):

Diagram #	Part #	Description	Price	Add to Cart
1	8650-10	Bed Liner 215x275	$59.96	Add to Cart
2	7650-3	NR Utility BedD	$508.83	Add to Cart
3	7190-2	Insulation Foam PadRH	$19.23	Add to Cart
4	7190-1	Insulation Foam PadLH	$24.27	Add to Cart
5	7153-3	Cover Plate	$10.80	Add to Cart
6	7145	Gas Spring Assembly	$39.60	Add to Cart
7	7147	Spring Clip	$1.44	Add to Cart
8	7146	13mm Ball Stud	$4.92	Add to Cart
9	7521	NR Rear Bumper EFITSD	$106.89	Add to Cart
10	NS	Recovery Tank Mount (19449-72502 Kubota)
11	7047-5	Mount Plate	$11.42	Add to Cart
12	5832	Cable Clamp 12 203 Hole	$1.87	Add to Cart
13	5162	Roller Wheel 5 Rubber	$13.40	Add to Cart
14	7105-5	Rear Body PanelD	$46.68	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F012	3816 Keps Nut	$0.79	Add to Cart
	F013	3816 Whiz Locknut	$0.65	Add to Cart
	F014	3816 ESNA Nut	$0.65	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F026	1024x12 PPHMS	$0.18	Add to Cart
	F038	3816x1 Hex Bolt	$1.06	Add to Cart
	F040	3816x112 Hex Bolt	$1.54	Add to Cart
	F042	3816x214 Hex Bolt	$1.97	Add to Cart
	F051	38 SAE Washer	$0.65	Add to Cart
	F059	38 Wave Spring Washer	$1.32	Add to Cart
	F104	1420x34 PFH Bolt	$0.22	Add to Cart
	F128	1024x38 PTHMS	$0.29	Add to Cart
