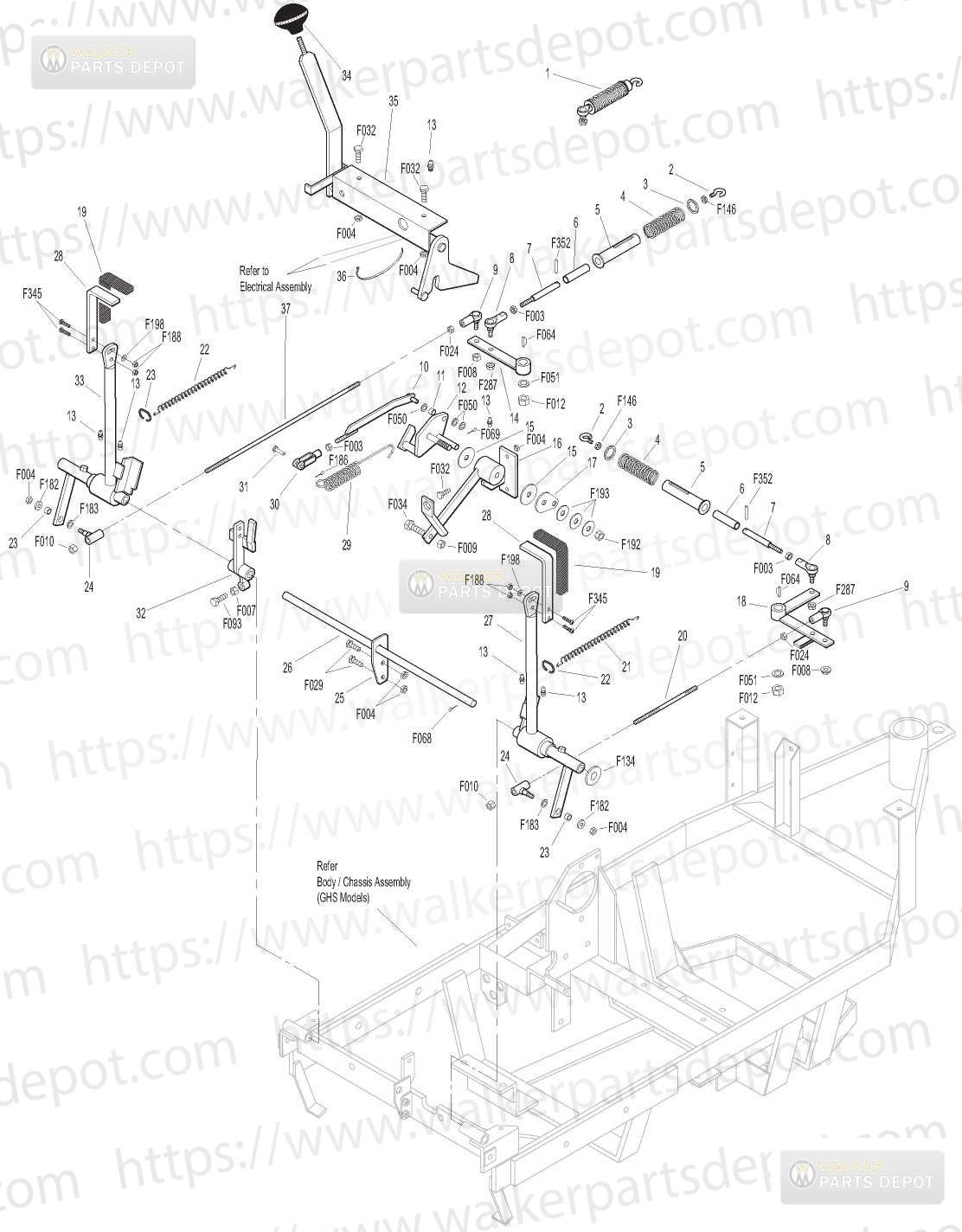

PARTS > MS MANUALS > 2004-03-02, 5000-12, Serial 60136-78321 > Steering Control Assemblies:
| Diagram # | Part # | Description | Price | Add to Cart |
| 1 | 5199 | NR Transmission Spg AssyLH RHS | $89.21 |
Add to Cart | | 2 | 5197 | JBolt | $5.95 |
Add to Cart | | 3 | 5193 | Washer 34x1x085 | $1.06 |
Add to Cart | | 4 | 5195 | Compress Spring 1x518 | $2.06 |
Add to Cart | | 5 | 5191 | Spring Slide 358 | $36.92 |
Add to Cart | | 6 | 5194 | Plunger Sleeve | $14.16 |
Add to Cart | | 7 | 5192-1 | Spring Plunger Male | $7.51 |
Add to Cart | | 8 | 5552 | Ball Joint 1428 | $14.92 |
Add to Cart | | 9 | 5214-2 | Ball Joint 51624 Nylon Lined | $13.02 |
Add to Cart | | 10 | 5173 | NR FSC Actuator Rod | $13.51 |
Add to Cart | | 11 | 5172 | Bearing Delrin 250x375x250 Length | $4.96 |
Add to Cart | | 12 | 5142-2 | NR FSC Actuator Cam 51403 For 8689 | $27.81 |
Add to Cart | | 13 | 5830 | Grease Fitting 1428 | $2.47 |
Add to Cart | | 14 | 5212 | Trans. Control Arm/RH | $14.76 |
Add to Cart | | 15 | 5141 | FSC Friction Washer 112x38x116 Delrin | $1.80 |
Add to Cart | | 16 | 5140 | NR FSC Friction Body 51403 For 8689 | $53.94 |
Add to Cart | | 17 | 5142-5 | FSC Key | $3.91 |
Add to Cart | | 5140-3 | NR FSC Control AssemblyS | $118.23 |
Add to Cart | | 18 | 5212-2 | NR Trans Control ArmLH | $34.34 |
Add to Cart | | 19 | 5850-2 | Handle Grip Foam 512 | $5.45 |
Add to Cart | | 20 | 5213-2 | Control Rod, LH (6?) | |
| | 21 | 5223 | Ext Spring 14x512 | $6.00 |
Add to Cart | | 22 | 5450 | DClip | $1.54 |
Add to Cart | | 23 | 5214-1 | NR Bearing 320x438x250 | $10.94 |
Add to Cart | | 24 | 5463 | Steering Lever Actuator | $11.36 |
Add to Cart | | 25 | 5391-3 | Steering Lever Support | $3.98 |
Add to Cart | | 26 | 5217 | Pivot Pin Steering Lever | $9.96 |
Add to Cart | | 27 | 5451-3 | Steering Lever Assembly, LH (Includes Items# 13,19, 28, F188, F198& F345) | |
| | 28 | 5453-10 | Steering Lvr Handle Adj | $11.42 |
Add to Cart | | 29 | 5219 | Extension Spg 34x634 | $6.76 |
Add to Cart | | 30 | 5280 | Clevis 14 | $13.52 |
Add to Cart | | 31 | 5281-5 | Clevis Pin 14x080 | $1.37 |
Add to Cart | | 32 | 5470-1 | Speed Control Stop/Gr.Drv | $24.09 |
Add to Cart | | 33 | 5450-3 | Steering Lever Assembly, RH (Includes Items# 13,19, 28, F188, F198& F345) | |
| | 5450-5 | Adjustable Steering Lever Arm, RH | |
| | 34 | 5862 | NR FSC Knob | $9.56 |
Add to Cart | | 35 | 7170 | NR FSC Lever Assembly | $71.27 |
Add to Cart | | 36 | 5975-3 | Cable Tie 50x7 | $0.36 |
Add to Cart | | 37 | 5213-1 | Control Rod, RH (15?) | |
| | F003 | 1428 Hex Nut | $0.18 |
Add to Cart | | F004 | 1420 Keps Nut | $0.34 |
Add to Cart | | F007 | 51618 Jam Nut | $0.34 |
Add to Cart | | F008 | 51624 Keps Nut | $0.79 |
Add to Cart | | F009 | 51618 Whiz Locknut | $0.50 |
Add to Cart | | F010 | 51624 ESNA Nut | $0.50 |
Add to Cart | | F012 | 3816 Keps Nut | $0.79 |
Add to Cart | | F024 | 51624 Jam Nut | $0.34 |
Add to Cart | | F029 | 1420x12 Hex Bolt | $0.50 |
Add to Cart | | F032 | 1420x34 Hex Bolt | $0.50 |
Add to Cart | | F034 | 51618x34 Hex Bolt | $0.79 |
Add to Cart | | F050 | 14 SAE Washer | $0.18 |
Add to Cart | | F051 | 38 SAE Washer | $0.65 |
Add to Cart | | F064 | 18x12 Woodruff Key 3 | $5.45 |
Add to Cart | | F068 | 18x1 Cotter Pin | $0.18 |
Add to Cart | | F069 | 332x12 Cotter Pin | $0.18 |
Add to Cart | | F093 | 51618x1 Hex Bolt | $0.94 |
Add to Cart | | F134 | AN960816L Washer | $0.65 |
Add to Cart | | F146 | 1420 Jam Nut | $0.18 |
Add to Cart | | F182 | 14x58x18 Washer | $1.20 |
Add to Cart | | F183 | 312x700x074 Washer | $0.58 |
Add to Cart | | F186 | 564x12 Cotter Pin | $0.18 |
Add to Cart | | F188 | 1420 SelfLocking Nut | $0.30 |
Add to Cart | | F192 | 3824 SelfLocking Nut | $1.14 |
Add to Cart | | F193 | 38 Belleville Spg Washer | $2.62 |
Add to Cart | | F198 | 250x625x040 WasherSS | $0.79 |
Add to Cart | | F287 | 1428 Keps Nut | $0.65 |
Add to Cart | | F345 | 1420x770 Knurled Bolt | $1.68 |
Add to Cart | | F352 | 532x1 Hvy Duty Roll Pin | $0.90 |
Add to Cart |
