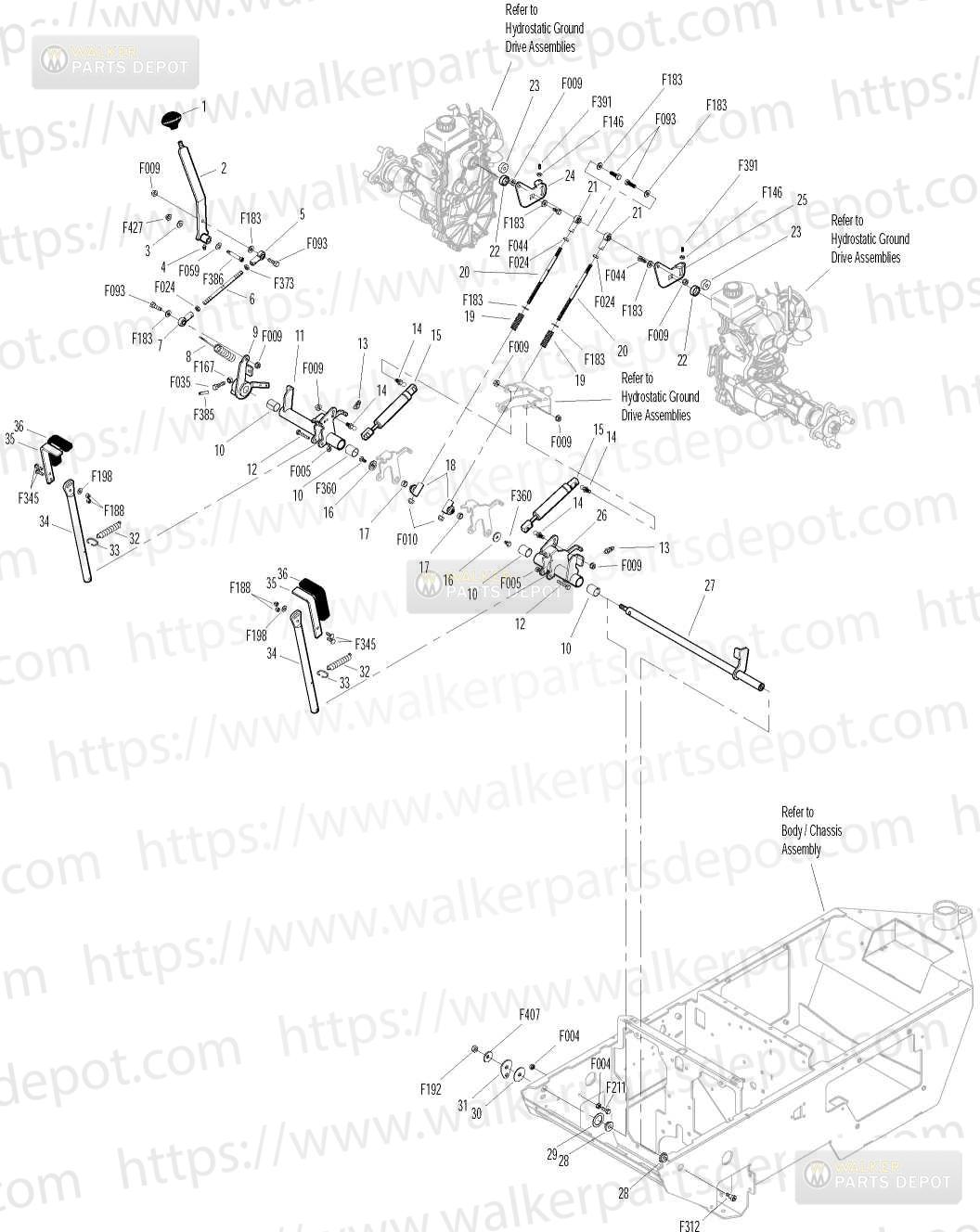

PARTS > MS MANUALS > 2014-05-05, 5000-27, Serial 128442-144526 > Steering Control Assemblies:

Diagram #	Part #	Description	Price	Add to Cart
1	5862	NR FSC Knob	$9.56	Add to Cart
2	4170	NR FSC Lever Assembly	$52.27	Add to Cart
3	2170-1	NR Step Washer	$6.91	Add to Cart
4	5830	Grease Fitting 1428	$2.47	Add to Cart
5	5214-5	Ball Jnt 51624LH WO Stud	$12.43	Add to Cart
6	4173-1	Control Rod 41516 RH BOTH ENDS	$9.05	Add to Cart
7	5214	Ball Joint 51624	$11.31	Add to Cart
8	4219	Extension Spg 34x612	$11.20	Add to Cart
9	4451-9	NR FSC Friction Actuator For Delta Switch	$49.54	Add to Cart
10	8201-3	Fiberglide Bearing	$13.74	Add to Cart
11	6451-2	Speed Control ActuatorRH MSMB	$67.52	Add to Cart
12	4452-6	Steering Pivot 1420x158	$2.71	Add to Cart
13	5830-3	Grease Fitting 45 Deg	$4.04	Add to Cart
14	5146	10mm Ball Stud	$3.77	Add to Cart
15	2215-7	Steering Lever Spring, Dampener
16	2463	Actuator Washer	$11.33	Add to Cart
17	7201-2	Fiberglide Bearing 12	$6.70	Add to Cart
18	5463-2	Steering Lever Actuator Clear Zinc	$21.87	Add to Cart
19	5665-1	Compression Sprg 212	$4.68	Add to Cart
20	4213-2	Control Rod 634	$13.94	Add to Cart
21	5214-4	Ball Jnt 51624 WO Stud	$12.43	Add to Cart
22	2212-3	Seal Retainer	$8.86	Add to Cart
23	2212	Trans Control Arm Stop	$11.38	Add to Cart
24	6212-2	Transmission Control ArmRH	$11.38	Add to Cart
25	6212-3	Transmission Control ArmLH	$11.38	Add to Cart
26	6451-1	Speed Control ActuatorLH MSMB	$112.67	Add to Cart
27	4451-1	Steering Pvt Shaft WStop	$41.82	Add to Cart
28	9704-3	Pivot Rod BushingPlastic	$7.70	Add to Cart
29	4142-2	FSC Friction Washer 112x1132x116	$3.58	Add to Cart
30	5141	FSC Friction Washer 112x38x116 Delrin	$1.80	Add to Cart
31	4142-1	FSC Cam	$4.75	Add to Cart
32	5222	Ext Spring 12x314	$6.82	Add to Cart
33	5450	DClip	$1.54	Add to Cart
34	6452-1	Steering Lever Tube W/Tab
35	5453-10	Steering Lvr Handle Adj	$11.42	Add to Cart
36	5850-2	Handle Grip Foam 512	$5.45	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F005	1420 ESNA Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F010	51624 ESNA Nut	$0.50	Add to Cart
	F024	51624 Jam Nut	$0.34	Add to Cart
	F035	51618x114 Hex Bolt	$0.94	Add to Cart
	F044	51624x34 Hex Bolt	$0.79	Add to Cart
	F059	38 Wave Spring Washer	$1.32	Add to Cart
	F093	51618x1 Hex Bolt	$0.94	Add to Cart
	F146	1420 Jam Nut	$0.18	Add to Cart
	F167	51618 Hex Nut	$0.34	Add to Cart
	F183	312x700x074 Washer	$0.58	Add to Cart
	F188	1420 SelfLocking Nut	$0.30	Add to Cart
	F192	3824 SelfLocking Nut	$1.14	Add to Cart
	F198	250x625x040 WasherSS	$0.79	Add to Cart
	F211	1420x78 Hex Bolt	$0.65	Add to Cart
	F312	38x38 Shoulder Bolt	$3.50	Add to Cart
	F345	1420x770 Knurled Bolt	$1.68	Add to Cart
	F360	1420x38 Hex Bolt	$0.94	Add to Cart
	F373	51624 Hex NutLH	$2.45	Add to Cart
	F385	14x114 Roll Pin	$1.14	Add to Cart
	F386	51618x112x38 Shoulder Bolt	$5.04	Add to Cart
	F391	1420x12 Set ScrewSS	$0.79	Add to Cart
	F407	Belleville Wshr 38x1187 SS	$4.51	Add to Cart
	F427	51618 Flange Nut	$1.30	Add to Cart
