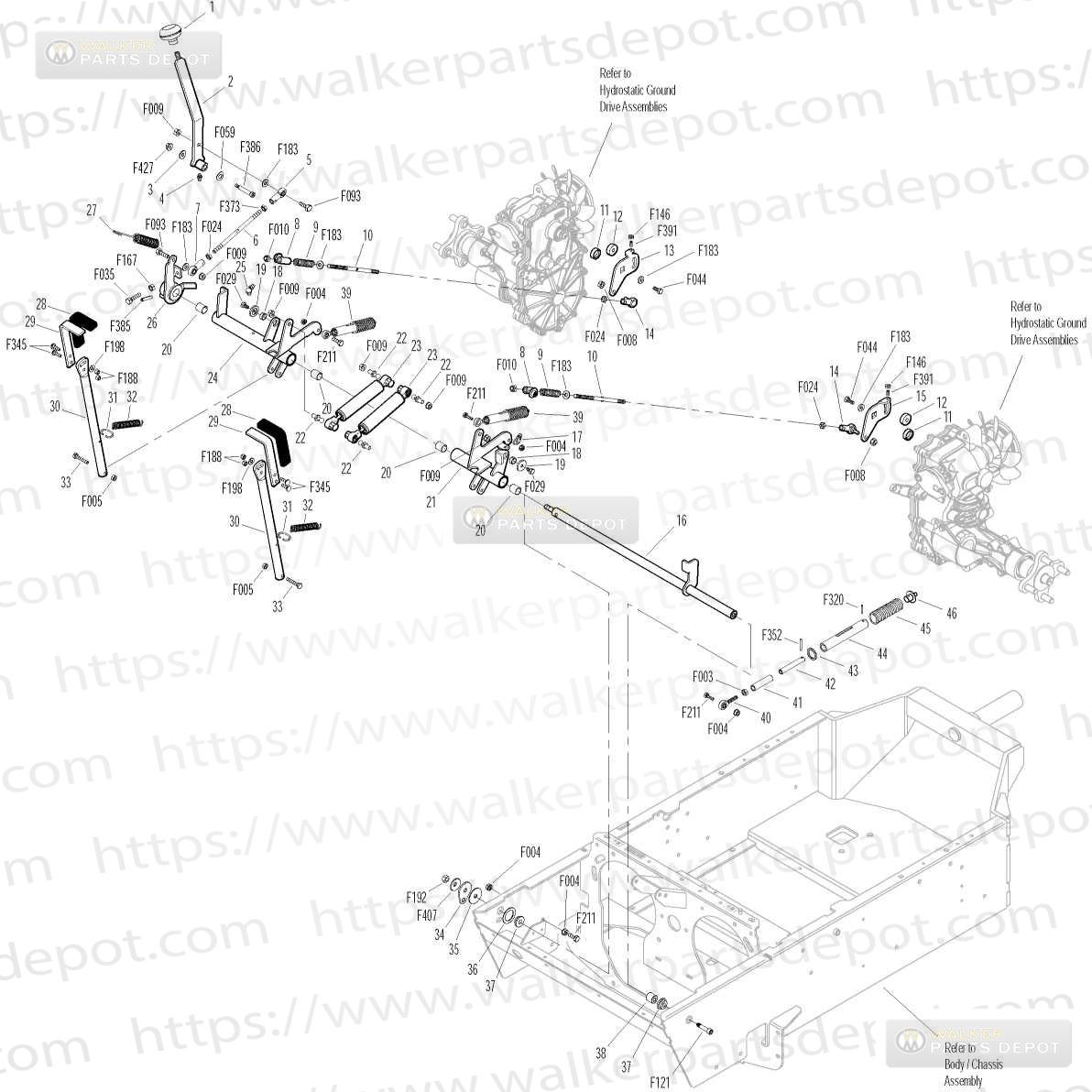

PARTS > MH MANUALS > 2014-09-05, 2000-8, Serial 124882-AND ON > Steering Control Assemblies:

Diagram #	Part #	Description	Price	Add to Cart
1	5862	NR FSC Knob	$9.56	Add to Cart
2	4170	NR FSC Lever Assembly	$52.27	Add to Cart
3	2170-1	NR Step Washer	$6.91	Add to Cart
4	5830	Grease Fitting 1428	$2.47	Add to Cart
5	5214-5	Ball Jnt 51624LH WO Stud	$12.43	Add to Cart
6	4213	Control Rod 614	$5.11	Add to Cart
7	5214-4	Ball Jnt 51624 WO Stud	$12.43	Add to Cart
8	5463-2	Steering Lever Actuator Clear Zinc	$21.87	Add to Cart
9	5665-1	Compression Sprg 212	$4.68	Add to Cart
10	2213	Control Rod 7	$6.00	Add to Cart
11	2212-3	Seal Retainer	$8.86	Add to Cart
12	2212	Trans Control Arm Stop	$11.38	Add to Cart
13	2212-2	Trans Control ArmRH	$10.66	Add to Cart
14	5214-2	Ball Joint 51624 Nylon Lined	$13.02	Add to Cart
15	2212-1	Trans Control ArmLH	$10.66	Add to Cart
16	2451-1	Steering Pvt Shaft WStop	$63.88	Add to Cart
17	5830-3	Grease Fitting 45 Deg	$4.04	Add to Cart
18	7201-2	Fiberglide Bearing 12	$6.70	Add to Cart
19	2463	Actuator Washer	$11.33	Add to Cart
20	8201-3	Fiberglide Bearing	$13.74	Add to Cart
21	2451-5	Speed Control ActuatorLH	$57.58	Add to Cart
22	5146	10mm Ball Stud	$3.77	Add to Cart
23	2215-5	Steering Lever Dampener	$29.22	Add to Cart
24	2451-6	Speed Control ActuatorRH	$58.72	Add to Cart
25	5830-4	Grease Fitting 90 Deg	$4.32	Add to Cart
26	4451-4	NR FSC Friction Actuator	$25.39	Add to Cart
27	4219	Extension Spg 34x612	$11.20	Add to Cart
28	5850-2	Handle Grip Foam 512	$5.45	Add to Cart
29	5453-20	NR Steerng Lvr Hndl1AdjSS	$12.54	Add to Cart
30	4452-4	Steering Lever Tube WTab	$20.57	Add to Cart
31	5450	DClip	$1.54	Add to Cart
32	5222	Ext Spring 12x314	$6.82	Add to Cart
33	4452-6	Steering Pivot 1420x158	$2.71	Add to Cart
34	4142-1	FSC Cam	$4.75	Add to Cart
35	5141	FSC Friction Washer 112x38x116 Delrin	$1.80	Add to Cart
36	4142-2	FSC Friction Washer 112x1132x116	$3.58	Add to Cart
37	9704-3	Pivot Rod BushingPlastic	$7.70	Add to Cart
38	2451-4	Steering Shaft Spacer 750x375x713	$8.76	Add to Cart
39	4199	NR Transmission Spg Assy	$84.82	Add to Cart
40	4552	Ball Joint 1428	$11.15	Add to Cart
41	5194	Plunger Sleeve	$14.16	Add to Cart
42	5192-2	NR Spring Plunger Female	$7.80	Add to Cart
43	5193	Washer 34x1x085	$1.06	Add to Cart
44	6191	Spring Slide 434	$17.53	Add to Cart
45	5195	Compress Spring 1x518	$2.06	Add to Cart
46	6196	Spring Slide Cap	$11.95	Add to Cart
	F003	1428 Hex Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F005	1420 ESNA Nut	$0.34	Add to Cart
	F008	51624 Keps Nut	$0.79	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F010	51624 ESNA Nut	$0.50	Add to Cart
	F024	51624 Jam Nut	$0.34	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F035	51618x114 Hex Bolt	$0.94	Add to Cart
	F044	51624x34 Hex Bolt	$0.79	Add to Cart
	F059	38 Wave Spring Washer	$1.32	Add to Cart
	F093	51618x1 Hex Bolt	$0.94	Add to Cart
	F121	51618x38 x1 SHL Bolt	$4.51	Add to Cart
	F146	1420 Jam Nut	$0.18	Add to Cart
	F167	51618 Hex Nut	$0.34	Add to Cart
	F183	312x700x074 Washer	$0.58	Add to Cart
	F188	1420 SelfLocking Nut	$0.30	Add to Cart
	F192	3824 SelfLocking Nut	$1.14	Add to Cart
	F198	250x625x040 WasherSS	$0.79	Add to Cart
	F211	1420x78 Hex Bolt	$0.65	Add to Cart
	F320	18x34 Split Spring Pin	$0.29	Add to Cart
	F345	1420x770 Knurled Bolt	$1.68	Add to Cart
	F352	532x1 Hvy Duty Roll Pin	$0.90	Add to Cart
	F373	51624 Hex NutLH	$2.45	Add to Cart
	F385	14x114 Roll Pin	$1.14	Add to Cart
	F386	51618x112x38 Shoulder Bolt	$5.04	Add to Cart
	F391	1420x12 Set ScrewSS	$0.79	Add to Cart
	F407	Belleville Wshr 38x1187 SS	$4.51	Add to Cart
	F427	51618 Flange Nut	$1.30	Add to Cart
