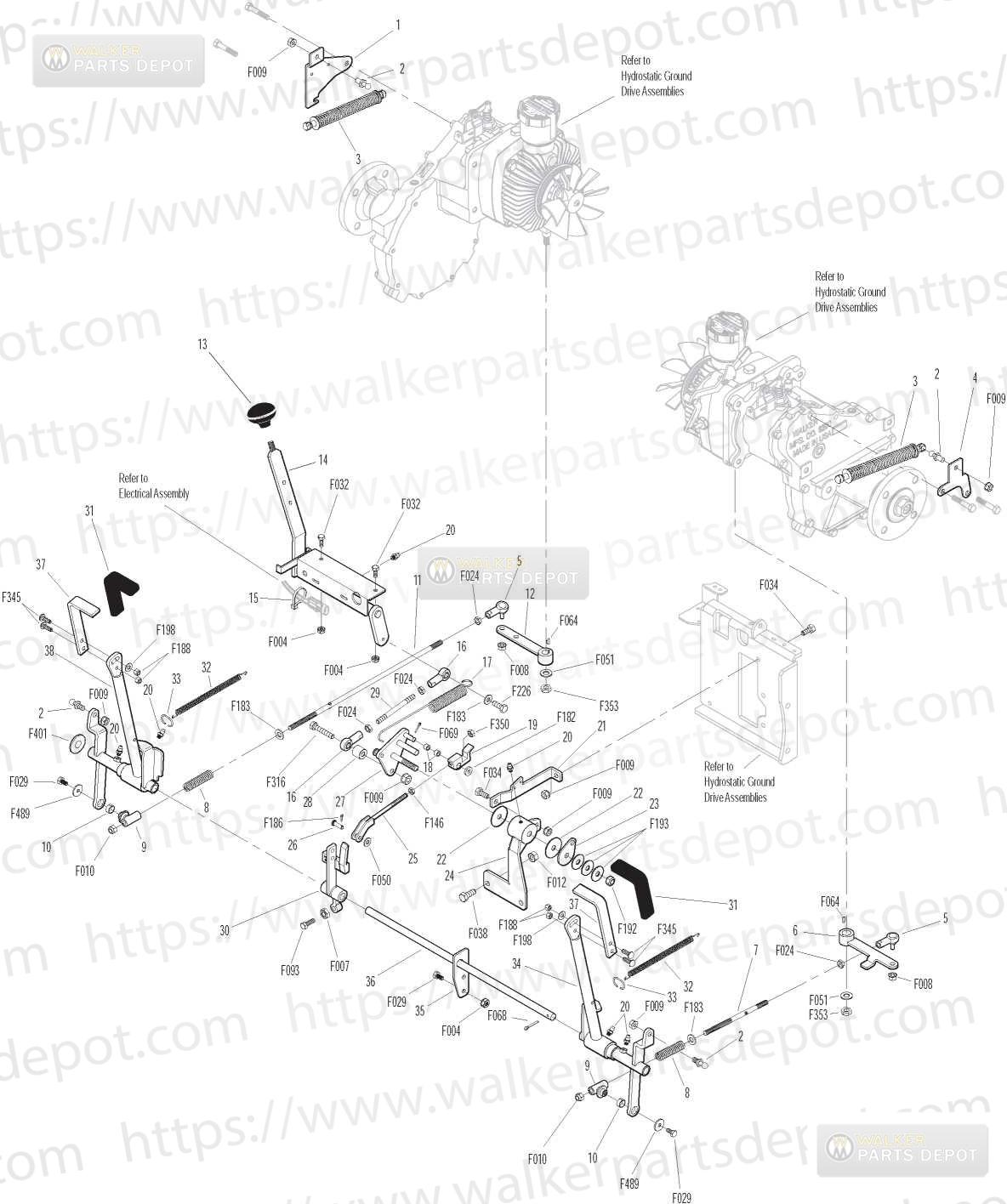

PARTS > MT MANUALS > 2015-05-01, 8000-23, Serial 134121-148520 > Steering Control Assemblies:

Diagram #	Part #	Description	Price	Add to Cart
1	6201-2	Shock Mount Gear DriveRH	$14.48	Add to Cart
2	5146	10mm Ball Stud	$3.77	Add to Cart
3	5199-3	Steering Lever Dampener Assy	$39.24	Add to Cart
4	6201-1	Shock Mount Gear DriveLH	$12.53	Add to Cart
5	5214-2	Ball Joint 51624 Nylon Lined	$13.02	Add to Cart
6	6212-1	Trans. Control Arm/LH	$17.78	Add to Cart
7	5213-3	Control Rod 6	$10.44	Add to Cart
8	5665-1	Compression Sprg 212	$4.68	Add to Cart
9	5463-2	Steering Lever Actuator Clear Zinc	$21.87	Add to Cart
10	7201-2	Fiberglide Bearing 12	$6.70	Add to Cart
11	5213-4	Control Rod 1434	$11.41	Add to Cart
12	5212	Trans. Control Arm/RH	$14.76	Add to Cart
13	5862	NR FSC Knob	$9.56	Add to Cart
14	7170-1	NR FSC Lever Assembly	$82.07	Add to Cart
15	5975-3	Cable Tie 50x7	$0.36	Add to Cart
16	5214-4	Ball Jnt 51624 WO Stud	$12.43	Add to Cart
17	5219	Extension Spg 34x634	$6.76	Add to Cart
18	5172	Bearing Delrin 250x375x250 Length	$4.96	Add to Cart
19	5141-1	FSC Actuator Block	$10.31	Add to Cart
20	5830	Grease Fitting 1428	$2.47	Add to Cart
21	5140-9	FSC Brace	$11.82	Add to Cart
22	5141	FSC Friction Washer 112x38x116 Delrin	$1.80	Add to Cart
23	5142-8	FSC Key	$5.66	Add to Cart
	5140-12	NR FSC Control Assembly	$84.34	Add to Cart
24	5140-30	FSC Friction Body	$31.13	Add to Cart
25	5141-2	FSC Actuator Rod	$19.51	Add to Cart
26	5281-5	Clevis Pin 14x080	$1.37	Add to Cart
27	5142-9	FSC Actuator Cam	$29.30	Add to Cart
28	51 41 -3	Spacer
29	5141-4	FSC Rod	$4.37	Add to Cart
30	5470-1	Speed Control Stop/Gr.Drv	$24.09	Add to Cart
31	5850-2	Handle Grip Foam 512	$5.45	Add to Cart
32	5223	Ext Spring 14x512	$6.00	Add to Cart
33	5450	DClip	$1.54	Add to Cart
34	5451-10	Steering Lever Arm LH	$76.69	Add to Cart
	5451-7	Steering Lever Arm, LH / Adjustable
35	5391-3	Steering Lever Support	$3.98	Add to Cart
36	5217	Pivot Pin Steering Lever	$9.96	Add to Cart
37	5453-10	Steering Lvr Handle Adj	$11.42	Add to Cart
38	5450-10	Steering Lever Arm RH	$76.65	Add to Cart
	5450-7	Steering Lever Arm, RH / Adjustable
	F004	1420 Keps Nut	$0.34	Add to Cart
	F007	51618 Jam Nut	$0.34	Add to Cart
	F008	51624 Keps Nut	$0.79	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F010	51624 ESNA Nut	$0.50	Add to Cart
	F012	3816 Keps Nut	$0.79	Add to Cart
	F024	51624 Jam Nut	$0.34	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F032	1420x34 Hex Bolt	$0.50	Add to Cart
	F034	51618x34 Hex Bolt	$0.79	Add to Cart
	F038	3816x1 Hex Bolt	$1.06	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F051	38 SAE Washer	$0.65	Add to Cart
	F064	18x12 Woodruff Key 3	$5.45	Add to Cart
	F068	18x1 Cotter Pin	$0.18	Add to Cart
	F069	332x12 Cotter Pin	$0.18	Add to Cart
	F093	51618x1 Hex Bolt	$0.94	Add to Cart
	F146	1420 Jam Nut	$0.18	Add to Cart
	F182	14x58x18 Washer	$1.20	Add to Cart
	F183	312x700x074 Washer	$0.58	Add to Cart
	F186	564x12 Cotter Pin	$0.18	Add to Cart
	F188	1420 SelfLocking Nut	$0.30	Add to Cart
	F192	3824 SelfLocking Nut	$1.14	Add to Cart
	F193	38 Belleville Spg Washer	$2.62	Add to Cart
	F198	250x625x040 WasherSS	$0.79	Add to Cart
	F226	51618x78 Hex Bolt	$0.78	Add to Cart
	F316	51618x134 Hex Bolt	$1.08	Add to Cart
	F345	1420x770 Knurled Bolt	$1.68	Add to Cart
	F350	1420 LP Nylock	$0.65	Add to Cart
	F353	3816 ESNA LP Nut	$0.50	Add to Cart
	F401	504x751x030 Washer	$0.65	Add to Cart
	F489	Washer 14x78x090	$2.18	Add to Cart
