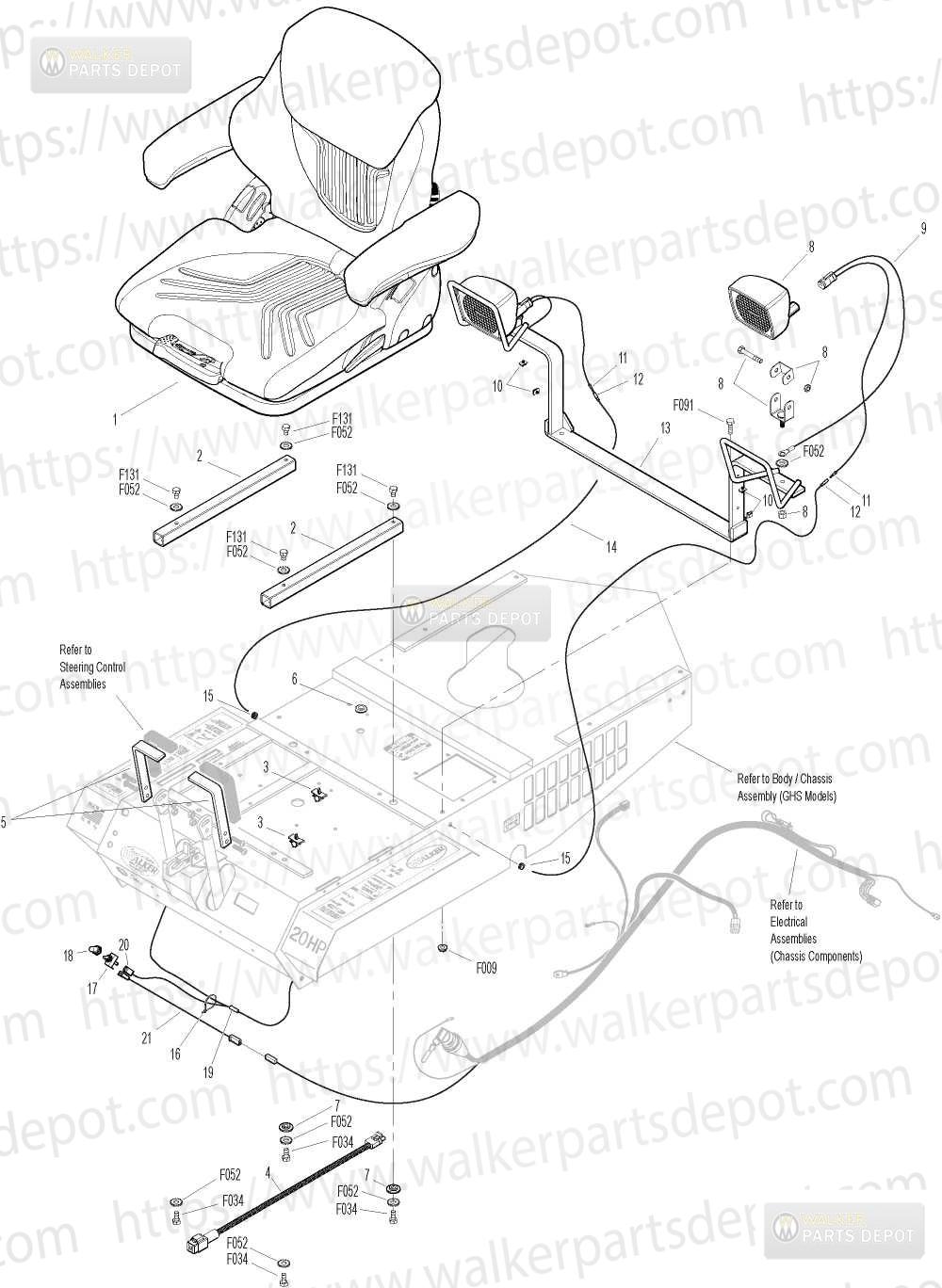

PARTS > MC MANUALS > 2006-09-01, 6000-12, Serial 85835-100981 > Suspension Seat Kit:

Diagram #	Part #	Description	Price	Add to Cart
1	6103-14	Suspension Seat	$1,069.00	Add to Cart
2	6103-21	Suspension Seat Mount
3	6105-3	Harness Clip	$2.88	Add to Cart
4	6103-19	Adapter Harness	$37.62	Add to Cart
5	5453-20	NR Steerng Lvr Hndl1AdjSS	$12.54	Add to Cart
6	5977-3	Grommet 916	$1.87	Add to Cart
7	6105-1	Shoulder Washer	$9.86	Add to Cart
8	7989-2	Light Assembly Halogen	$48.00	Add to Cart
	7989-6	Bulb Replacemnt Halogen	$10.54	Add to Cart
9	7989-3	NR Wire Harness ExtHalogen	$11.64	Add to Cart
10	7834-2	Wire Saddle 2 Wires	$0.90	Add to Cart
11	5996-4	1614 GA Bullet Cntr M Insulated 59965 F	$0.79	Add to Cart
12	5996-5	1614 GA Bullet Cntr F Insulated 59964 M	$0.94	Add to Cart
13	7993-1	Mount Bracket- Lights	$67.66	Add to Cart
14	7995-4	Power Lead Wire Assembly	$12.72	Add to Cart
15	5977-1	Grommet 18x38	$0.79	Add to Cart
16	5975-1	Cable Tie 18x334	$0.34	Add to Cart
17	5995	Toggle Switch OffOn	$14.16	Add to Cart
18	5995-2	Switch Boot	$5.26	Add to Cart
19	5996-1	1614 GA Butt Connector	$0.94	Add to Cart
20	5996	14x1614 GA QDF Terminal Fully Insulated	$1.18	Add to Cart
21	6940-10	Jumper Wire	$5.78	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F034	51618x34 Hex Bolt	$0.79	Add to Cart
	F052	516 Ext Star Lock Wshr	$0.18	Add to Cart
	F091	51618x58 Hex Bolt	$0.65	Add to Cart
	F131	51618x12 Hex Bolt	$0.79	Add to Cart
