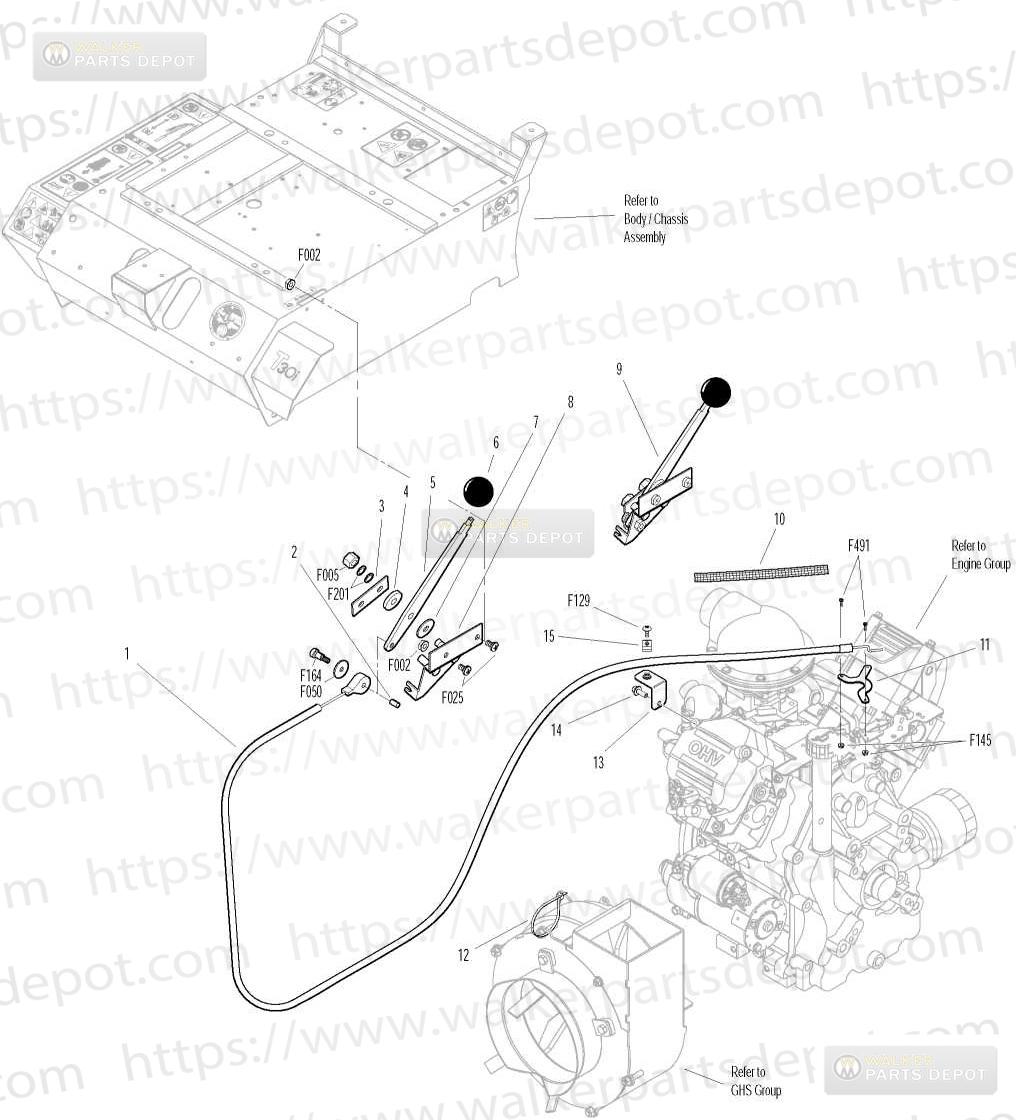

PARTS > MT MANUALS > 2013-10-07, 8000-19, Serial 124884-147168 > Throttle Control Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	8108-3	NR Throttle Cable	$22.90	Add to Cart
2	5172	Bearing Delrin 250x375x250 Length	$4.96	Add to Cart
3	5108-7	Control Lock Tab	$2.52	Add to Cart
4	5108-10	Friction Washer 125	$1.98	Add to Cart
5	5108-1	Control LeverThrottleChoke	$4.44	Add to Cart
6	5108-5	NR Throttle Cntrl KnobRed	$6.05	Add to Cart
7	5108-11	Friction Washer 062	$1.44	Add to Cart
8	5108-8	Control Bracket	$9.26	Add to Cart
9	7108	Control Assembly	$30.21	Add to Cart
	8108	NR Throttle CntrlCable Assy	$79.59	Add to Cart
10	8123	Insulating Sleeve 38x6	$3.26	Add to Cart
11	8108-8	NR Throttle Bracket	$5.88	Add to Cart
12	5975-1	Cable Tie 18x334	$0.34	Add to Cart
13	8108-9	Cable Mount	$8.30	Add to Cart
14	NS	Bolt (Kohler)
15	NS	Wire Clamp
	F002	1024 Keps Nut	$0.18	Add to Cart
	F005	1420 ESNA Nut	$0.34	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F129	1024x12 PTHMS	$0.34	Add to Cart
	F145	440 Keps Nut	$0.22	Add to Cart
	F164	1024x14x38 SHL Bolt	$2.95	Add to Cart
	F201	SU F642 1 4 Belleville Spg Washer	$1.75	Add to Cart
	F491	440x38 PPHMS	$0.17	Add to Cart
