PARTS > MD MANUALS > 1993-03-01, 7895-1, Serial 11756-29675 > Unique Parts - MDG:

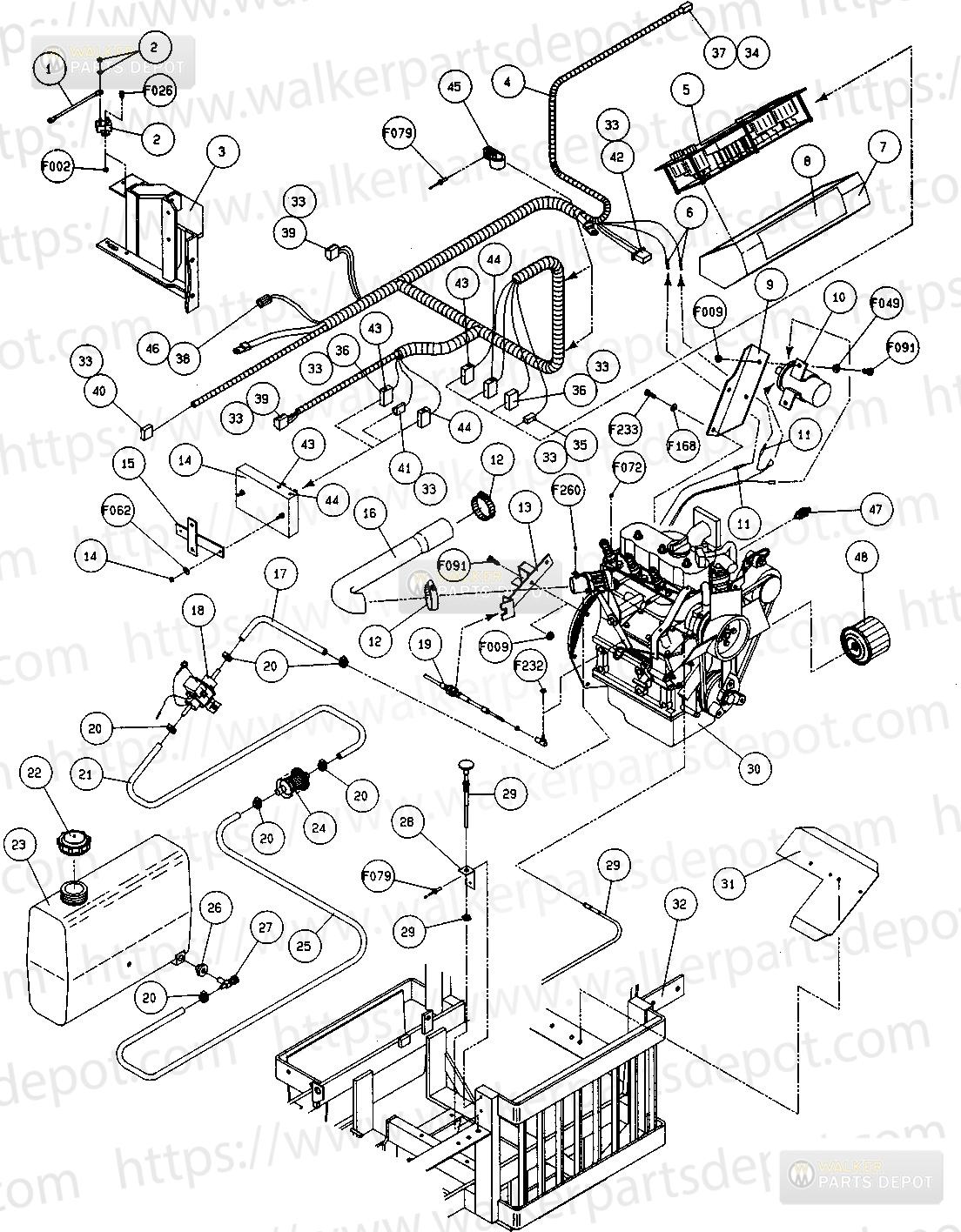

Diagram #	Part #	Description	Price	Add to Cart
1	8943	Battery Lead Wire	$5.78	Add to Cart
2	8941	Circuit Breaker 30Amp Auto ResetSealed	$11.00	Add to Cart
3	7209	Bridge Assembly (MD/MT)
4	7945	Wire Harness Assembly (MDG)
5	7306	Instrument Panel (Less Glow Plug Light)
6	5996-5	1614 GA Bullet Cntr F Insulated 59964 M	$0.94	Add to Cart
7	7385	Panel Box
8	7825	Walker Decal
9	7392	Coil Mount	$15.44	Add to Cart
10	NS	Coil (12581-68900 Kubota)
11	5996-4	1614 GA Bullet Cntr M Insulated 59965 F	$0.79	Add to Cart
12	7840	Hose Clamp 1516 214	$4.13	Add to Cart
13	7347	NR Throttle Cable Mount Brkt	$16.37	Add to Cart
14	7306-2	Control Module (MDG)
15	7210	Module Mount (MDG)
16	7019	NR Air Intake Hose	$29.90	Add to Cart
17	7015-5	NR Hose 516x36	$15.05	Add to Cart
18	NS	Fuel Pump (68371-51210 Kubota)
19	7220	Throttle Cable	$178.92	Add to Cart
20	7840-2	Hose Clamp 14 to 58	$3.50	Add to Cart
21	7015-1	NR Hose 516x5	$5.50	Add to Cart
22	5082	Fuel Tank Cap
23	6046	Fuel Tank (3 Gallon Molded)
24	7020	Fuel FilterInLine	$6.11	Add to Cart
25	7015	NR Hose 14x15	$11.44	Add to Cart
26	5083-1	Bushing Rubber Fits 5083	$2.47	Add to Cart
27	5083	Fuel ShutOff Valve	$16.12	Add to Cart
28	7111	NR Choke Mount Bracket	$6.26	Add to Cart
29	7109	Choke Control Cable	$37.11	Add to Cart
30	NS	Kubota Engine, Gas (WG600-B Kubota)
31	7389-1	Splash Guard	$16.50	Add to Cart
32	7300	Chassis Frame (MD)
33	5940-4	1614 GA Spg Ldd TermF	$1.67	Add to Cart
34	5940-5	1614 GA Spg Loaded Term M	$1.75	Add to Cart
35	7942-4	NR Single Connector M	$2.71	Add to Cart
36	7942-8	8Way Connector M	$2.88	Add to Cart
37	7942-3	2Way Connector F	$3.79	Add to Cart
38	7942-5	5Way Connector M	$3.50	Add to Cart
39	7942-6	6Way Connector M	$3.05	Add to Cart
40	7942-2	2Way Connector M	$4.32	Add to Cart
41	7942-9	3Way Connector M	$4.08	Add to Cart
42	7942-7	NR 6Way Connector M	$3.84	Add to Cart
43	7821-2	Color Code Dot, Red
44	7821-1	Color Code Dot, White
45	7833	Cable Clamp 78x14	$2.72	Add to Cart
46	5940-7	NR Wire Clip F 79408940	$2.47	Add to Cart
47	7306-4	Water Temperature Sender Unit
48	7023	Oil Filter SpinOn	$23.45	Add to Cart
F002	F002	1024 Keps Nut	$0.18	Add to Cart
F009	F009	51618 Whiz Locknut	$0.50	Add to Cart
F026	F026	1024x12 PPHMS	$0.18	Add to Cart
F049	F049	516 SAE Washer	$0.18	Add to Cart
F062	F062	8 Int Star Lock Wshr	$0.18	Add to Cart
F072	F072	14 E Retainer Ring	$0.34	Add to Cart
F079	F079	66AAD Alum Pop Rivet 316 Diax 38 Grip	$0.65	Add to Cart
F091	F091	51618x58 Hex Bolt	$0.65	Add to Cart
F168	F168	516 Split Lock Washer	$0.18	Add to Cart
F232	F232	1032 Keps Nut	$0.50	Add to Cart
F233	F233	M8 X 1.25 X 16 Hex Bolt
F260	F260	M4x7x6 PPHMS	$0.34	Add to Cart
